Запчасти Case IH CPX610 (04-15) - HARNESS, POWER GUIDE AXLES (06) - ELECTRICAL SYSTEMS

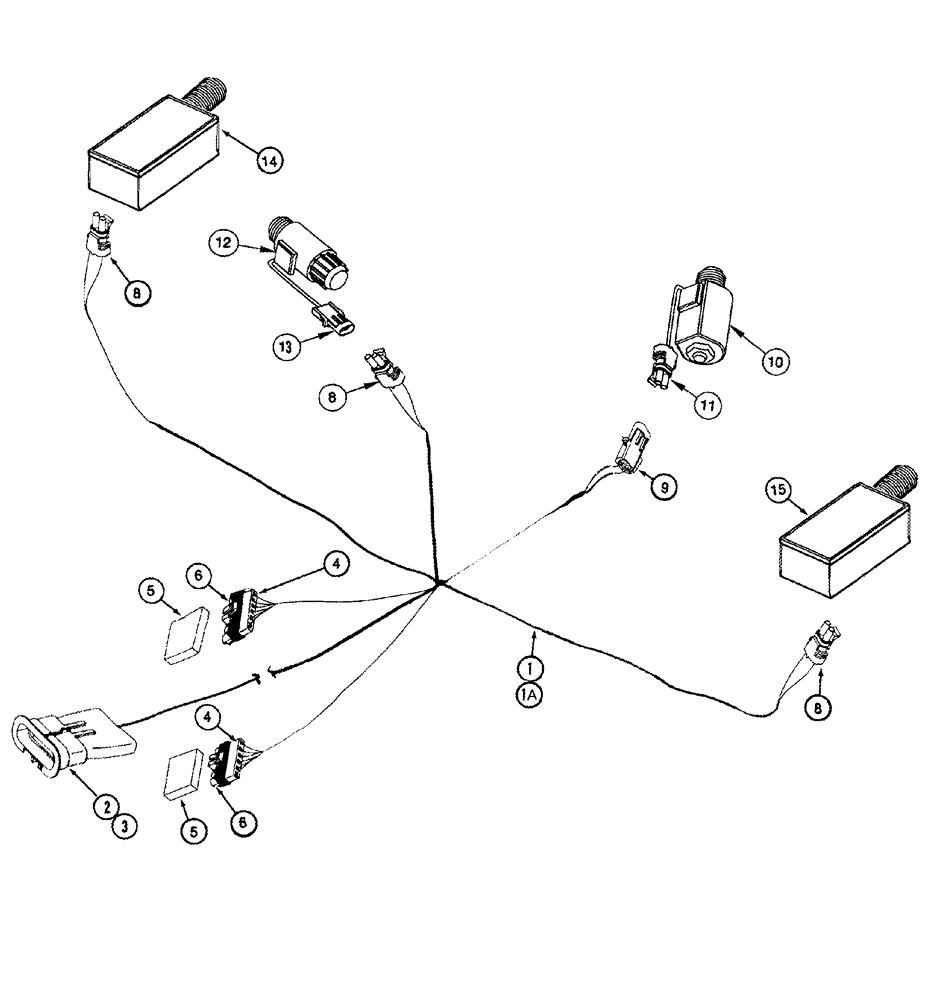

Схема запчастей Case IH CPX610 - (04-15) - HARNESS, POWER GUIDE AXLES (06) - ELECTRICAL SYSTEMS
5
2
5
4
1
10
8
6
4
8
9
1a
14
6
13
3
12
15
11
8

Артикул

Название

Примечание

Количество

1

302313A1

HARNESS

Power Guide Axle, 80 - 90 inch Axles, Two Speed, Inc. 2 - 9

1шт.

1a

409789A1

HARNESS

Power Guide Axle, 108 inch Axle, Two Speed, Inc. 2 - 9

1шт.

2

182075A1

CONNECTOR, ELEC

CONNECTOR Lock

1шт.

3

182076A1

CONNECTOR, ELEC

CONNECTOR

1шт.

4

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR

2шт.

5

187308A1

CAP

2шт.

6

194976A1

BAR

1шт.

7

187309A1

BAR

1шт.

8

245482A1

CONNECTOR, ELEC

CONNECTOR

3шт.

9

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

10

437119A3

SOLENOID VALVE

On/Off, Inc. 10A

1шт.

10a

437120A2

COIL

On/Off, Not Illustrated

1шт.

11

245482C1

ELEC CONNECTOR,2 Pin

1шт.

12

437121A2

SOLENOID VALVE

By-Pass

1шт.

12a

437122A1

COIL

By-Pass, Not Illustrated

1шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

14

NSS

NOT SOLD SEPARAT

SOLENOID, Right Hand, Two Speed

1шт.

15

NSS

NOT SOLD SEPARAT

SOLENOID, Left Hand, Two Speed

1шт.

1345300C1

KIT

Solenoid, 4 Wheel Drive, On/Off

1шт.

Выбрано товаров: 19
