Запчасти Case IH CPX610 (04-14) - CONTROLS PROPULSION (06) - ELECTRICAL SYSTEMS

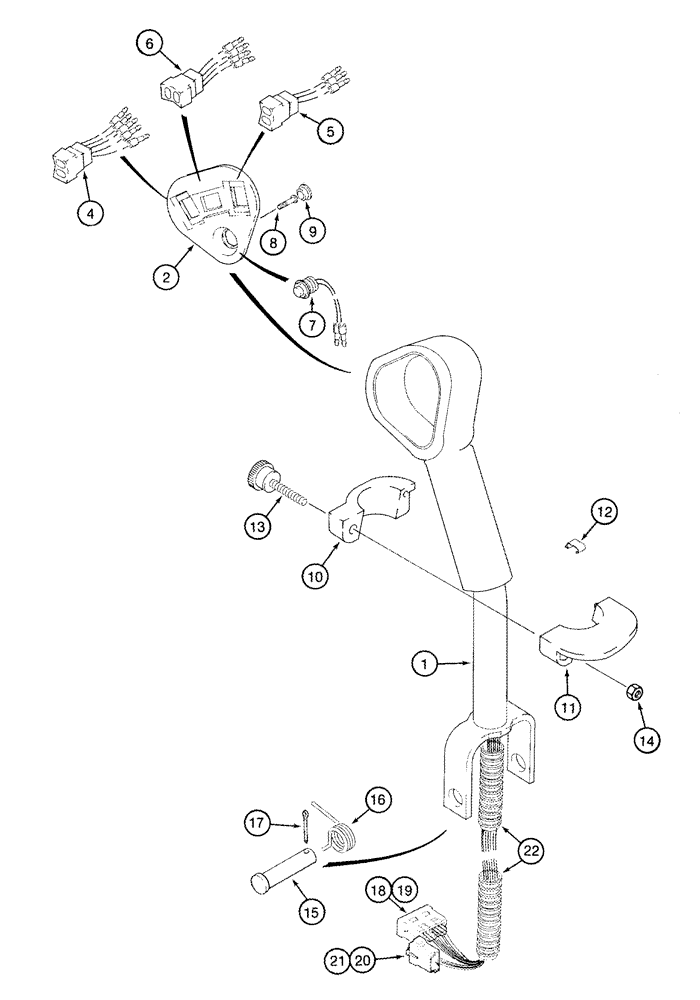

Схема запчастей Case IH CPX610 - (04-14) - CONTROLS PROPULSION (06) - ELECTRICAL SYSTEMS
6
18
14
7
20
13
17
15
4
2
5
16
19
10
22
9
12
21
11
1
8

Артикул

Название

Примечание

Количество

1

113314A2

CONTROL LEVER

Propulsion

1шт.

2

124670A1

COVER PLATE

Inc. Decal 144113A2, Not Illustrated

1шт.

4

118686A2

SWITCH

Drum Raise/Lower

1шт.

5

118685A1

SWITCH

Basket Raise/Lower

1шт.

6

118687A1

SWITCH

Basket Door Open/Close

1шт.

7

127597A1

SWITCH

Unloader Auger

1шт.

8

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

1шт.

9

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

10

116150A1

SUPPORT

Palm Rest, LH

1шт.

11

116152A1

SUPPORT

Palm Rest, RH

1шт.

12

1343962C1

CLIP,ELECTRICAL

Palm Rest

1шт.

13

96860C1

KNOB

Palm Rest, Serial Range: -JJC0250100

1шт.

13

86987885

KNOB

Palm Rest, Start Serial: JJC0250100

1шт.

14

425-104

NUT,1/4"-20, Cl 5

1шт.

15

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

1/2 x 3-7/16

1шт.

16

128593A1

SPRING

Torsion

1шт.

17

432-816

COTTER PIN,1/8" x 1"

1шт.

18

225388C1

ELEC CONNECTOR,Male, 12 Pin

Type NA, Electrical

1шт.

19

225390C1

WEDGE

Type NF, Connector

1шт.

20

225350C1

ELEC CONNECTOR,Male, 6 Pin

Type LY, Electrical

1шт.

21

225353C1

WEDGE,Lock, Black

Type W6P, Connector

1шт.

22

120344C1

CONDUIT

184 mm (7-1/4 in), Protective

1шт.

Выбрано товаров: 22
