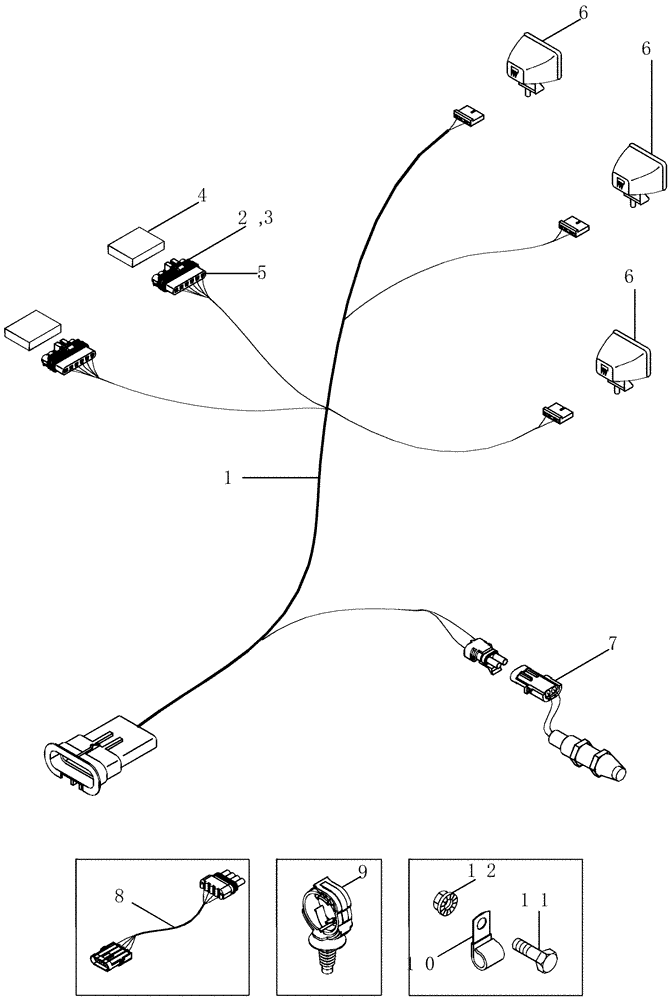

Запчасти Case IH CPX610 (04-11) - HARNESS, BASKET (06) - ELECTRICAL SYSTEMS

1

412700A1

HARNESS

Basket, Inc. 2 - 5

1шт.

2

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR Lock

2шт.

3

187309A1

BAR

2шт.

4

187308A1

CAP

2шт.

5

182084A1

CONNECTOR, ELEC,Locking, Blue

CONNECTOR

2шт.

6

284719A1

LAMP,Halogen, 12V, 50W, Clear

50W, Right Hand Front, Left Hand Front, Left Hand Rear

3шт.

See Figure 04-23

1шт.

7

258484A1

SWITCH

Basket Door Limit

1шт.

8

234793A1

HARNESS

Extension, Basket

1шт.

9

1990594C1

CLIP

Replaced by 362123R1, Serial Range: -JJC0250199

10шт.

10

362123R1

CLIP

Cable Harness, Start Serial: JJC0250200

9шт.

11

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

9шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.
