Запчасти Case IH CPX610 (04-10) - HARNESS, COTTON FLOW (06) - ELECTRICAL SYSTEMS

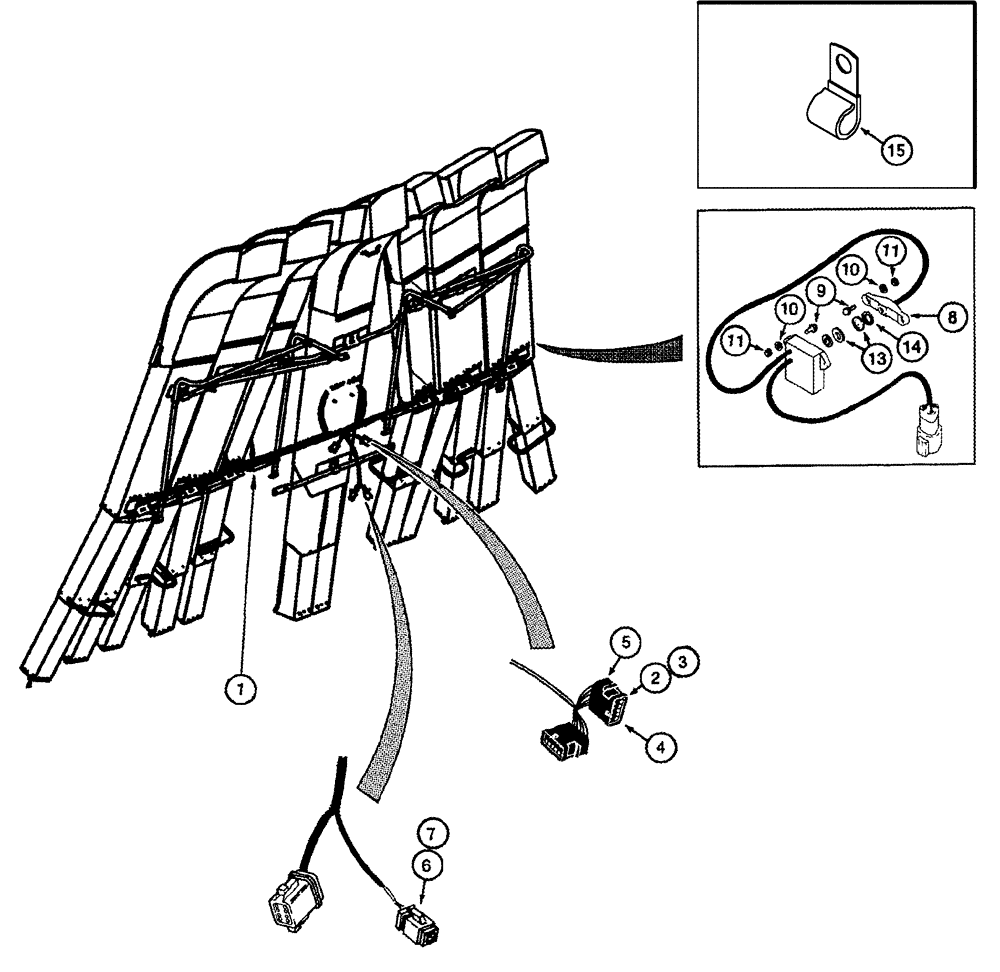

Схема запчастей Case IH CPX610 - (04-10) - HARNESS, COTTON FLOW (06) - ELECTRICAL SYSTEMS
11
13
14
4
11
7
1
15
6
2
5
3
10
8
9
10

Артикул

Название

Примечание

Количество

1

413874A1

HARNESS

Cotton Flow, Inc. 2 - 8

1шт.

2

182083A1

CONNECTOR, ELEC,Female, 6 Cavities

CONNECTOR Lock

6шт.

3

187309A1

BAR

6шт.

4

187308A1

CAP

6шт.

5

182084A1

CONNECTOR, ELEC,Locking, Blue

CONNECTOR

6шт.

6

225316C1

ELEC CONNECTOR,Female, 2 Pin

2 Cavity

1шт.

7

225317C1

WEDGE

1шт.

8

1983618C2

SENSOR

Air Flow

12шт.

9

477-82516

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

1/4 x 1; 8

12шт.

10

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

24шт.

11

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

24шт.

12

83901C1

PACKAGE

Air Flow Sensor Service, Inc. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

CAP, Lens

1шт.

14

NSS

NOT SOLD SEPARAT

GASKET, Mounting

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

Выбрано товаров: 15
