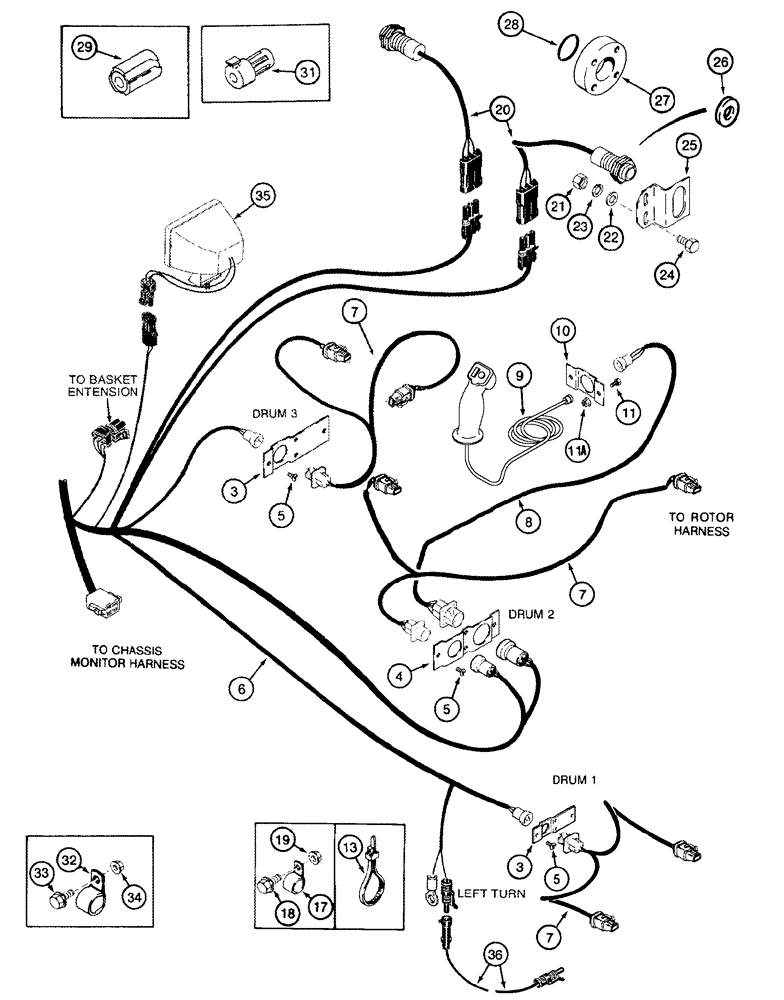

Запчасти Case IH CPX420 (04-08) - HARNESS, LEFT HAND TOOL BAR - 5 ROW NARROW (06) - ELECTRICAL SYSTEMS

3

1988723C1

SUPPORT

Harness Mounting, One Connector

4шт.

4

1988724C1

SUPPORT

Harness Mounting, Two Connector

1шт.

5

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

5шт.

6

87430969

HARNESS

Chassis, Serial Range: -Y6T011001

1шт.

6

87391880

HARNESS

Chassis, Start Serial: Y6T011001

1шт.

7

1983613C2

HARNESS

Drum

5шт.

8

87454224

HARNESS

Drum Tether

1шт.

9

87408867

SWITCH

Remote Tether

1шт.

10

91795C1

SUPPORT

Harness Mounting, One Connector

1шт.

11

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

2шт.

11a

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

111669A1

PACKAGE

Inc. 20 - 28

1шт.

20

295528A1

SWITCH

Proximity, Drum Lift, Drum Tilt

2шт.

21

425-105

NUT,5/16"-18, G5

4шт.

22

495-11034

WASHER,5/16", SAE

4шт.

23

492-11031

LOCK WASHER,5/16"

4шт.

24

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

25

1546432C1

SUPPORT

Switch Mounting

2шт.

26

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

4шт.

27

112291A1

COVER

Switch Port, If Equipped

2шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

If Equipped

2шт.

29

87449805

RESISTOR

Monitor Conversion

1шт.

31

106209A1

CONNECTOR, ELEC

CONNECTOR Dust

1шт.

32

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

Rubber Cushioned

1шт.

33

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

34

231-5146

FLANGE NUT,3/8"-16

1шт.

35

284719A1

LAMP,Halogen, 12V, 50W, Clear

50W, Conveyor

1шт.

See Figure 04-25

1шт.

36

136058A1

HARNESS

Extension, Turn Signal, 5 Row Wide

1шт.
