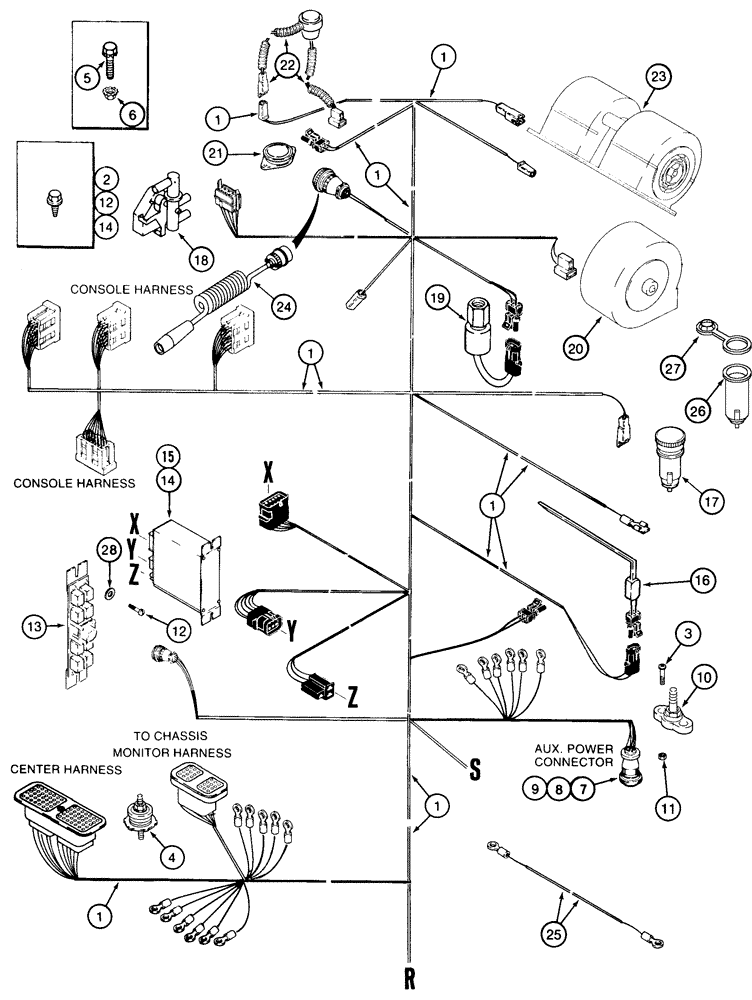

Запчасти Case IH CPX420 (04-05) - HARNESS, CAB - LOWER REAR (06) - ELECTRICAL SYSTEMS

1

87430884

HARNESS

Cab, Serial Range: -Y6T011001

1шт.

1

87383717

HARNESS

Cab, Start Serial: Y6T011001

1шт.

2

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

3

262-15516

SELF-TAP SCREW,Hex Pan Hd, #10 x 1"

2шт.

4

190158A1

BLOCK

Junction, Unswitched

1шт.

5

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

7

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

4шт.

8

231-14106

NUT,#6-32, GB

4шт.

9

187103A1

ELEC CONNECTOR

Auxiliary Power

1шт.

10

435434A1

BLOCK

Junction, Switched

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

12a

495-31022

WASHER,#10

2шт.

13

1983419C3

CONTROL UNIT

Operator Presence

1шт.

14

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

2шт.

15

239951A2

CASE

Air Conditioning Control

1шт.

16

184720A2

SENSOR

Temperature, Evaporator

1шт.

17

A177447

LIGHTER, CIGARETTE

1шт.

18

141336A2

CONTROL VALVE

Heater

1шт.

19

122579A1

SWITCH, A/C LOW PRES

Low, Air Conditioning

1шт.

20

175435A3

BLOWER

Pressurizer

1шт.

21

242306A2

SWITCH

Seat

1шт.

22

180601A1

WIRE HARNESS

Seat, Operator Presence

1шт.

23

355190A1

BLOWER,12V

Cab

1шт.

23

355190A1R

REMAN-BLOWER,12V

Electronics - Other

1шт.

23

355190A1C

CORE-BLOWER,12V

Return Number, BLOWER

1шт.

24

187678A1

SWITCH

Remote Tether, Basket Unload, Service Option Only

1шт.

25

128739A1

CABLE

Ground

1шт.

26

432212A1

CIGAR LIGHTER

12V

1шт.

27

190812A1

COVER

1шт.

28

495-31022

WASHER,#10

2шт.
