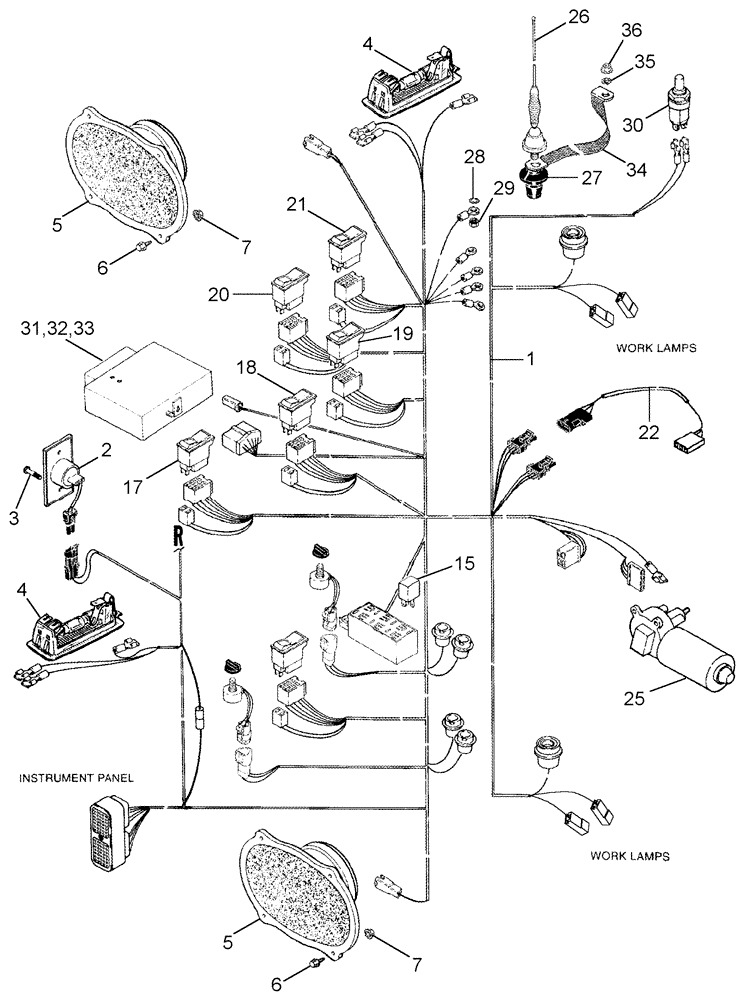

Запчасти Case IH CPX420 (04-04) - HARNESS, CAB - OVERHEAD (06) - ELECTRICAL SYSTEMS

1

87430884

HARNESS

Cab, Serial Range: -Y6T011001

1шт.

1

87383717

HARNESS

Cab, Start Serial: Y6T011001

1шт.

2

83882C91

LAMP

Console

1шт.

See Figure 04-24

1шт.

3

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

4

1983391C1

LAMP,12V, 10W

Dome

2шт.

See Figure 04-24

1шт.

5

375389A1

SPEAKER

5-1/2

2шт.

6

281-53516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

8шт.

7

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

8

114551A1

POTENTIOMETER,2500 Ohm, 500V

2шт.

9

1977521C1

BUTTON

2шт.

10

234997A1

SWITCH

Air Conditioning

1шт.

11

D71346

TAIL LAMP,12V

No. 168, Not Illustrated

4шт.

15

105849A1

RELAY

20 amp

4шт.

16

139641A2

DECAL

Heating and Air Conditioning, Not Illustrated

1шт.

See Figure 09F-20

1шт.

17

141488A1

WINDSHIELD WIPER SWI

Wiper Control, Standard

1шт.

18

144160A1

SWITCH

Basket, Drum Lamp

1шт.

19

124095A1

LIGHT SWITCH

Lamp

1шт.

20

279263A1

FLASHER SWITCH

Hazard - Towing

1шт.

21

141430A1

SWITCH

Emergency Unload

1шт.

22

447525A1

HARNESS

Work Lamp

1шт.

25

87458000

WIPER MOTOR

MOTOR, WIPER Windshield Wiper Front

1шт.

See Figure 04-26

1шт.

26

97080C1

ANTENNA

Radio

1шт.

27

R54547

GROMMET

1шт.

28

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

30

1983341C1

SWITCH

Door Jam

1шт.

31

ZAEVR50

RADIO

AM-FM Stereo, Order From Ship Direct

1шт.

32

ZAEJHD2000

UNIT

AM-FM Stereo, With Cassette Tape Player, Order From Ship Direct

1шт.

33

ZAEJHD3000

UNIT

AM-FM Weatherband With CD, Order From Ship Direct

1шт.

34

278032A1

GROUND STRAP

1шт.

35

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

36

825-51410

FLANGE NUT,M10, Flg Ser

1шт.
