Запчасти Case IH CPX420 (04-02) - HARNESS - STEERING CONSOLE AND PLATFORM (06) - ELECTRICAL SYSTEMS

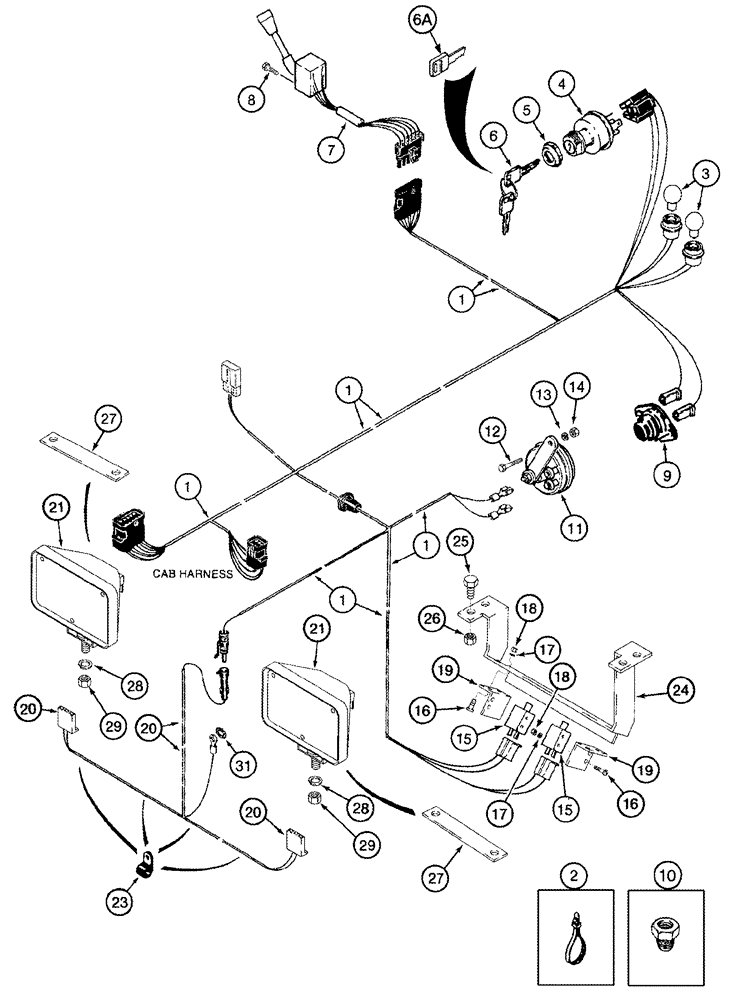

Схема запчастей Case IH CPX420 - (04-02) - HARNESS - STEERING CONSOLE AND PLATFORM (06) - ELECTRICAL SYSTEMS
29
17
6
19
4
28
21
16
21
20
31
12
29
3
11
27
5
18
20
7
15
1
15
25
9
10
1
17
28
1
8
6a
26
14
19
20
23
1
16
27
2
24
13
1
18

Артикул

Название

Примечание

Количество

1

277603A1

WIRE HARNESS

Steering Console

1шт.

2

702093C1

CABLE TIE

CABLE STRAP 3 in

2шт.

2

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

3

D71346

TAIL LAMP,12V

No. 168

2шт.

4

282775A1

IGNITION SWITCH

Inc. 5, 6

1шт.

5

A77314

NUT

1шт.

6

1964831C2

IGNITION KEY

Padded

1шт.

7

1500137C2

FLASHER SWITCH

Horn

1шт.

8

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

2шт.

9

D67872

SWITCH

Ether Injection

1шт.

10

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

1шт.

11

237582A1

HORN

Warning

1шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

13

892-11006

LOCK WASHER,M6

1шт.

14

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

15

127286A1

SWITCH

Emergency Brake

2шт.

16

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

8шт.

17

492-11010

LOCK WASHER,#10

8шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

No. 10

8шт.

19

296466A1

BRACKET

Brake Switch

2шт.

20

390404A1

HARNESS

Platform

1шт.

21

284718A1

LAMP,Halogen, 12V, 35W, Clear

35W, Aftercut

2шт.

23

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

24

296643A1

BRACKET

Brake Switch

1шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

26

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

27

284564A2

PLATE

Aftercut Lamp

2шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

29

425-108

NUT,1/2" - 13, Gr 5

2шт.

31

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

Выбрано товаров: 30
