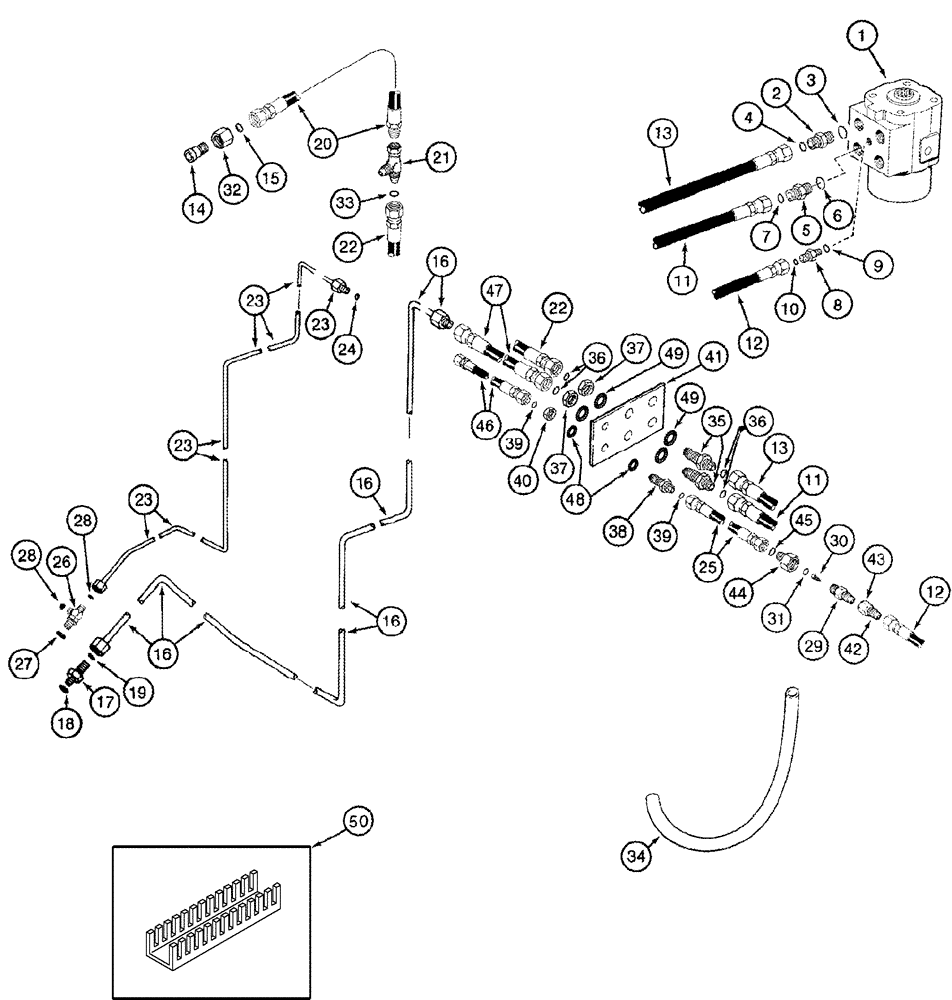

Запчасти Case IH CPX420 (05-02) - HYDRAULICS - STEERING (04) - STEERING

1

387548A1

STEERING VALVE

Steering

1шт.

See Figure 05-04

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

11/16 fc x 3/4 Or, Inc. 6, 7

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Inc. 9, 10

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

187655A1

HOSE

1830 mm (72 in), Steering Supply

1шт.

12

187644A1

HOSE

360 mm (14-1/8 in), Sensing

1шт.

13

187656A1

HOSE

1830 mm (72 in), Steering Return

1шт.

14

201-142

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

11/16 fc x 1-3/16 fem fc, Inc. 15

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

1546031C2

PIPE

Supply Valve

1шт.

17

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 18, 19

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

1988952C1

HOSE

1175 mm (46-1/4 in), Return

1шт.

21

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

22

187647A1

HOSE

890 mm (35 in), Return

1шт.

23

1546032C2

PIPE

Sensing Valve

1шт.

24

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

25

187646A1

HOSE

1270 mm (50 in), Sensing

1шт.

26

201-435

TEE,9/16"-18 x 7/16"-20 Run, ORFS

Inc. 27, 28

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

28

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

29

1980237C2

CHECK VALVE

Inc. 30, 31

1шт.

30

NSS

NOT SOLD SEPARAT

Screen

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

32

203-904

TUBE NUT,1 3/16"-12 ORFS

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34

191134A1

HOSE,60.3mm ID x 956mm L

965 mm (38 in)

2шт.

35

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

11/16 fc x blkhd fc, Inc. 36, 37

2шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

37

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

1шт.

38

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

Includes 39, 40

1шт.

39

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

40

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

41

184359A2

LARGE PLATE

PLATE, LARGE

1шт.

42

218-791

REDUCER,37 Degree, 1/2" x 1/4" Tube

1шт.

43

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

1шт.

44

201-138

REDUCER,11/16"-18 Male x 13/16"-16 Fem, ORFS

11/16 fc x 13/16 fem fc, Inc. 45

1шт.

45

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

46

187653A2

HOSE ASSY.

1450 mm (57 in), Sensing

1шт.

47

187648A1

HOSE

1015 mm (40 in), Supply

1шт.

48

493-41059

LOCK WASHER,Ext Tooth, 9/16"

2шт.

49

493-41078

LOCK WASHER,Ext Tooth, 3/4"

4шт.

50

324826A1

GROMMET

Flexible Edging, 280 mm (11 in)

1шт.
