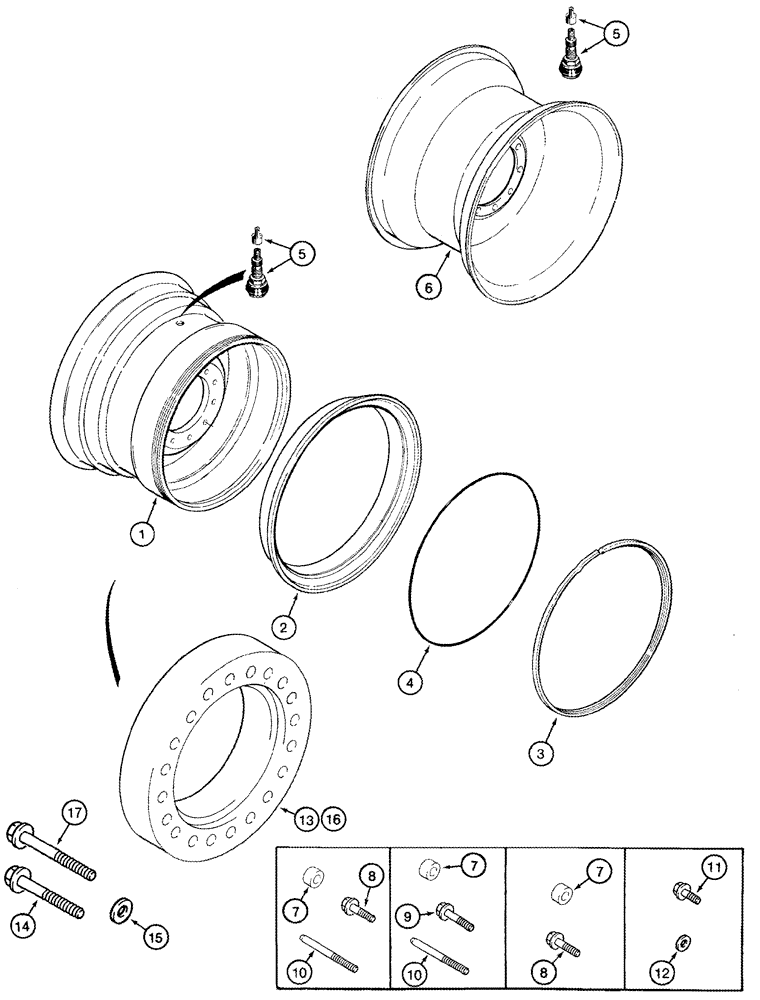

Запчасти Case IH CPX420 (06-24) - WHEELS, DRIVE - SPACERS (03) - POWER TRAIN

359179A2

WHEEL ASSY.

330 x 813 mm (13 x 32 in), Inc. Decals 300951A1

2шт.

1

NSS

NOT SOLD SEPARAT

Rim, Wheel

1шт.

2

184471C1

WHEEL

1шт.

3

184472C1

RING

1шт.

4

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

1шт.

5

179482C1

VALVE STEM

7/16 in dia, Inc. Cap, For 5/8 Inch Hole

2шт.

6

124092A2

WHEEL ASSY.

622 x 813 mm (24-1/2 x 32, One Piece, 16 PR Tire, Single Drive, 4 Row Wide

2шт.

6

438344A1

WHEEL

One Piece, Reinforced, 20.8-38 14 PR Tire, Outer Dual, Inc. Decal 135980A2 (2)

2шт.

6

232749A2

WHEEL

32 x DW13, for 500/95-32 Leak Index 169A3 Full Time Duals

4шт.

7

130871A3

SPACER

Used With 359179A2, 135898A1, 124092A2, If Used

30шт.

8

130965A2

BOLT

M20 x 70; 10.9, Used With 359179A2, 124092A2

30шт.

9

130934A2

BOLT

M20 x 90; 10.9, Used With 359179A2

30шт.

10

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Drive Wheel Starter, Used With 359179A2, 135898A1, 124092A2

2шт.

11

514-1211

BOLT,Hex, M20 x 1.5 x 45mm, Cl 10.9

Used With 438344A1

10шт.

12

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm, Used With 438344A1

10шт.

13

87518976

SPACER

76 mm (3 in), 40 Inch Rows, 5 Row Wide

2шт.

14

514-1223

BOLT,Hex, M20 x 1.5 x 150mm, Cl 10.9

40 Inch Rows, 5 Row Wide, Used With 135171A2

40шт.

15

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

22 x 34 x 3,4 mm, 40 Inch Rows, 5 Row Wide

40шт.

15

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

With Duals

30шт.

16

87518979

SPACER

127mm (5 in), With Duals, Not Illustrated

2шт.

17

514-1226

BOLT,Hex, M20 x 1.5 x 190mm, Cl 10.9

40шт.

17

514-1228

BOLT,Hex, M20 x 1.5 x 200mm, Cl 10.9

Used With 140712A1

40шт.
