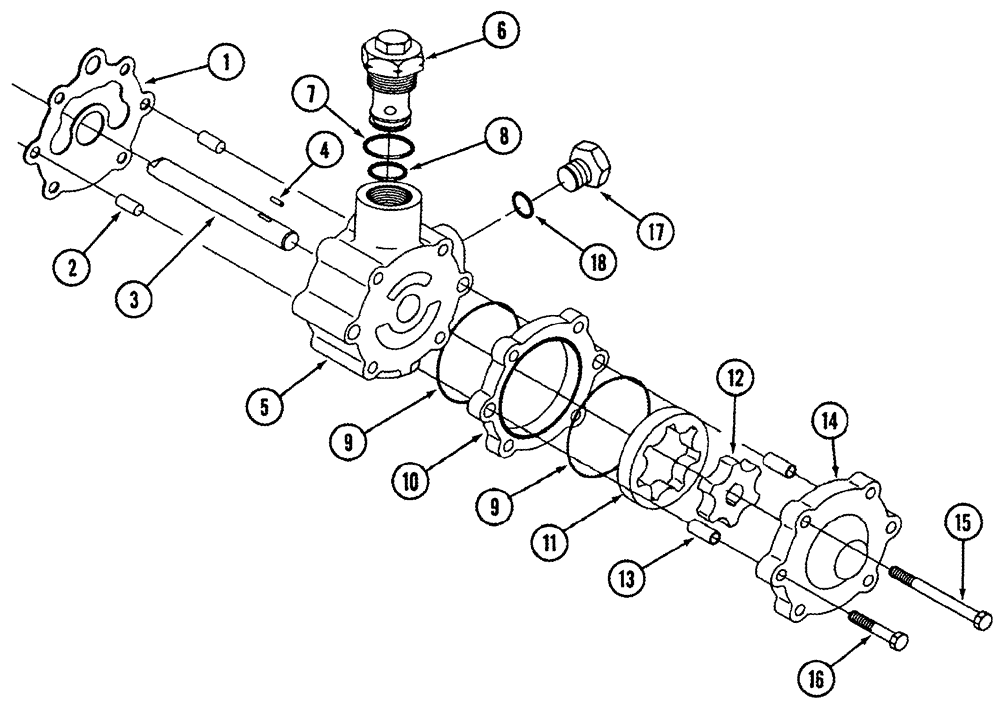

Запчасти Case IH CPX420 (06-13) - PUMP ASSY - HYDROSTATIC - CHARGE PUMP (03) - POWER TRAIN

1986824C5

PUMP, HYDROSTATIC

HYDROSTATIC PUMP New, Inc. Figures 06-09 - 06-12

1шт.

1986824C5R

REMAN-HYDROSTAT PUMP

CPX420 CASE IH COTTON PICKER, HYDROSTATIC PUMP New, CHARGE PUMP (5/05-8/06)

1шт.

1986824C5C

CORE-HYDROSTAT PUMP

Return Number

1шт.

107593A2

PUMP

Charge, Inc. 1 - 18

1шт.

1

133760C2

GASKET

1шт.

2

37-1510

DOWEL,5/16" x 5/8"

2шт.

3

NSS

NOT SOLD SEPARAT

Shaft

1шт.

4

NSS

NOT SOLD SEPARAT

Pin

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

1986741C1

VALVE PRESSURE RELIE

Inc. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

8

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

NSS

NOT SOLD SEPARAT

Spacer

1шт.

11

NSS

NOT SOLD SEPARAT

Gerotor, Inner

1шт.

12

NSS

NOT SOLD SEPARAT

Gerotor, Outer

1шт.

13

NSS

NOT SOLD SEPARAT

Dowel

2шт.

14

NSS

NOT SOLD SEPARAT

Cover

1шт.

15

326-564

BOLT,Hex, 5/16" - 18 x 4", Gr 8

4шт.

16

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

17

86512512

PLUG,7/8" - 14 ORB

Incl. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

255081A1

SEAL KIT

Inc.. 1, 7, 8 9, 18

1шт.
