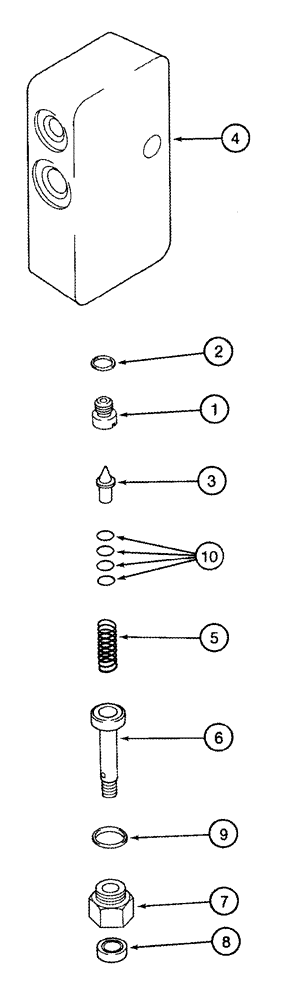

Запчасти Case IH CPX420 (06-08) - VALVE ASSY - FOOT-N-INCH - BSN Y6T011001 (03) - POWER TRAIN

296786A2

VALVE

6500 psi, Foot-N-Inch, Inc. 1 - 10

1шт.

1

123595A2

SEAT, VALVE

1шт.

2

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

3

398710R1

VALVE POPPET

1шт.

4

NSS

NOT SOLD SEPARAT

Housing

1шт.

5

539751R2

SPRING

1шт.

6

398708R1

STOP

1шт.

7

398707R1

GUIDE

1шт.

8

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

530575R91

SHIM KIT

Poppet Spring, Inc. 10

1шт.

10

NSS

NOT SOLD SEPARAT

0,13 mm (0,005 in), Shim

4шт.

10

NSS

NOT SOLD SEPARAT

0,18 mm (0,007 in), Shim

4шт.

10

NSS

NOT SOLD SEPARAT

0,51 mm (0,020 in), Shim

2шт.

10

NSS

NOT SOLD SEPARAT

1,07 mm (0,042 in), Shim

1шт.
