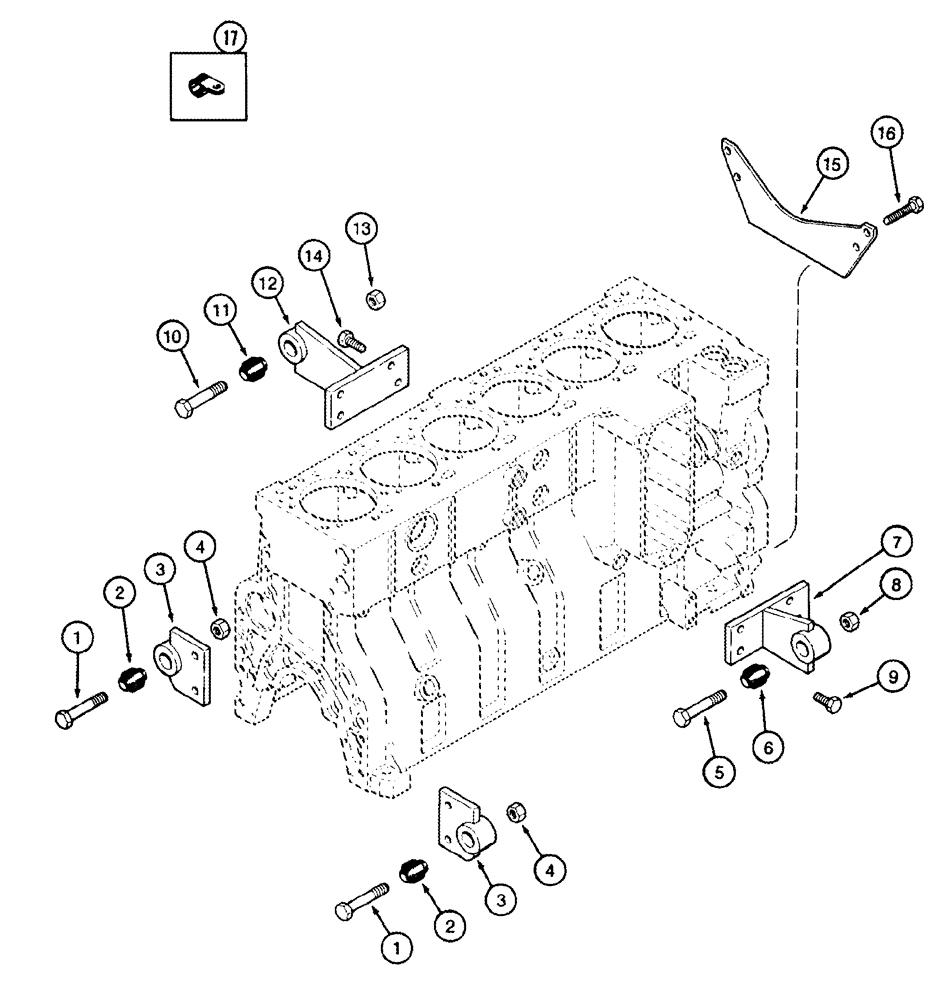

Запчасти Case IH CPX420 (02-27) - MOUNTING, ENGINE (01) - ENGINE

1

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

2

672870R1

BUSHING

Rubber

2шт.

3

2216809R91

Engine, Flywheel End, With Bushing

2шт.

See Figure 06-03, REF 12 - 15

1шт.

4

231-41110

LOCK NUT,5/8"-11, GB

2шт.

5

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

6

672870R1

BUSHING

Rubber

1шт.

7

2358294R91

Engine, Right Hand Front, With Bushing

1шт.

8

231-41110

LOCK NUT,5/8"-11, GB

1шт.

9

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

10

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

11

672870R1

BUSHING

Rubber

1шт.

12

2358293R91

SUPPORT

Engine, Left Hand Front, With Bushing

1шт.

13

231-41110

LOCK NUT,5/8"-11, GB

1шт.

14

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

4шт.

15

1315696C1

SUPPORT

Engine, Fan End

1шт.

16

30951R1

BOLT,Hex, M12 x 60mm, Cl 10.9

M12 x 60; 10.9

4шт.

17

1345263C1

CLIP

3/4 ID

2шт.
