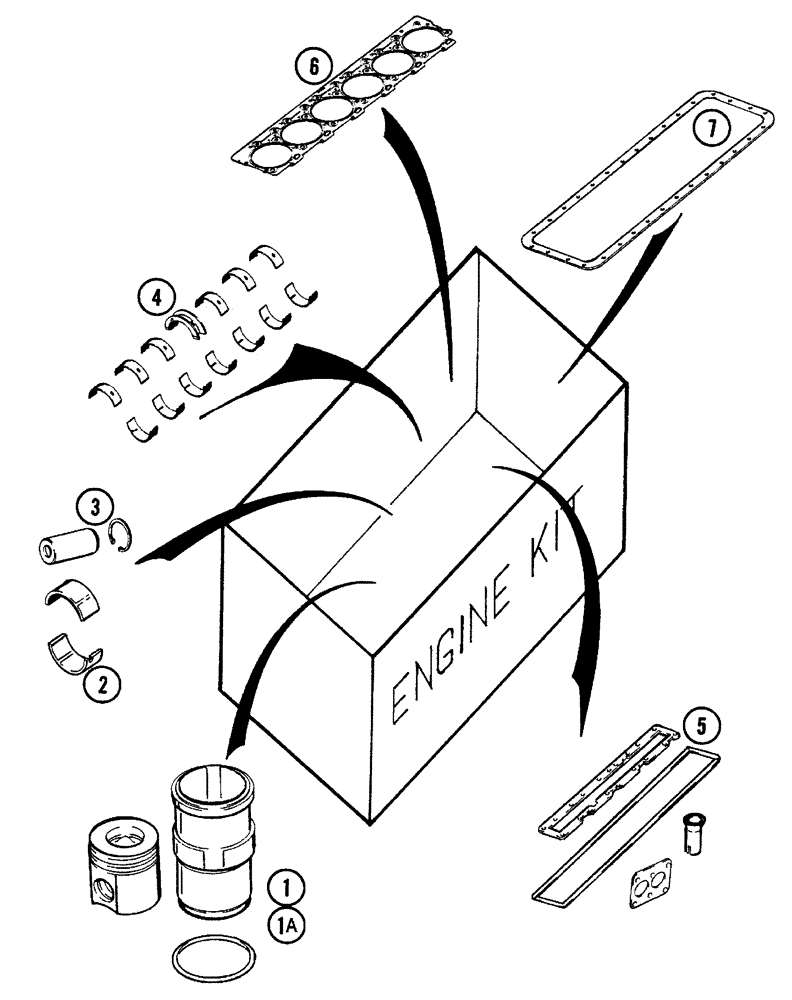

Запчасти Case IH CPX420 (02-25) - KIT ENGINE OVERHAUL (01) - ENGINE

A78017

REPAIR KIT

Engine Overhaul Kit, Inc. 1 - 7

1шт.

1

A77912

PACKAGE, REPAIR

Piston and Sleeve

6шт.

See Figure 02-20

1шт.

2

87443389

BEARING LINER

Connecting Rod, Standard

6шт.

See Figure 02-20

1шт.

3

J934046

PISTON PIN,45mm OD x 91mm L

Piston

6шт.

See Figure 02-20

1шт.

4

J945930

BEARING SET

Main, Standard

6шт.

See Figure 02-19

1шт.

4

J945929

THRUST BEARING

Thrust, Standard

1шт.

See Figure 02-19

1шт.

5

A77976

GASKET KIT

Valve Grind

1шт.

See Figure 02-23

1шт.

6

J938267

CYLINDER HEAD GASKET,2.01mm Thk

Standard

1шт.

See Figure 02-13

1шт.

7

87308050

GASKET,0.95mm Thk

Oil Pan

1шт.

See Figure 02-12

1шт.
