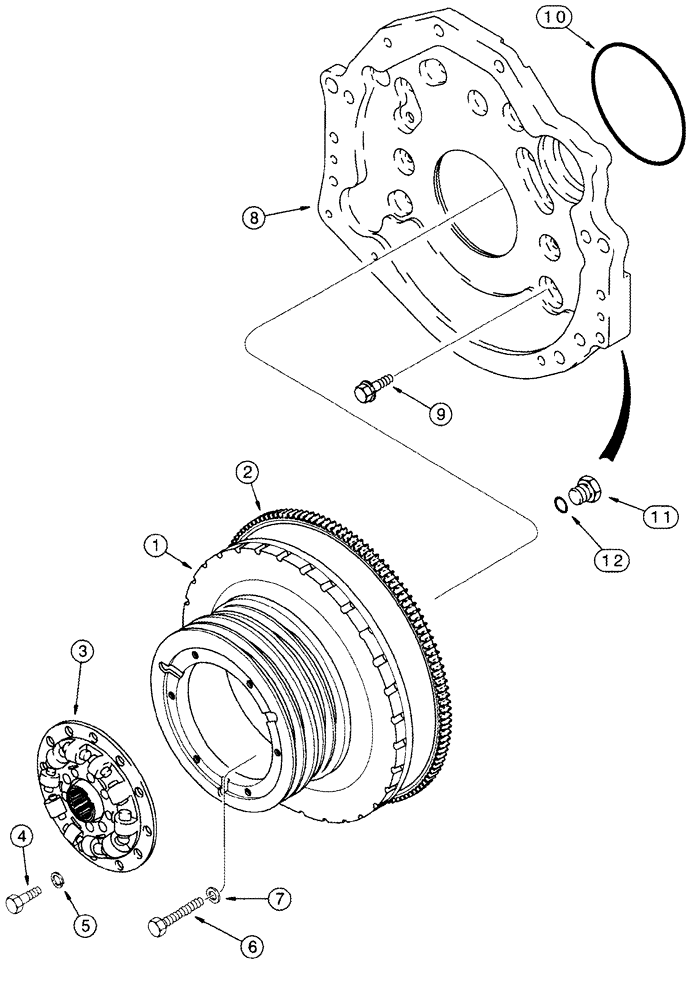

Запчасти Case IH CPX420 (02-21) - FLYWHEEL AND BACKING PLATE (01) - ENGINE

1

1546119C2

PULLEY

Inc. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Gear

1шт.

3

1546204C2

LARGE PLATE

PLATE, LARGE

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

5

492-11038

LOCK WASHER,3/8"

6шт.

6

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

7

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

8

J913593

PLATE

1шт.

9

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

10шт.

10

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

11

J910248

PLUG

Includes 12

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.
