Запчасти Case IH CPX420 (02-19) - CRANKSHAFT (01) - ENGINE

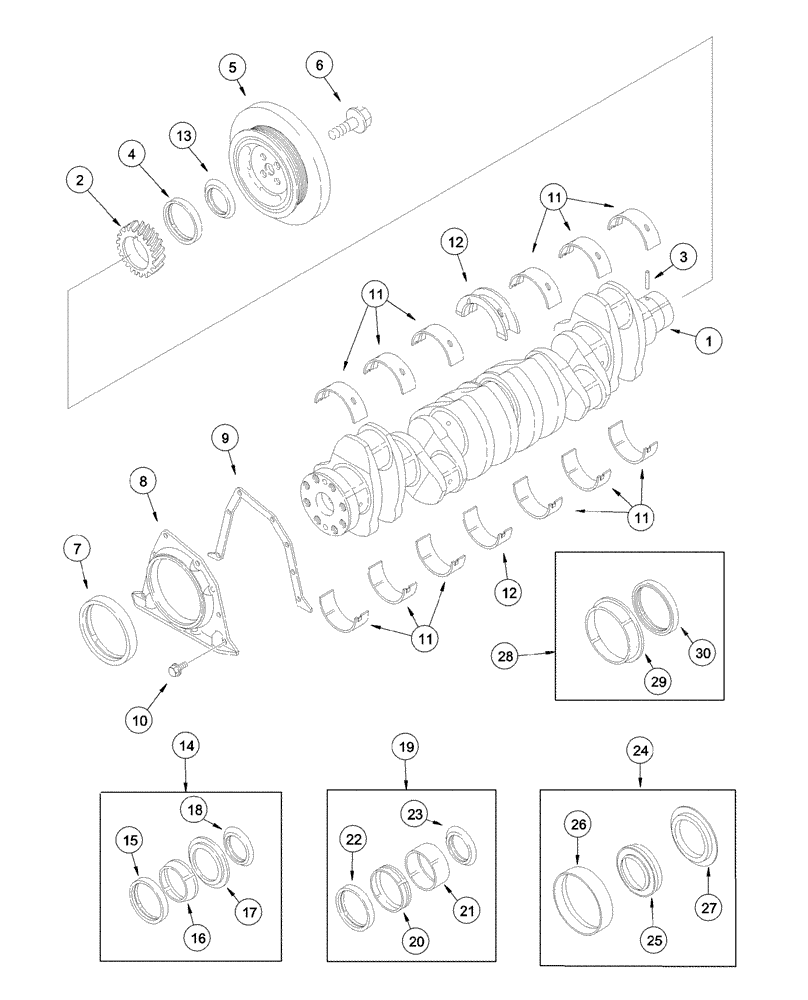

Схема запчастей Case IH CPX420 - (02-19) - CRANKSHAFT (01) - ENGINE
12
19
5
13
25
12
17
16
26
11
14
21
8
18
6
7
23
2
11
9
24
27
10
3
29
22
20
11
1
15
30
4
11
28

Артикул

Название

Примечание

Количество

JR918986

REMAN-CRANKSHAFT

Remanufactured, Only For N.A.

1шт.

JC918986

CORE-CRANKSHAFT

1шт.

1

J918986

CRANKSHAFT

Inc. 2, 3

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77790

1шт.

5

J925568

DAMPER,246mm OD

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

M14 x 35

4шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order J934486

1шт.

8

J933384

REAR COVER

1шт.

9

87447962

GASKET,0.8mm Thk

1шт.

10

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16; 10.9

8шт.

11

J945930

BEARING SET

Standard

6шт.

11

J945931

BEARING SET

Undersize 0,25 mm

6шт.

11

J945932

BEARING SET

Undersize 0,50 mm

6шт.

11

J945933

BEARING SET

Undersize 0,75 mm

6шт.

11

J945934

BEARING SET

Undersize 1,00 mm

6шт.

12

J945929

THRUST BEARING

Standard

1шт.

12

J945922

THRUST BEARING

Undersize 0,25 mm

1шт.

12

J945923

THRUST BEARING

Undersize 0,50 mm

1шт.

12

J945924

THRUST BEARING

Undersize 0,75 mm

1шт.

12

J945925

THRUST BEARING

Undersize 1,00 mm

1шт.

12

J945926

THRUST BEARING

Standard, Oversize 0,25 mm

1шт.

12

J945927

THRUST BEARING

Standard, Oversize 0,50 mm

1шт.

12

J945928

THRUST BEARING

Undersize 0,50 mm, Oversize 0,50 mm

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order A77790

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Inc. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Tool

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Crankshaft, Front, Inc. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

24

J934486

SERVICE KIT

Crankshaft, Rear, Inc. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

NSS

NOT SOLD SEPARAT

Tool

1шт.

27

NSS

NOT SOLD SEPARAT

Tool

1шт.

28

A77810

SERVICE KIT

Crankshaft, Rear, Inc. 28, 29

1шт.

29

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

30

NSS

NOT SOLD SEPARAT

Seal

1шт.

31

87444550

KIT

Dust Excluder, Use in Conjuction With Kit A77810, (Not Shown)

1шт.

32

NSS

NOT SOLD SEPARAT

Spacer

1шт.

33

NSS

NOT SOLD SEPARAT

Slinger

1шт.

Выбрано товаров: 46
