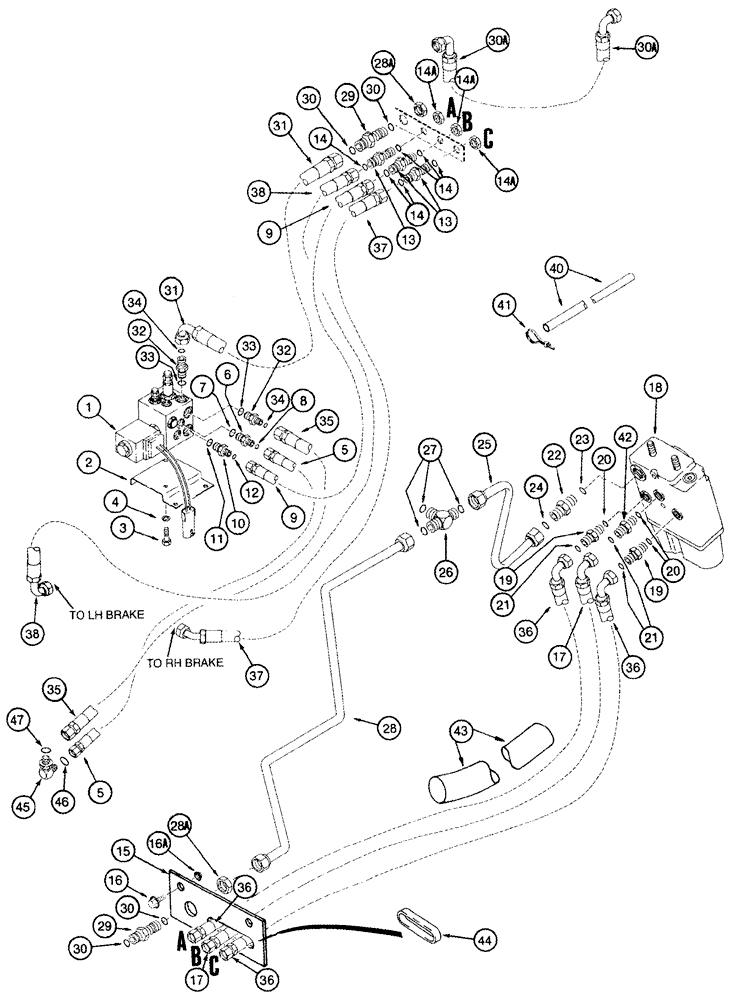

Запчасти Case IH CPX420 (07-02) - HYDRAULICS - MASTER BRAKE (5.1) - BRAKES

1

138367A4

VALVE

Regulator

1шт.

See Figure 07-06

1шт.

2

133529A1

SUPPORT

1шт.

3

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

4

892-11008

LOCK WASHER,8mm ID

2шт.

5

187672A3

HOSE

1725 mm (68 in)

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

221130A1

HOSE

1475 mm (58 in)

1шт.

10

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 11, 12

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes 14

3шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

14a

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

3шт.

15

221959A2

LARGE PLATE

PLATE, LARGE

1шт.

16

905-10025

BOLT,Hex Flg, M10 x 25mm

2шт.

16a

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

17

221128A2

HOSE

1375 mm (54-1/8 in)

1шт.

18

137449A2

BRAKE VALVE

1шт.

See Figure 07-04

1шт.

19

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 20, 21

2шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

22

201-131

HYD CONNECTOR,1"-12 ORFS x 9/16"-18 ORB

1-14 fc x 1-1/16-12 Or, Inc. 23, 24

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

25

184333A2

PIPE

1шт.

26

201-415

TEE,1"-14 ORFS

Inc. 27

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

28

184334A2

PIPE

1шт.

28a

201-919

BHD LOCK NUT,1" - 14

1шт.

29

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

30

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

30a

87750401

HOSE

1шт.

31

187670A1

HOSE

1525 mm (60 in)

1шт.

32

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

Inc. 33, 34

2шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

34

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

35

187671A1

HOSE

1985 mm (78-1/8 in)

1шт.

36

221127A2

HOSE

1375 mm (54-1/8 in), Right Hand, Left Hand

2шт.

37

221129A1

HOSE

1350 mm (53-1/8 in)

1шт.

38

221131A1

HOSE

2000 mm (78-3/4 in)

1шт.

39

236388A1

BRAKE ASSY.

Not Illustrated

2шт.

See Figure 07-03

1шт.

39

236388A1R

REMAN-BRAKE ASSY.

REMAN-BRAKE ASSY REMAN - Wet Brakes

2шт.

39

236388A1C

CORE-BRAKE ASSY.

Return Number

2шт.

40

222029A1

SLEEVE,72.6mm ID x 965mm L

965 mm (38 in)

1шт.

41

306132C1

CABLE TIE,14.5" L

CABLE STRAP 14 in

1шт.

42

197070A1

VALVE, CHECK

1шт.

43

1989500C1

SLEEVE

1шт.

44

222038A1

GROMMET

1шт.

45

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 46, 47

1шт.

46

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

47

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.
