Запчасти Case IH CPX420 (02-17) - FILTER AND COOLER OIL (01) - ENGINE

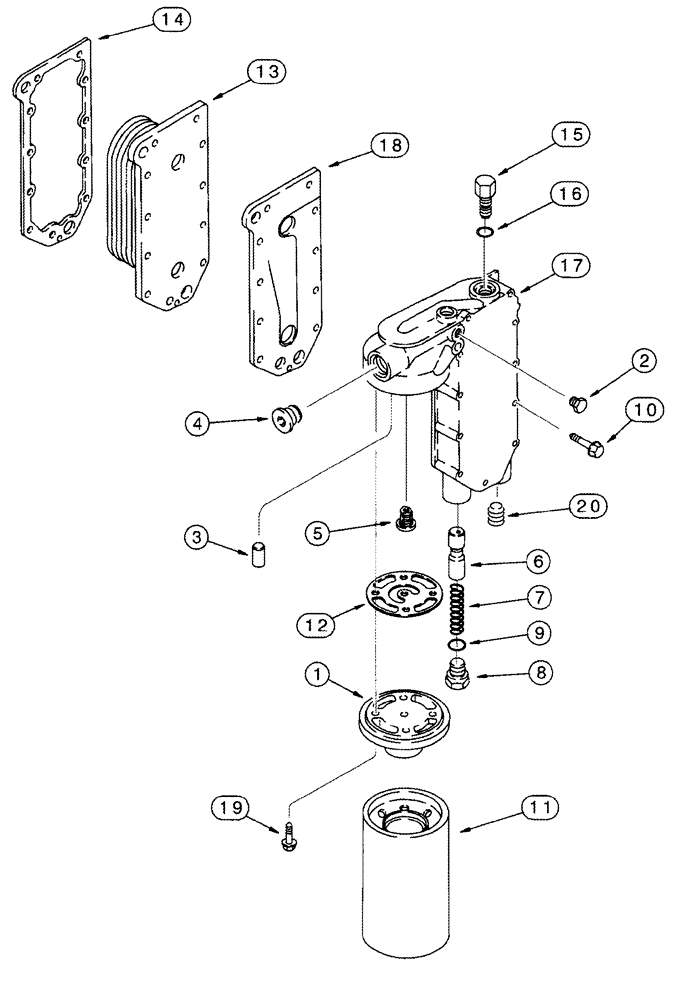

Схема запчастей Case IH CPX420 - (02-17) - FILTER AND COOLER OIL (01) - ENGINE
1
9
8
7
14
4
13
6
17
20
5
15
10
3
2
16
11
19
12
18

Артикул

Название

Примечание

Количество

1

J918334

FILTER HEAD

1шт.

2

J906619

PLUG,1/8" - 27

1/8 PT

2шт.

3

A77722

PIN,7.95mm OD x 12.83mm L

1шт.

4

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

5

J936365

VALVE PRESSURE RELIE

1шт.

6

J945967

PLUNGER

1шт.

7

A77541

SPRING

1шт.

8

J931084

PLUG

24 mm, Includes 9

1шт.

9

J930911

O-RING,0.07" Thk x 0.8" ID

1 ID x 1/16

1шт.

10

87421315

FLANGE BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

M8 x 65

11шт.

11

J919562

ENGINE OIL FILTER

1шт.

12

87447957

GASKET,1.2mm Thk

1шт.

13

87453888

CORE, RADIATOR

1шт.

14

J918174

GASKET,0.71mm Thk

1шт.

J934410

BY-PASS VALVE

Bypass, Inc. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

16

A77724

O-RING,3.05mm Thk x 23.62mm ID

1шт.

17

J931077

COVER

1шт.

18

J929011

GASKET,1.19mm Thk

1шт.

19

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

4шт.

20

221-1034

PLUG,Sq Soc, 1/2" MPTF

1/2 PT

1шт.

Выбрано товаров: 21
