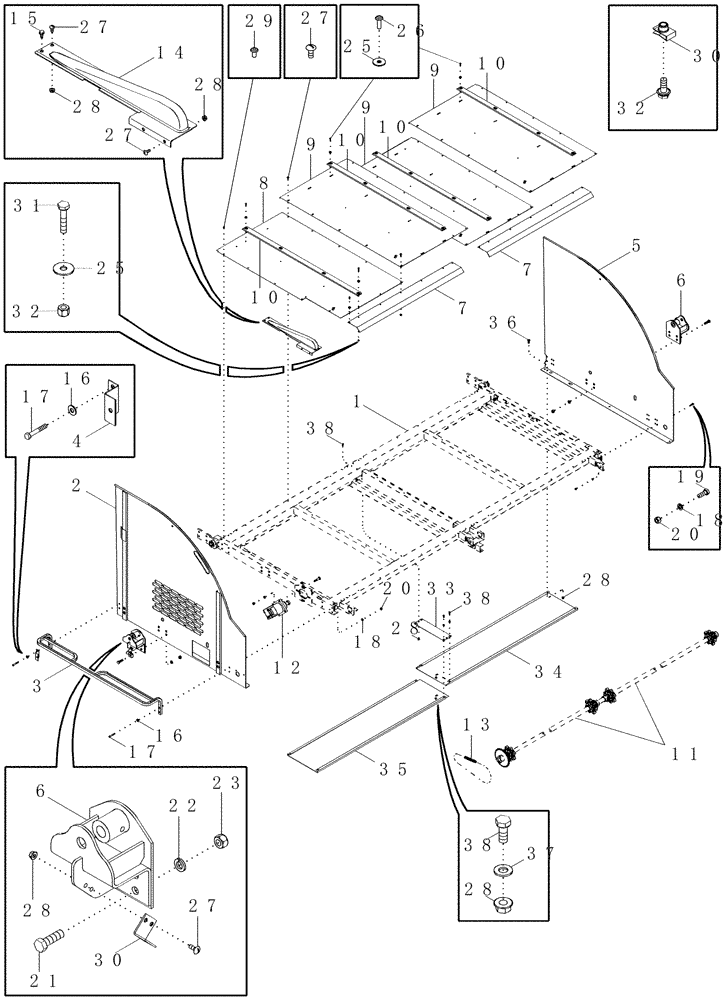

Запчасти Case IH CPX420 (09D-15) - BASKET DOOR (16) - BASKET

1

NSS

NOT SOLD SEPARAT

Frame, Basket Door

1шт.

See Figure 09D-14

1шт.

2

321140A1

SHIELD

Front

1шт.

3

409671A1

STEP

Inc. Antislip Tape, Cut 100 Inches From 232024A1

1шт.

4

335724A1

SUPPORT

Conveyor Hose

1шт.

5

419332A2

SHIELD

Rear

1шт.

6

257599A3

BRACKET

Door Cylinder Lower

2шт.

7

87433768

SHIELD

Drive Shaft

2шт.

8

87433765

SHEET

Door Front

1шт.

8

84494360

SHEET

Door Front, Start Year: 04-JAN-12

1шт.

9

87433766

SHEET

Door

3шт.

9

84494378

SHEET

Door, Start Year: 04-JAN-12

3шт.

10

300225A1

SLIDE

Door Slats

4шт.

11

REF

INSTRUCTION

Shaft Assembly, Conveyor

1шт.

See Figure 09D-16

1шт.

12

REF

INSTRUCTION

Motor, Basket Unloader

1шт.

See Figure 08-34

1шт.

13

REF

INSTRUCTION

Chain Assembly, Conveyor Drive

1шт.

See Figure 09D-16

1шт.

14

293056A2

PROTECTOR

Chain

1шт.

15

281-24812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

1шт.

16

495-21044

WASHER,3/8"

4шт.

17

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

18

492-11038

LOCK WASHER,3/8"

16шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

14шт.

20

425-106

NUT,3/8"-16, Cl 5

16шт.

21

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

8шт.

22

492-11062

BEARING WASHER,5/8"

8шт.

23

429-1010

NUT,5/8"-11, G8

8шт.

24

276-14916

SELF-TAP SCREW,Hex Hd, 3/8" x 1"

2шт.

25

495-81107

WASHER,.281" x 7/8" x .060"

22шт.

26

375677A1

RIVET

1/4

18шт.

27

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

13шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

23шт.

29

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4

23шт.

30

431796A1

BRACKET

1шт.

32

231-1444

NUT,1/4"-20, GB

4шт.

33

87459126

PLATE

Panel

1шт.

34

87458902

DOOR PANEL

Rear

1шт.

35

87458618

SHEET

Front

1шт.

36

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

37

495-11034

WASHER,5/16", SAE

4шт.

38

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

31

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
