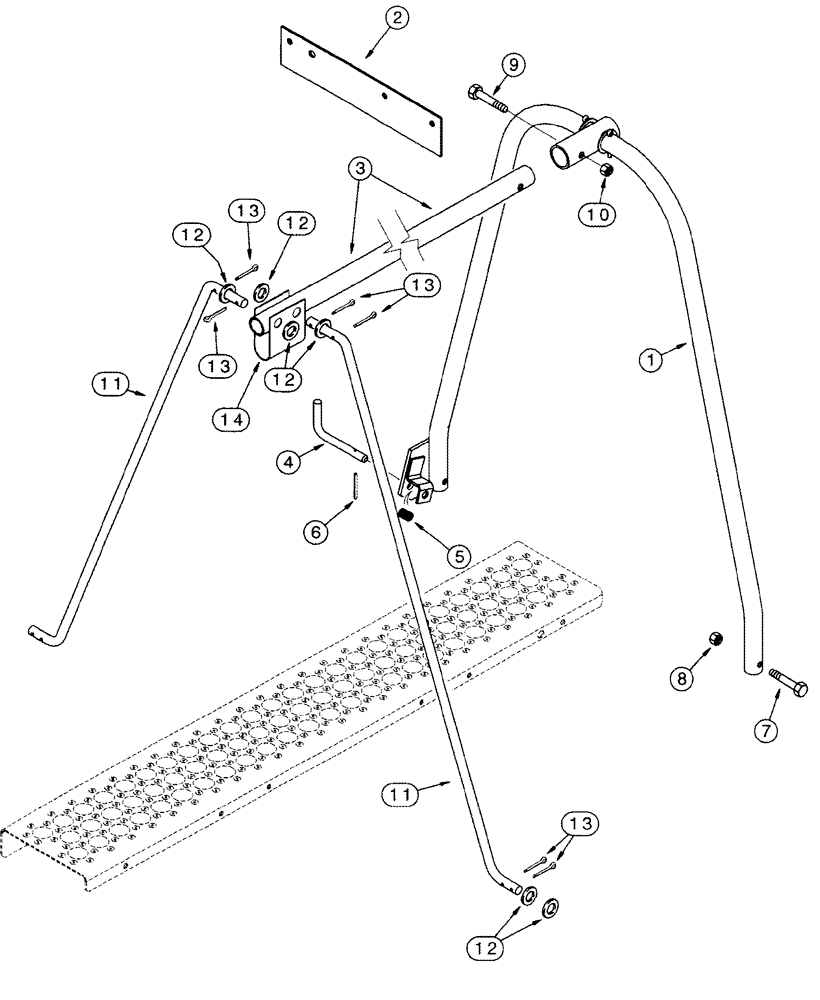

1
234211A2
GRAB RAIL
Front
1шт.
2
244506A2
LARGE PLATE
PLATE, LARGE Front
1шт.
3
228872A3
TUBE,34.92 mm OD
1шт.
4
1319740C2
PIN,3mm OD x 20mm OAL
Ladder Support
1шт.
5
540815R2
SPRING
Latch Pin
1шт.
6
38-1813
LOCK PIN,1/8" x 13/16", Slotted
1шт.
7
413-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
2шт.
8
231-1446
NUT,3/8" - 16, Gr 5
2шт.
9
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
1шт.
10
230-4116
LOCK NUT,3/8"-16, GA
1шт.
11
221411A2
STEM
Rear
2шт.
12
495-11066
WASHER,5/8", SAE
8шт.
13
432-1216
COTTER PIN,3/16" x 1"
8шт.
14
256495A1
SUPPORT
Handrail Lift, Rear
1шт.
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
9шт.
