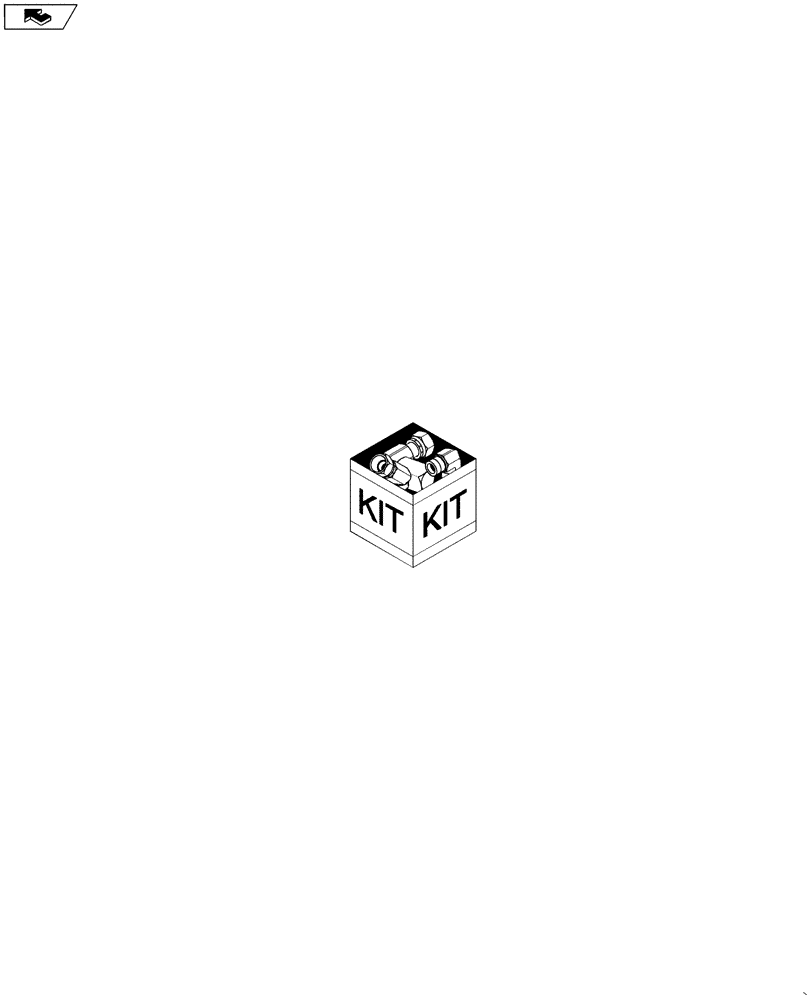

Запчасти Case IH CPX420 (09C-24) - CONVERSION KIT 4/5RN TO 4RW (15) - HANDLING SYSTEM

1

84243010

DIA KIT, HARVESTER

Conversion 4/5RN To 4RW

1шт.

2

87454859

PACKAGE

Front Outlets Narrow Row

1шт.

3

431728A1

PACKAGE

Front Extension

1шт.

4

431244A1

PACKAGE

Front Transitions

1шт.

5

87454858

PACKAGE

Rear Outlets Standard

1шт.

6

431471A1

PACKAGE

Rear Extensions

1шт.

7

431472A1

PACKAGE

Rear Transitions

1шт.

8

87454859

PACKAGE

Front Outlets Narrow Row

1шт.

9

1988707C2

GUARD

1шт.

10

145458

SERRATED NUT,5/16"-18 GR 5 ZND

52шт.

11

411-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

4шт.

12

1988802C2

GUARD

Extension Assy, Front

1шт.

13

88902

NUT,3/8"-16

7шт.

14

87454858

PACKAGE

Rear Outlets Standard

1шт.

15

431481A1

PACKAGE

Rear Extensions

1шт.

16

431475A1

PACKAGE

Rear Transition

1шт.

17

324164A1

NOZZLE

1шт.

18

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

2шт.

19

87454859

PACKAGE

Front Outlets Narrow Row

1шт.

20

1988707C2

GUARD

Connector Assy #3 Front

1шт.

21

1988707C2

GUARD

Connector Assy #3 Front

1шт.

22

1988712C2

EXTENSION

Extension Assy, Number 3 Front, 4 Row

1шт.

23

87454858

PACKAGE

Rear Outlets Standard

1шт.

24

84540424

PACKAGE

Extension, 4R 6RW, 3R 4RW

1шт.

25

87430727

CHUTE

Upper Double Outer

1шт.

26

360662A1

NUT

Conveyor Hood

2шт.

27

127589A1

CLAMP

Conveyor Pipe Lower

1шт.

28

127588A1

CLAMP

Conveyor Pipe Upper

1шт.

29

247780

SERRATED NUT,Flg, USR, 3/8"-16

9шт.

30

1349872C3

DIVIDER

Double Chute Outer

1шт.

31

135632

SERRATED SCREW,Pan HD, 5/16" - 18 x 1/2"

15шт.

32

135270

SERRATED SCREW,5/16" - 18 x 3/4"

6шт.

33

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

14шт.

34

1349843C1

HINGE

Upper Female

2шт.

35

1270014C1

HINGE

Male

2шт.

36

1349860C1

PIN,7.94mm OD x 129mm L

2шт.

37

80755

COTTER PIN,1/8" OD x 1" L

3шт.

38

242378A2

HOOD

Double Outer, Long

1шт.

39

1984139C3

CHUTE

Female Outer

1шт.

40

123569A1

SUPPORT

1шт.

41

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

42

1349803C1

CHUTE

Male Lower Outer

1шт.

43

131427A2

SHEET

1шт.

44

131428A2

SHEET

1шт.

45

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.

46

1984343C1

HOOK

Air Pipe

1шт.

47

231-4115

NUT,5/16"-18, GB

1шт.

48

86624005

CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

49

1349843C1

HINGE

Upper Female

1шт.

50

1270014C1

HINGE

Male

1шт.

51

1349860C1

PIN,7.94mm OD x 129mm L

1шт.

52

298854A1

HOSE PROTECTION

1шт.

53

1984191C1

AIR HOSE

3шт.

54

1984190C1

AIR HOSE

1шт.

55

284528A1

HOSE,1320.80 mm

1шт.

56

284897A1

HOSE PROTECTION

1шт.

57

386170C1

CABLE TIE,.30" x 27 1/2"

10шт.

58

1988871C1

TUBE,127.9 mm ID, 124.6 mm OD

1шт.

59

112449A1

SUPPORT

1шт.

60

1988872C1

TUBE

1шт.

61

175231A1

CAP

2шт.

62

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

2шт.

63

1546291C1

EXTENSION

1шт.

64

1546294C1

STUD

1шт.

65

1546293C1

STUD

1шт.

66

37-11236

DOWEL,3/4" x 2 1/4"

1шт.

67

37-11632

DOWEL,1" x 2"

1шт.

68

86512372

SERRATED NUT,Flg, USR, 3/4"-10

1шт.

69

232-5318

FLANGE NUT,Flg, 1/2"-13

1шт.

70

84209

BOLT,Hex Serr Flg, 1/2" x 1 1/4"

7шт.

71

87744335

DRIVE SHAFT

Main

1шт.

72

1984234C5

SHAFT ASSY.

Cross Drum Drive

2шт.

73

297613A1

CHANNEL

4RW. LH

1шт.

74

120903A1

SUPPORT

1шт.

75

128507A1

BRACKET

1шт.

76

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

77

136-166

COTTER PIN,Int, 9/32" x .120"

1шт.

78

137882A1

PIN

1шт.

79

86512371

SERRATED NUT,Flg, USR, 1/2"-13

4шт.

80

189300A1

BRACKET

1шт.

81

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1шт.

82

136-166

COTTER PIN,Int, 9/32" x .120"

1шт.

83

86632562

HEADED PIN,5/8" x 2", G2

1шт.

84

128503A2

BRACKET

1шт.

85

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

86

84238341

CHANNEL

1шт.

87

128502A2

PLATE

4шт.

88

190123C1

SPACER,1/2" Tube x 1"

12шт.

89

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

12шт.

90

87573696

STEP

1шт.

91

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

92

363224A1

PANEL

4RW, LH

1шт.

93

363223A1

HOOD

4RW, RH

1шт.

94

87327192

SCREW,Truss HD, 1/4" x 3/4", Gr 8

12шт.

95

523282

SERRATED NUT,Flg, USR, 1/4"-20

12шт.

96

1288934C1

DECAL

1 Drum

1шт.

97

1288935C1

DECAL

2 Drum

1шт.

98

1288936C1

DECAL

3 Drum

1шт.

99

1288937C1

DECAL

4 Drum

1шт.

100

87596841

CAP

2шт.

101

87323227

HOSE,4.76mm ID x 711mm L, SAE 100R7

1шт.

102

BN2290291

BUSHING

1шт.

103

87266873

NIPPLE

1шт.

104

87016920

TEE,1/4"-18 Female

1шт.

105

106212A1

CONNECTOR, ELEC

1шт.

106

128506A2

BAR

1шт.

107

383716A1

SHIELD

1шт.

108

111491A1

PLUG

2шт.

109

375413A1

CAP

1шт.

110

412270

SNAP RING,M120 x 4mm Thk, Internal

1шт.

111

282112A4

DOOR

Rear Rotor

1шт.

112

495-81023

WASHER,17/32" x 1 1/4" x .030"

12шт.

113

1326408C2

STUD,25.4mm OD x 52.3mm L

2шт.

114

1326407C1

RETAINER

2шт.
