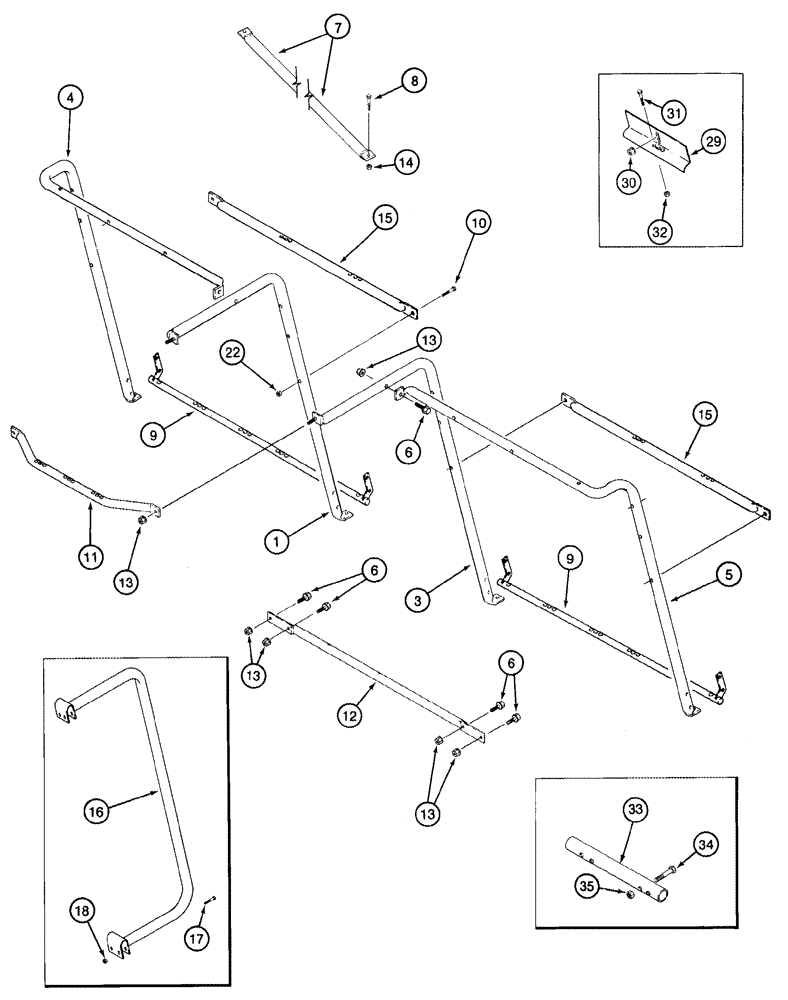

Запчасти Case IH CPX420 (09C-17) - CONVEYOR CHUTE SUPPORTS (15) - HANDLING SYSTEM

1

124361A2

TUBE

Left Hand

1шт.

3

124362A3

TUBE

Right Hand

1шт.

4

177135A3

TUBE

Left Hand

1шт.

5

1546357C5

SUPPORT TUBE,1335, 552 mm Length

Right Hand

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

7

1546356C1

TUBE,31.75 mm OD, 1066 mm Length

2шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

15шт.

9

119618A5

SUPPORT

Outer, Lower

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

14шт.

11

1546355C2

TUBE,31.75 mm OD, 1100, 92 mm Length

Center Pipe, Upper

1шт.

12

1984388C1

SUPPORT TUBE,1180 mm Length

Pipe Support

1шт.

13

231-5146

FLANGE NUT,3/8"-16

8шт.

14

231-4116

NUT,3/8"-16, GB

20шт.

15

1546361C4

TUBE,31.75 mm OD, 1135 mm Length

Side Pipe

2шт.

16

235701A2

GRAB RAIL

Conveyor Pipe

1шт.

17

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

18

231-4115

NUT,5/16"-18, GB

4шт.

Additional 4 Row Parts

1шт.

29

127588A1

CLAMP

Chute

2шт.

30

231-5146

FLANGE NUT,3/8"-16

3шт.

31

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

32

230-4114

NUT,1/4"-20, GA

2шт.

33

120376A1

TUBE,25.4 mm OD, 255 mm Length

Skip Row Extension

1шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

35

231-4116

NUT,3/8"-16, GB

1шт.
