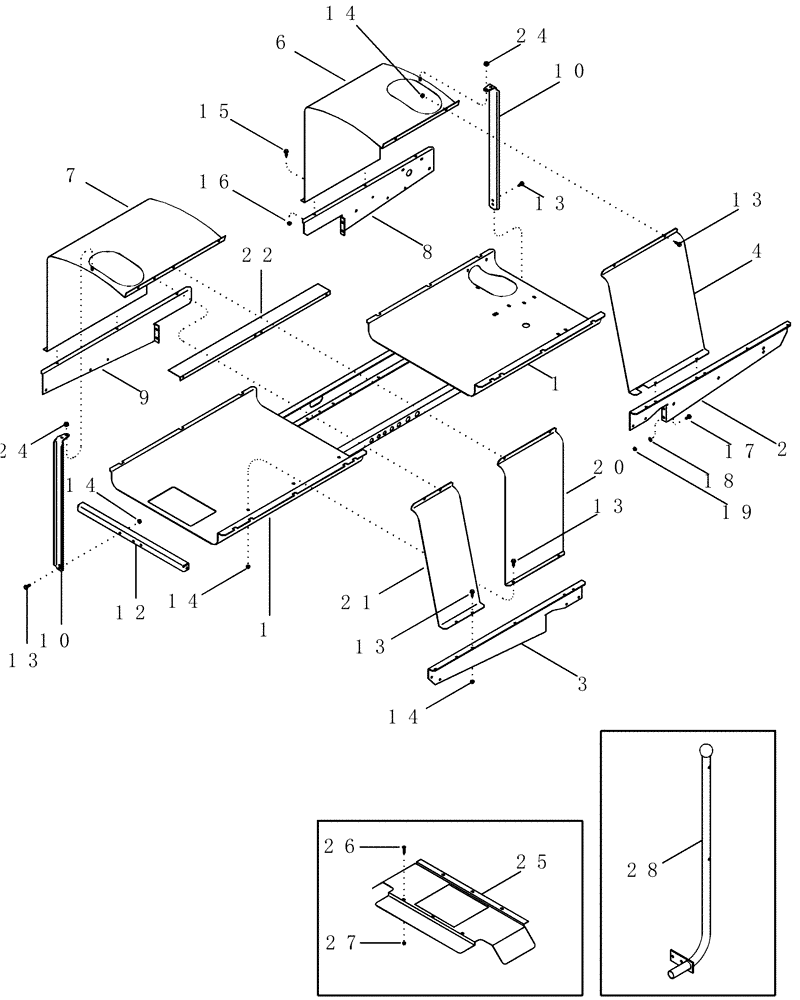

Запчасти Case IH CPX420 (09B-02) - TANK SUPPORTS - WATER AND LUBE (14) - WATER SYSTEM

1

87430012

SADDLE ASSY.

Water Tank

1шт.

2

1984394C3

BRACKET

Front Support, Left Hand Side

1шт.

3

1984395C2

SUPPORT

Front Support, Right Hand Side

1шт.

4

86984091

COVER

Left Hand Front

1шт.

6

128250A1

COVER

Left Hand Rear

1шт.

7

128252A1

COVER

Right Hand Rear

1шт.

8

1984396C2

BRACKET

Rear Support, Left Hand

1шт.

9

47744631

BRACKET

Rear Support, Right Hand

1шт.

10

1984441C2

BRACKET

2шт.

12

47744638

ANGLE

1шт.

13

409-7612

BOLT,3/8"-16 x 1.09" OAL

23шт.

14

231-5146

FLANGE NUT,3/8"-16

25шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

6шт.

16

231-1446

NUT,3/8" - 16, Gr 5

6шт.

17

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

19

425-108

NUT,1/2" - 13, Gr 5

4шт.

20

128248A1

COVER

Water Tank, Right Hand

1шт.

21

128249A1

COVER

Lube Tank

1шт.

22

124885A3

CHANNEL

Between Water Tank and Basket Supports

1шт.

23

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

24

231-5146

FLANGE NUT,3/8"-16

4шт.

25

279081A1

COVER

1шт.

26

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

27

230-4114

NUT,1/4"-20, GA

2шт.

28

447802A1

POST

Service Platform

1шт.

29

47689736

HANDRAIL

RH Ladder Access

1шт.
