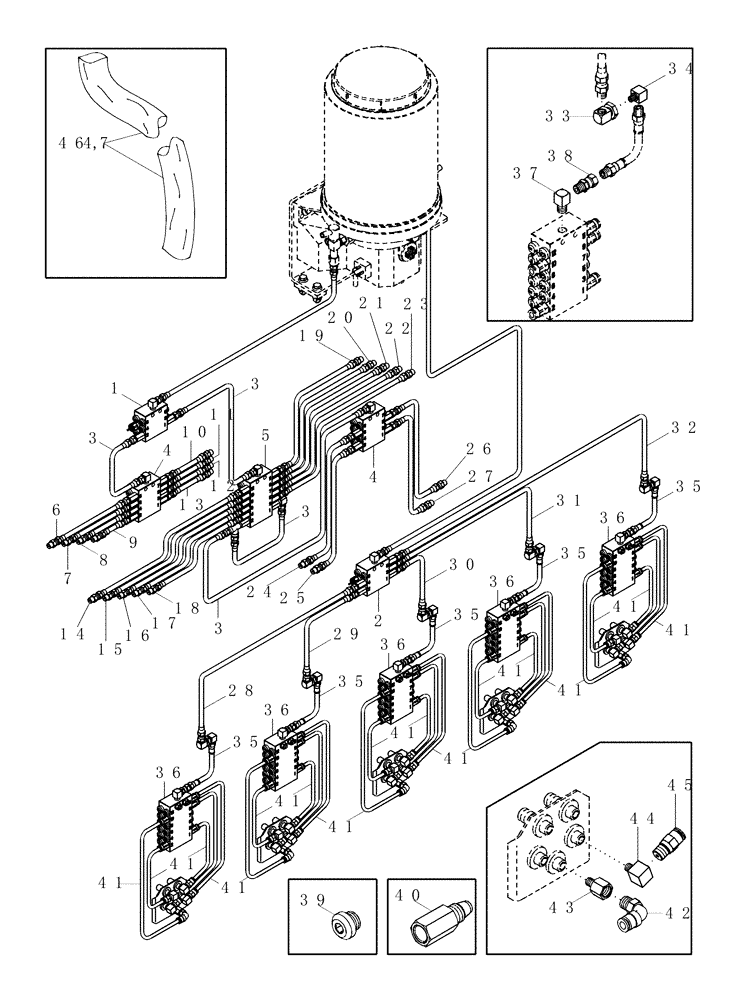

Запчасти Case IH CPX420 (09A-47) - LUBE LINES - 5 ROW NARROW (13) - PICKING SYSTEM

1

REF

INSTRUCTION

Valve, Chassis Lube

1шт.

See Figure 09A-45, REF 4

1шт.

2

REF

INSTRUCTION

Valve, Drum Lube

1шт.

See Figure 09A-45, REF 4A

1шт.

3

429358A2

HOSE,3.17mm ID x 280mm L, SAE 100R7

Lube

4шт.

4

429617A1

VALVE

Lube, 8 Port without Indicator Pin

2шт.

See Figure 09A-45, REF 6

1шт.

5

429614A1

VALVE

Lube, 12 Port without Indicator Pin

1шт.

See Figure 09A-45, REF 5

1шт.

6

87323243

HOSE,3.17mm ID x 2692mm L, SAE 100R7

Grease Filled, Right Hand Radius Rod, 2692 mm (106 in) Long

1шт.

7

87323246

HOSE,3.17mm ID x 2337mm L, SAE 100R7

Grease Filled, Right Hand Lift Pivot, 2337 mm (92 in) Long

1шт.

8

87323272

HOSE,3.17mm ID x 3327mm L, SAE 100R7

Grease Filled, Right Hand Toolbar Pivot, 3327 mm (131 in) Long

1шт.

9

87323250

HOSE,3.17mm ID x 3556mm L, SAE 100R7

Grease Filled, Right Hand Toolbar Retainer Pivot, 3556 mm (140 in) Long

1шт.

10

87323243

HOSE,3.17mm ID x 2692mm L, SAE 100R7

Grease Filled, Left Hand Rear Radius Rod, 2692 mm ( 106 in) Long

1шт.

11

87323245

HOSE,3.17mm ID x 3150mm L, SAE 100R7

Grease Filled, Left Hand Lift Arm Pivot, 3150 mm (124 in) Longø

1шт.

12

87323271

HOSE,3.17mm ID x 4191mm L, SAE 100R7

Grease Filled, Left Hand Toolbar Pivot, 4191 mm (165 in) Long

1шт.

13

87323248

HOSE,3.17mm ID x 4318mm L, SAE 100R7

Grease Filled, Left Hand Toolbar Retainer Pivot, 4318 mm (170 in) Long

1шт.

14

87323253

HOSE,3.17mm ID x 3023mm L, SAE 100R7

Grease Filled, Right Hand Lift Cylinder Pin, 3023 mm (119 in) Long

1шт.

15

87323255

HOSE,3.17mm ID x 2845mm L, SAE 100R7

Grease Filled, Rear Right Hand Lift Cylinder Pin, 2845 mm (112 in) Long

1шт.

16

87323275

HOSE,3.17mm ID x 2590mm L, SAE 100R7

Grease Filled, Right Hand Rockshaft Pivot, 2590 mm (106 in) Long

1шт.

17

87323258

HOSE,3.17mm ID x 914mm L, SAE 100R7

Grease Filled, Front Fan Idler Pivot, 914 mm (36 in) Long

1шт.

18

87323275

HOSE,3.17mm ID x 2590mm L, SAE 100R7

Grease Filled, Lower Rockshaft Cylinder Pin, 2590 mm (106 in) Long

1шт.

19

87323251

HOSE,3.17mm ID x 3861mm L, SAE 100R7

Grease Filled, Front Left Hand Lift Cylinder Pin, 3861 mm (152 in) Long

1шт.

20

87323254

HOSE,3.17mm ID x 3505mm L, SAE 100R7

Grease Filled, Rear Left Hand Lift Cylinder Pin, 3505 mm (138 in) Long

1шт.

21

87323273

HOSE ASSY.

Grease Filled, Left Hand Rockshaft Pivot, 3455 mm (136 in) Long

1шт.

22

87323256

HOSE,3.17mm ID x 2159mm L, SAE 100R7

Grease Filled, Rear Fan Tightener, 2159 mm (85 in) Long

1шт.

23

87323254

HOSE,3.17mm ID x 3505mm L, SAE 100R7

Grease Filled ,Upper Rockshaft Cylinder Pin, 3505 mm (138 in) Long

1шт.

24

87323242

HOSE,3.17mm ID x 1397mm L, SAE 100R7

Grease Filled, Front Fan Front Bearing, 1397 mm (39-1/2 in) Long

1шт.

25

87323244

HOSE,3.17mm ID x 1041mm L, SAE 100R7

Grease Filled, Front Fan Rear Bearing, 1041 mm (41 in) Long

1шт.

26

87323241

HOSE,3.17mm ID x 2184mm L, SAE 100R7

Grease Filled, Rear Fan Front Bearing, 2184 mm (86 in) Long

1шт.

27

87323243

HOSE,3.17mm ID x 2692mm L, SAE 100R7

Grease Filled, Rear Fan, Rear Bearing, 2692 mm (106 in) Long

1шт.

28

87323237

HOSE,3.17mm ID x 6198mm L, SAE 100R7

Grease Filled, Drum #5 Lube Supply, 6198 mm (244 in) Long

1шт.

29

87323230

HOSE,4.76mm ID x 5385mm L, SAE 100R7

Grease Filled, Drum #4 Lube Supply, 5385 mm (212 in) Long

1шт.

30

87323236

HOSE,3.17mm ID x 5715mm L, SAE 100R7

Grease Filled, Drum #3 Lube Supply, 5715 mm (225 in) Long

1шт.

31

87323233

HOSE,4.76mm ID x 5563mm L, SAE 100R7

Grease Filled, Drum #2 Lube Supply, 5563 mm (219 in) Long

1шт.

32

87323232

HOSE,4.76mm ID x 6274mm L, SAE 100R7

Grease Filled, Drum #1 Lube Supply, 6274 mm (247 in) Long

1шт.

33

429344A1

ELBOW

blkhd 1/8 PT x 1/4 NF

5шт.

34

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

5шт.

35

429348A1

HOSE

Grease Filled, 900 mm (35-7/16 in) Long

5шт.

429333A1

VALVE

Drum Lube, Inc. 36 - 40

5шт.

36

429614A1

VALVE

Lube, 12 Port without Indicator

1шт.

37

219-82

ELBOW,90 Degree, 1/8"-27

1шт.

38

429343A1

FITTING

1/8 PT sw

1шт.

39

429615A1

PLUG

7шт.

40

700714008

HYD CONNECTOR

5шт.

41

430140A1

TUBE

Grease Filled, 750 mm (29-1/2 in) Long, Cut From 430134A1

25шт.

42

429349A1

ELBOW

1/8 PT x 1/4 sw

5шт.

43

429618A1

BUSHING

1/4 NF x 1/8 PT str

5шт.

44

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

42шт.

45

429352A1

FITTING

1/4 tube x 1/8 PT str

42шт.

46

87323276

SLEEVE,60.3mm ID x 1525mm L

Hose Cordura Right and Left Hand Sides

2шт.

47

87323277

HOSE,60.3mm ID x 1220mm L

Hose Cordura, Left Hand Side

1шт.
