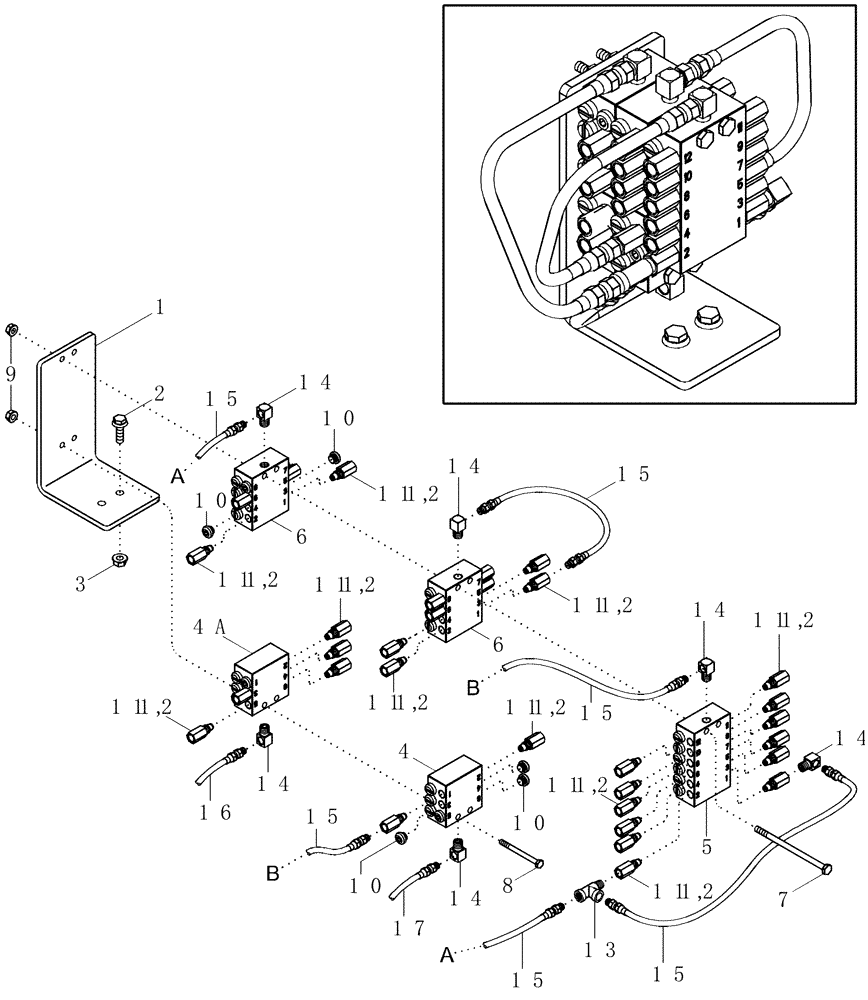

Запчасти Case IH CPX420 (09A-45) - AUTOMATIC LUBRICATION SYSTEM VALVES - 5 ROW (13) - PICKING SYSTEM

1

87319436

BRACKET

Divider Valve

1шт.

2

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

4

700706835

MANIFOLD

Valve, Chassis Divider, 6 Port with Indicator Pin

1шт.

4a

700706835

MANIFOLD

Valve, Drum Divider, 6 Port with Indicator Pin

1шт.

5

429614A1

VALVE

Lube, Chassis, 12 Port w/o Indicator Pin

1шт.

6

429617A1

VALVE

Lube, Chassis, 8 Port w/o Indicator Pin

2шт.

7

413-472

BOLT,Hex, 1/4" - 20 x 4-1/2", Gr 5

2шт.

8

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

2шт.

9

231-5344

FLANGE NUT,Flg, 1/4"-20

4шт.

10

429615A1

PLUG

10шт.

11

700720095

SAFETY VALVE

Adapter

32шт.

12

700706678

FERRULE

Sleeve

32шт.

13

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

1шт.

14

219-82

ELBOW,90 Degree, 1/8"-27

5шт.

15

429358A2

HOSE,3.17mm ID x 280mm L, SAE 100R7

Lube, 280 mm (11 in) Long

4шт.

16

87323226

HOSE

Drum Lube Supply, 711mm (28 in) Long

1шт.

17

87323227

HOSE,4.76mm ID x 711mm L, SAE 100R7

Chassis Lube Supply, 787 mm (31 in) Long

1шт.
