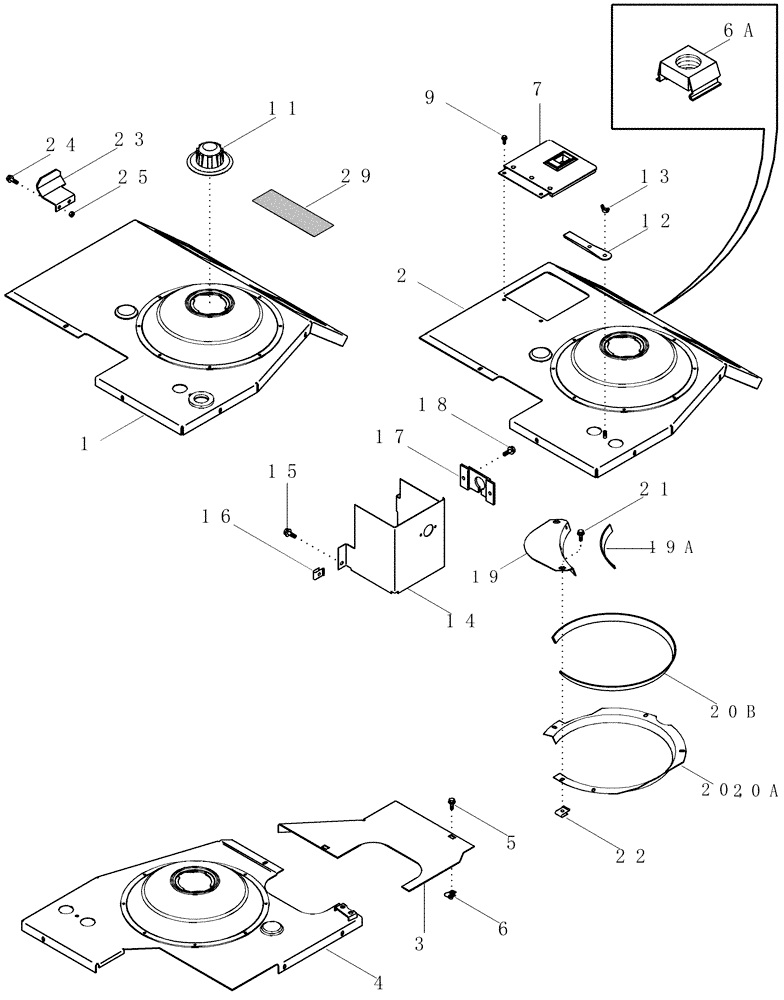

Запчасти Case IH CPX420 (09A-36) - COVERS (13) - PICKING SYSTEM

1

1982627C2

COVER ASSY

Upper, Front, 4 Row Wide, Drums #1, 3, 4

1шт.

See Figure 09A-37

1шт.

2

1982724C1

COVER ASSY

Upper, Front, 4 Row Wide, Drum #2, Operator Presence System

1шт.

See Figure 09A-37

1шт.

3

1990261C2

COVER ASSY

Top, Center, All 4 and 5 Row

1шт.

See Figure 09A-37

1шт.

4

1982764C2

COVER ASSY

Top, Rear, All 4 and 5 Row

1шт.

See Figure 09A-37

1шт.

5

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

19шт.

6

104329C1

NUT

1/4

13шт.

6a

673689R1

NUT

Cage 1/4

4шт.

7

283731A1

COVER ASSY

Access, Large

1шт.

9

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1шт.

11

1982787C2

PLUG

Rotor

2шт.

12

1982894C2

LOCKING PLATE

Doffer Adjustment

2шт.

13

129-409

WING NUT,1/4"-20

2шт.

14

87454862

CHANNEL

Tether Storage, Drum # 2

1шт.

15

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

17

87454863

SUPPORT

Connector Mounting, Drum # 2

1шт.

18

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

1шт.

19

433777A1

COVER

Access, Inc. 19A

2шт.

19a

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

433775A1

RING

Rotor Guard, Left Hand, Inc. 20A, 20B

1шт.

20a

1988726C1

RING

1шт.

20b

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

433776A1

RING

Rotor Guard, Right Hand, Inc. 20A, 20B

1шт.

20a

1988727C1

RING

1шт.

20b

NSS

NOT SOLD SEPARAT

Seal

1шт.

21

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

14шт.

22

104329C1

NUT

1/4

14шт.

23

1983176C2

BRACKET

Rotor Wrench, Drum # 2

1шт.

24

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

29

D55216

PAD,2" x 9"

2 x 9 in, Adhesive Back

2шт.
