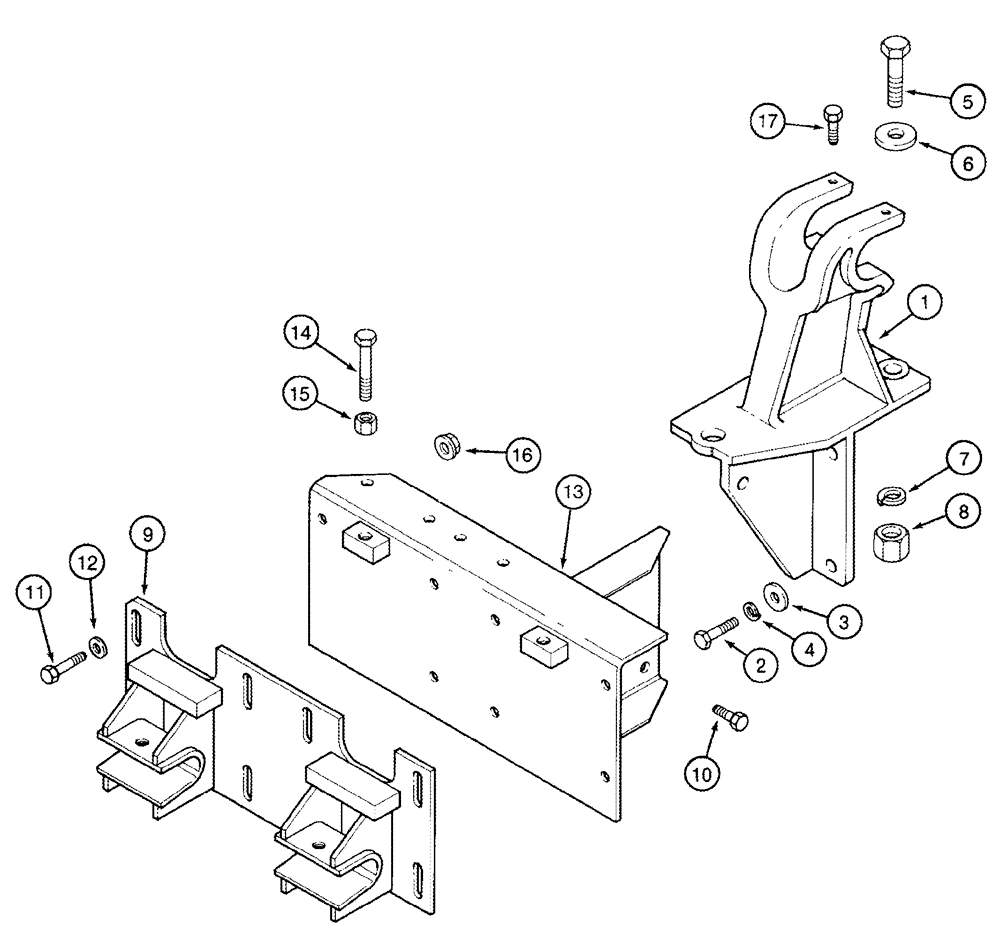

Запчасти Case IH CPX420 (09A-33) - DRUM LIFT SUPPORT (13) - PICKING SYSTEM

1

1982457C3

SUPPORT

Radius Rod, Right Hand

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

3

495-11053

WASHER,1/2", SAE

3шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

6

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.

7

492-11062

BEARING WASHER,5/8"

2шт.

8

425-1010

NUT,5/8"-11, G5

2шт.

9

1984413C3

SUPPORT

Pivot

1шт.

10

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

3шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

9шт.

12

496-41041

WASHER,13/32" x 1 1/8" x .134"

11шт.

12

80680

LOCK WASHER,3/8 0.381 CST ZND

9шт.

13

1984410C3

SUPPORT

Drum

1шт.

14

113-476

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5, Full Thd

2шт.

15

425-108

NUT,1/2" - 13, Gr 5

4шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

16

231-5146

FLANGE NUT,3/8"-16

6шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
