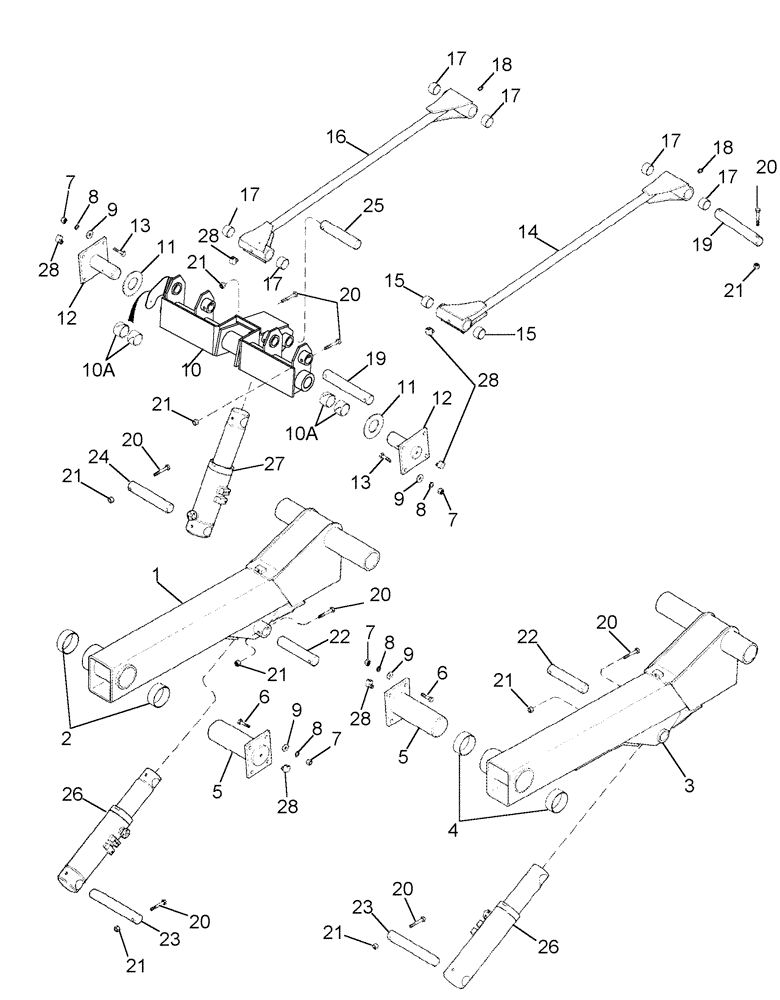

Запчасти Case IH CPX420 (09A-31) - DRUM LIFT ARMS - 5 ROW NARROW (13) - PICKING SYSTEM

1

1983036C6

LOWER LINK

Left Hand, Inc. 2

1шт.

2

115792A1

BUSHING

2шт.

3

1983037C6

LOWER LINK

Right Hand, Inc. 4

1шт.

4

115792A1

BUSHING

2шт.

5

1983050C2

PIN

2шт.

6

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

8шт.

7

429-108

NUT,1/2"-13, G8

16шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

9

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

16шт.

10

1982981C2

PIVOT

Kickback, Inc. 10A, Serial Range: -Y6T011011

1шт.

10

87366220

PIVOT ASSY.

Kickback, Inc. 10A, Start Serial: Y6T011011

1шт.

10a

669644R1

BUSHING

4шт.

11

495-31238

WASHER,2.38" ID x 4.75" OD x 0.22" Thk

2шт.

12

1983044C1

PIN

Kickback Pivot

2шт.

13

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

8шт.

14

1982964C1

ROD

Rear Radius, Right Hand, Inc. 15

1шт.

15

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

4шт.

16

1983171C1

ROD

Rear Radius, Left Hand, Inc. 17

1шт.

17

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

4шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

19

1982990C2

PIN

4шт.

20

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

14шт.

21

231-4138

LOCK NUT,1/2"-13, GB

14шт.

22

1983053C2

PIN

Lift Cylinder, Upper

2шт.

23

1983054C2

PIN,44.21mm OD x 301mm L

Lift Cylinder, Lower

2шт.

24

1982991C1

PIN

Kickback Cylinder, Lower

1шт.

25

1983053C1

PIN

Kickback Cylinder, Upper

1шт.

26

107784A1

CYLINDER ASSY.

Drum Lift, 98 ID x 272 mm strk, Serial Range: -Y6T011031

2шт.

See Figure 08-23

1шт.

26

87272663

HYDRAULIC CYLINDER,88.9mm Rod, 271.5mm Stroke

Drum Lift, Start Serial: Y6T011031

2шт.

See Figure 08-23A

1шт.

27

107785A1

CYLINDER ASSY.

Drum Tilt, 102 ID x 185 mm strk, Serial Range: -Y6T011031

1шт.

See Figure 08-38

1шт.

27

87272664

CYLINDER ASSY.,88.9mm Rod, 184.6mm Stroke

Drum Tilt, Start Serial: Y6T011031

1шт.

See Figure 08-38A

1шт.

28

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

6шт.

29

295528A1

SWITCH

Proximity, Drum Lift, Drum Tilt, Not Illustrated

3шт.

See Figure 04-08

1шт.

30

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Not Illustrated

1шт.

31

461-32516

HEX SOC SCREW,1/4"-20 x 1"

Not Illustrated

4шт.
