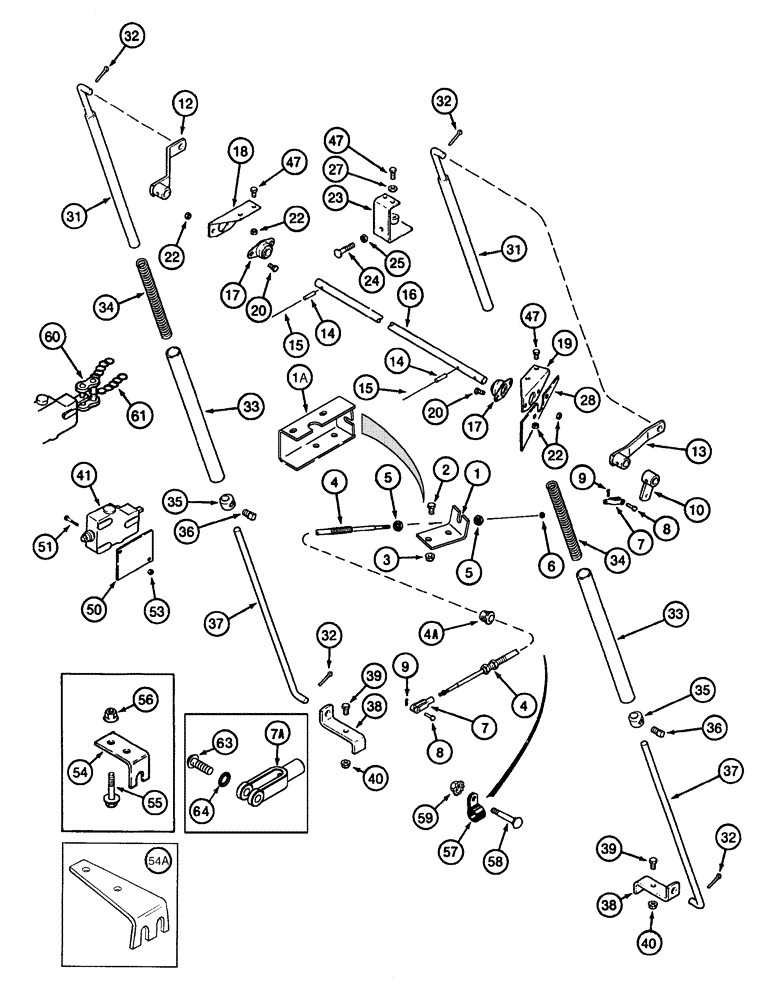

Запчасти Case IH CPX420 (09A-30) - HEIGHT CONTROL LINKAGE (13) - PICKING SYSTEM

431241A1

PACKAGE

Automatic Height Control without Ladder Latch, Inc. 1, 2, 3, 4A, 10 - 18, 20 - 28, 47; See Figure 09A-38

1шт.

448177A1

PACKAGE

Automatic Height Control with Ladder Latch, Inc. 1A, 2, 3, 7A, 10 - 18, 20 - 25, 28, 47; Also Includes: See Figure 09A-39

1шт.

1

1984034C1

BRACKET

Cable Adjustment

1шт.

1a

437570A2

LATCH

Drum Ladder, Cable Adjustment, If Equipped

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

1349864C1

CABLE,4064mm L

Inc. 5, 6

2шт.

4

116680A1

CABLE,3353mm L

3353 mm (132 in), Inc. 5, 6, Additional Row Sensing Package

2шт.

4a

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 ID, Rubber

1шт.

5

425-157

JAM NUT,Jam, 7/16"-20, G5

4шт.

6

NSS

NOT SOLD SEPARAT

No. 10-32, Nut

2шт.

7

1338454C2

CLEVIS

Cable

4шт.

7a

86991114

CLEVIS COUPLING

Drum Height Control

4шт.

8

427-3103

CLEVIS PIN,4.78mm OD x 26.19mm L

3/16 x 1-1/32

4шт.

9

432-48

COTTER PIN,1/16" x 1/2"

4шт.

10

1984026C1

ARM

Cable and Stop

1шт.

12

1982690C1

ARM

Pivot, Large Offset

1шт.

13

1982715C1

ARM

Pivot, Small Offset

1шт.

14

438-11616

LOCK PIN,1/4" x 1", Slotted

3шт.

15

1329485C2

ELECTRICAL WIRE

WIRE Retaining

3шт.

16

1983199C1

SHAFT,15.88mm OD x 668.6mm L

Pivot

1шт.

17

164864C91

FLANGE,15.89mm ID

2шт.

18

1982685C1

ANGLE BAR

Right Hand

1шт.

19

1982684C1

ANGLE BAR

Left Hand

1шт.

20

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

23

1982722C1

SUPPORT

Stop

1шт.

24

451-203

STUD

3/8 x 1-3/4

1шт.

25

425-106

NUT,3/8"-16, Cl 5

1шт.

27

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

2шт.

28

87409557

COVER

Automatic Height Control

1шт.

31

670890R91

ROD

Upper

2шт.

32

432-816

COTTER PIN,1/8" x 1"

4шт.

33

669058R1

TUBE,30.2 mm OD, 406.5 mm Length

Spring

2шт.

34

523677R1

SPRING

2шт.

35

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

Inc. 36

2шт.

36

485-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

2шт.

37

1982717C1

ROD

Lower

2шт.

38

1982738C1

ANGLE

With Automatic Height Control, If Used

2шт.

39

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

40

231-5146

FLANGE NUT,3/8"-16

2шт.

41

120813A2

CONTROL VALVE

Drum Height

2шт.

See Figure 08-22

1шт.

47

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

5шт.

50

1988976C1

PLATE

Valve Isolation

2шт.

51

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

53

231-1444

NUT,1/4"-20, GB

4шт.

54

1988977C2

SUPPORT

Cable Anchor

2шт.

54a

116678A1

SUPPORT

Cable Anchor, Additional Row Sensing Package

2шт.

55

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

18шт.

56

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

64

493-81000

LOCK WASHER,Ext-Int Tooth, #10

4шт.

57

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

58

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

59

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

60

87034815

LINK,15.88mm Pitch

No. 50, Connecting, Single Pitch

2шт.

61

116679A1

CHAIN

Link, Additional Row Sensing

4шт.

63

87013977

SCREW,Pan HD, #12 - 24 x 5/8"

4шт.

414357A1

PACKAGE

Plant Lifter with Automatic Height Control, Inc. 31 - 40 Above; Also Includes: See Figure(s) 09A-27, Ref. 1 - 36; 09A-28, Ref. 1 - 35

1шт.
