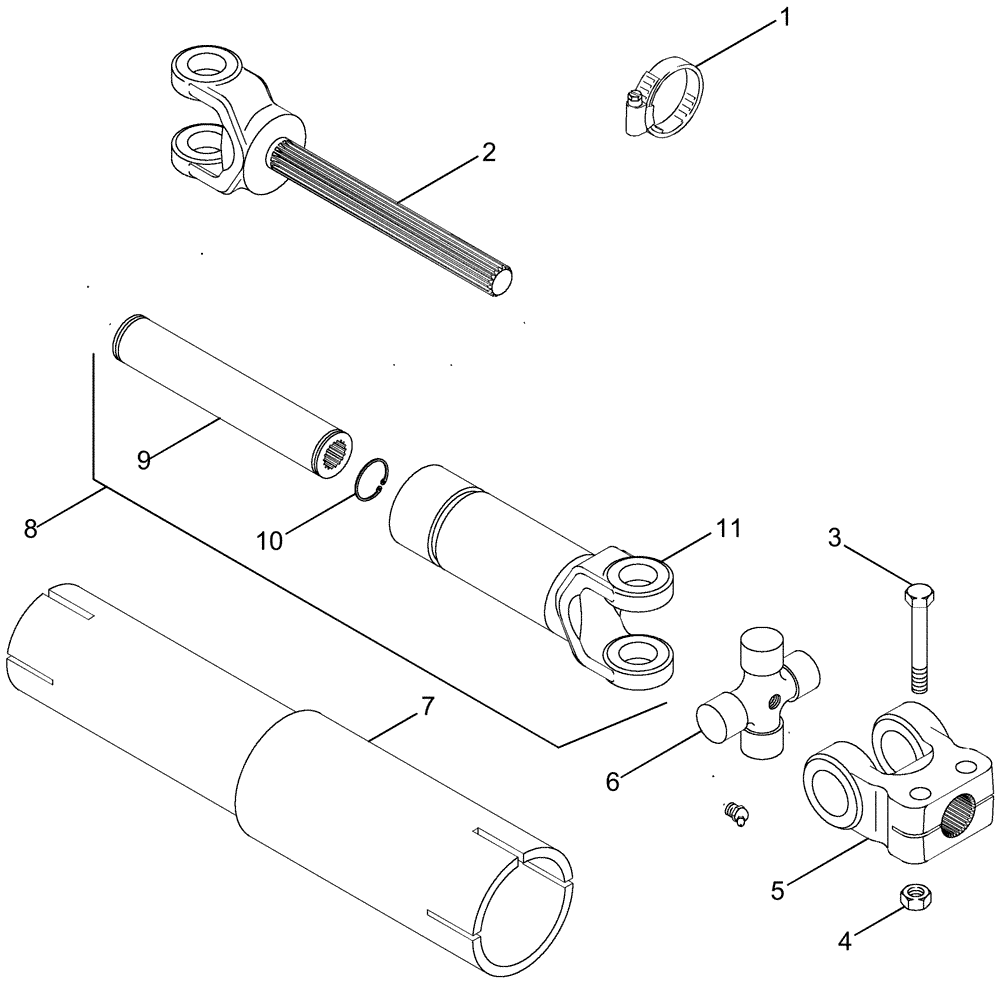

Запчасти Case IH CPX420 (09A-17) - DRIVE SHAFT - CROSS DRUM - 5 ROW NARROW - ASN Y6T011001 (13) - PICKING SYSTEM

87381633

SHAFT

Inc. 1 - 11

4шт.

1

214-3196

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

2шт.

2

87515920

CROSS SHAFT

1шт.

3

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

4шт.

4

231-1448

NUT,1/2"-13, GB

4шт.

5

87515918

CROSS SHAFT

1шт.

6

87049178

BEARING ASSY

1шт.

7

87366145

CROSS SHAFT

1шт.

8

87515921

CROSS SHAFT

Inc. 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Shaft

1шт.

10

NSS

NOT SOLD SEPARAT

Retaining Ring

2шт.

11

NSS

NOT SOLD SEPARAT

Tube

1шт.
