Запчасти Case IH CPX420 (09A-16) - DRIVE SHAFT - CROSS DRUM - 5 ROW NARROW - BSN Y6T011001 (13) - PICKING SYSTEM

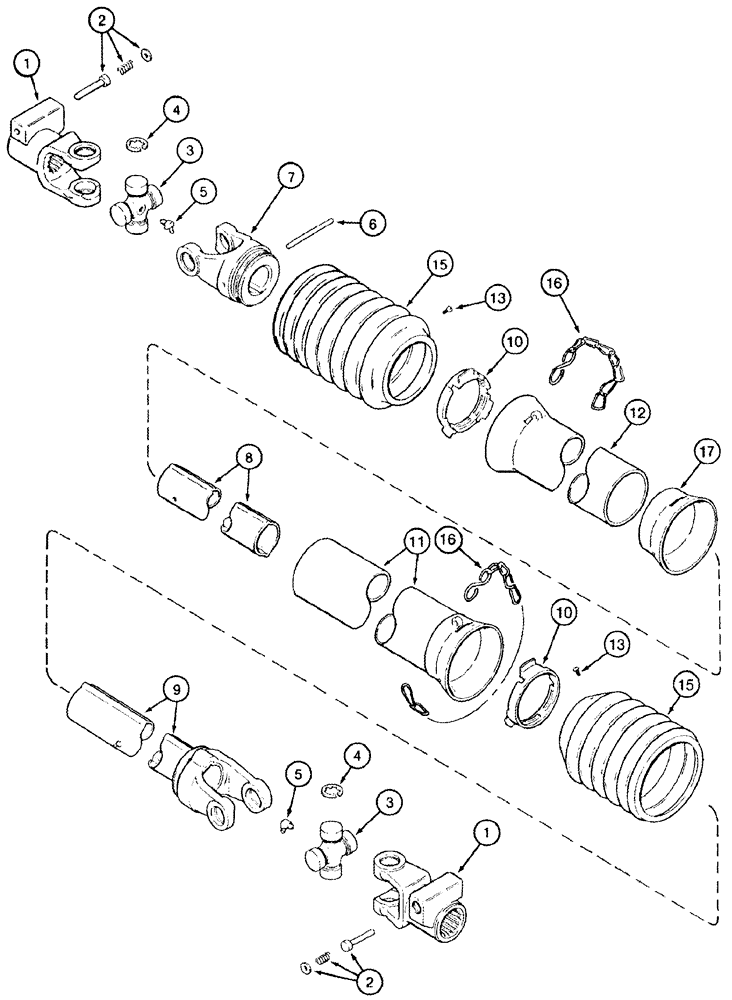

Схема запчастей Case IH CPX420 - (09A-16) - DRIVE SHAFT - CROSS DRUM - 5 ROW NARROW - BSN Y6T011001 (13) - PICKING SYSTEM
16
4
1
3
5
16
2
8
9
2
13
17
12
10
5
6
15
3
10
4
1
15
13
11
7

Артикул

Название

Примечание

Количество

1545945C3

SHAFT

Inc. 1 - 17

3шт.

1

293059A1

YOKE

2шт.

2

1281458C1

KIT

Pin

2шт.

1281444C1

KIT

Universal Joint, Inc. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

Joint, Universal, With Bearing

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Snap

4шт.

5

NSS

NOT SOLD SEPARAT

67-1/2 deg, Fitting, Grease

1шт.

6

738-11070

LOCK PIN,M10 x 70, Slotted

1шт.

7

1281445C1

YOKE

UNIVERSAL JOINT YOKE Inner Shaft

1шт.

8

293064A1

TUBE,34.5 mm OD, 245 mm Length

Inner Profile

1шт.

9

293065A1

COUPLING

Outer Shaft

1шт.

1984219C1

PACKAGE

Grease Fittings, Package of 10, Not Illustrated

1шт.

431790A1

SET OF PARTS

Cross Shaft Shield, Inc. 10 - 17

1шт.

10

1281450C1

RING

2шт.

11

NSS

NOT SOLD SEPARAT

Shield, Outer

1шт.

12

NSS

NOT SOLD SEPARAT

Shield, Inner

1шт.

13

108884A1

SCREW

Cone Shield

2шт.

14

NSS

NOT SOLD SEPARAT

Decal, Warning, Not Illustrated

1шт.

15

NSS

NOT SOLD SEPARAT

Shield, Cone

2шт.

16

293062A1

CHAIN (CE)

2шт.

17

431792A1

CONE

1шт.

Выбрано товаров: 21
