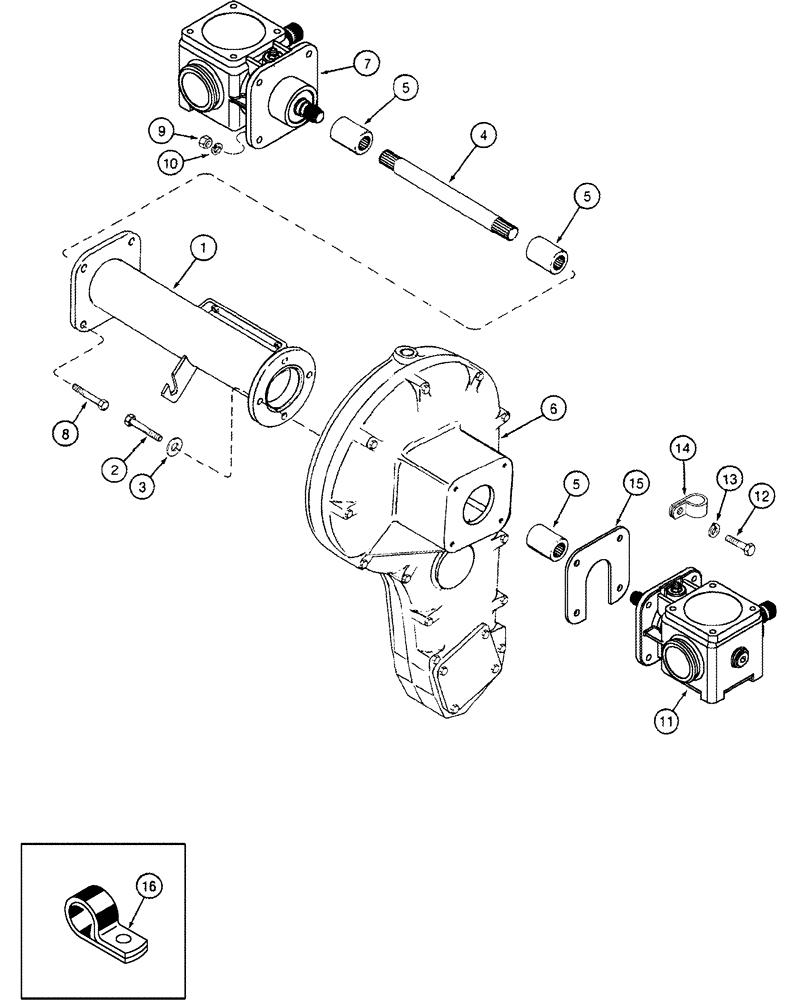

Запчасти Case IH CPX420 (09A-03) - DRUM DRIVE - GEARBOX COUPLERS AND SUPPORT (13) - PICKING SYSTEM

1

1342663C3

SUPPORT

Bevel Box

1шт.

2

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

4шт.

3

396-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

4

1342674C3

SHAFT

359 mm (14-1/8 in), 4 Row Wide, 5 Row Narrow

1шт.

5

1342672C2

COUPLING

3шт.

6

119860A3

DRIVE ASSY.

Drum

1шт.

See Figure 09A-02

1шт.

6

119860A3R

REMAN-GEARBOX

CPX420 CASE IH COTTON PICKER, Drum (5/05-8/06)

1шт.

6

119860A3C

CORE-GEARBOX

Return Number

1шт.

7

338161A2

GEARBOX ASSY

Drum Drive - Left Hand

1шт.

See Figure 09A-04

1шт.

338161A2R

REMAN-GEARBOX

CPX420 (5/05-8/06)

1шт.

338161A2C

CORE-GEARBOX

Return Number

1шт.

8

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

11

338162A2

GEARBOX ASSY

Drum Drive - Right Hand

1шт.

See Figure 09A-05

1шт.

12

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

14

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

14

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

1шт.

15

141377A1

SHIM

1шт.

16

87301362

CLAMP,76.2mm, Coat, 13.5mm Bolt Hole, P Type

3 in

2шт.
