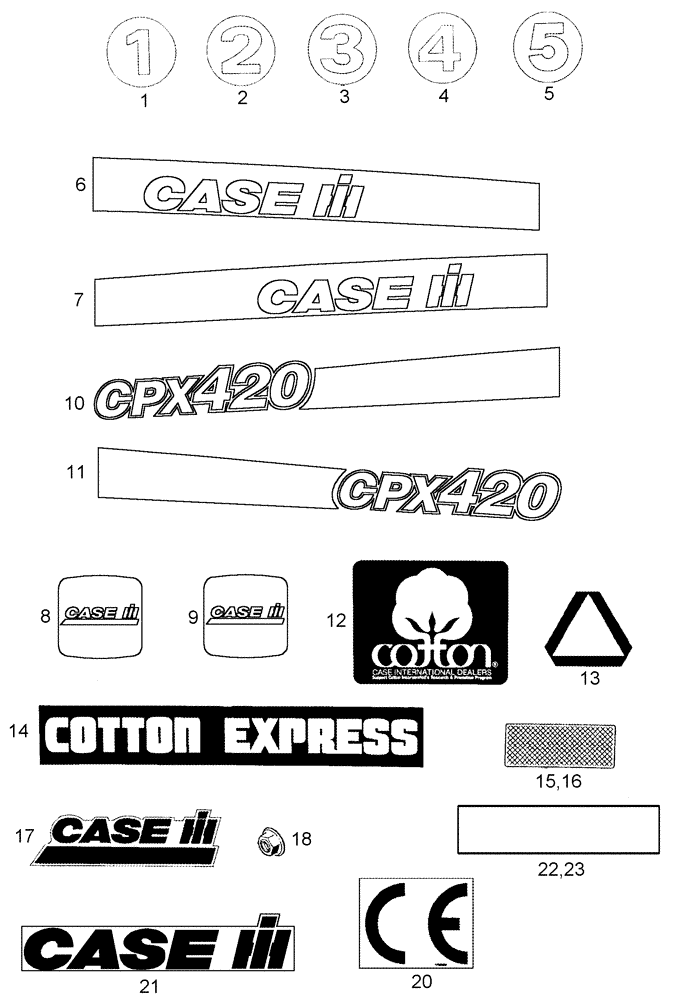

Запчасти Case IH CPX420 (09F-18) - DECALS (12) - CHASSIS

1

1288934C1

DECAL

Number '1' Drum

1шт.

2

1288935C1

DECAL

Number '2' Drum

1шт.

3

1288936C1

DECAL

Number '3' Drum

1шт.

4

1288937C1

DECAL

Number '4' Drum

1шт.

5

1545960C1

DECAL

Number '5' Drum

1шт.

6

87459235

DECAL

Stripe, Basket Door, Rear

1шт.

7

87459237

DECAL

Stripe, Right Hand Basket Wall, Rear

1шт.

8

87405724

EMBLEM

CASE IH

4шт.

9

87802966

EMBLEM

Aluminum

1шт.

10

87459234

DECAL

CPX420 , Basket Door, Front

1шт.

11

87459236

DECAL

CPX420 , RH Basket Wall, Front

1шт.

12

87142C2

DECAL

Cotton Logo

2шт.

13

311858A1

DECAL

SMV Emblem

1шт.

14

1987145C1

DECAL

Cotton Express

1шт.

15

1284365C2

REFLECTOR

Amber

1шт.

16

1284374C1

REFLECTOR,Reflector Red

Red

1-2шт.

17

86979306

EMBLEM

Case-IH, Outside Drums

1шт.

18

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

20

176262A1

DECAL

60 mm, CE Symbol, Spanish Language, European Models

1шт.

313050A5

PACKAGE

Spanish Language, European Models, 4 Row and 5 Row - All, Order Components

1шт.

See Figure(s) 09F-19 - 09F-22

1шт.

21

336605A1

DECAL

Case I-H, Rear Basket Wall

1шт.

22

311863A1

REFLECTOR

Red, 50 x 230 mm

1шт.

23

311865A1

REFLECTOR

Orange, 50 x 230 mm

1шт.
