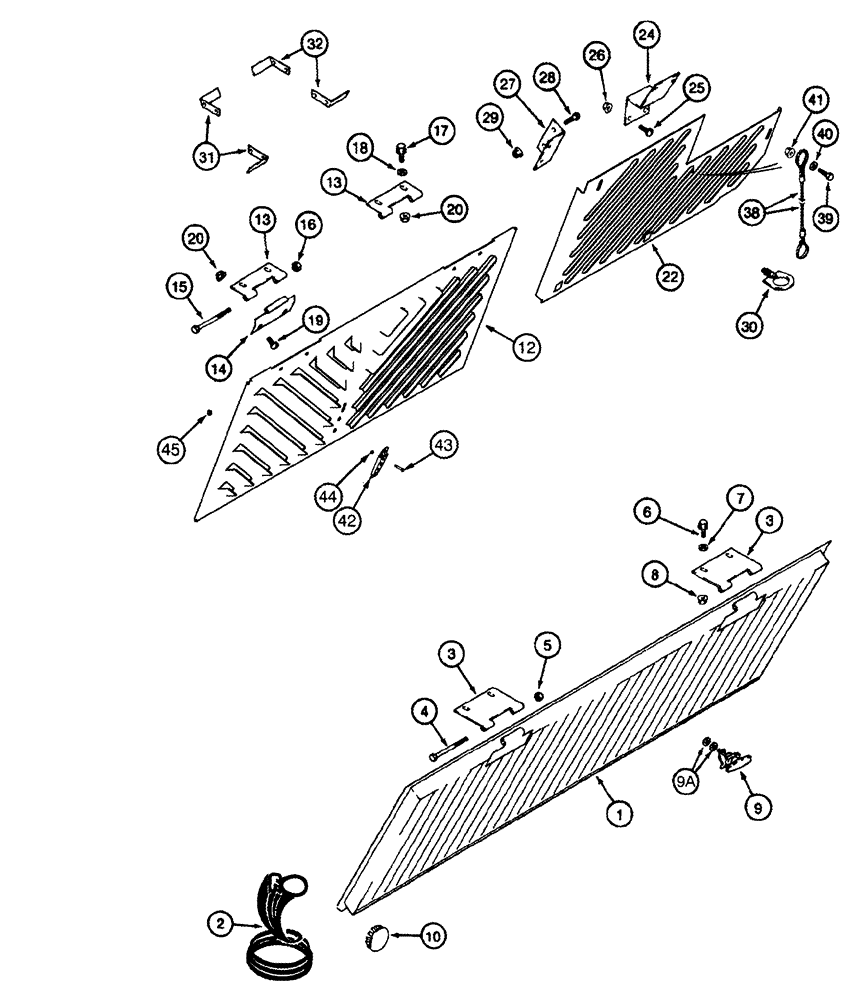

Запчасти Case IH CPX420 (09F-04) - SIDE SCREENS AND DOORS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
363036A1
FILTER
Rear
1шт.
2
87059C2
SEAL
4268 mm (168 in), Cut From 1263038C1
2шт.
3
1338422C1
HINGE
Screen
4шт.
4
413-596
BOLT,Hex, 5/16" - 18 x 6", Gr 5
4шт.
5
231-4115
NUT,5/16"-18, GB
4шт.
6
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
8шт.
7
495-81121
WASHER,.344" x 1 1/2" x .060"
8шт.
8
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
8шт.
9
1990265C2
HANDLE
Door
4шт.
9a
88612
WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk
12шт.
10
353-404
PLUG,Dome, .500" hole, Nylon
8шт.
12
407729A1
DOOR
Engine Compartment, With Slam Latch
2шт.
13
1990187C2
HINGE
Door, At Frame
4шт.
14
1990197C1
HINGE
Door
4шт.
15
413-596
BOLT,Hex, 5/16" - 18 x 6", Gr 5
4шт.
16
231-4115
NUT,5/16"-18, GB
4шт.
17
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
8шт.
18
495-81121
WASHER,.344" x 1 1/2" x .060"
8шт.
19
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
8шт.
20
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
14шт.
86983514
PACKAGE
Inc. 22, 23, Also Inc. 09F-01, Ref 42 - 52
1шт.
22
410707A2
PLATE
Fan Shield, Right Hand
1шт.
23
410705A2
PLATE
Fan Shield, Left Hand, Not Illustrated
1шт.
24
178027A2
SUPPORT
Fan Shield Cover, Lower Front
2шт.
26
231-5146
FLANGE NUT,3/8"-16
4шт.
27
178026A2
SUPPORT
Fan Shield Cover, Upper Rear
2шт.
28
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
30
188029C1
LATCH
Main, Drive Shield
4шт.
31
177559A1
SUPPORT
Fan Shield, Front Left Hand Side, Rear Right Hand Side
2шт.
32
177560A1
SUPPORT
Fan Shield, Front Right Hand Side, Rear Left Hand Side
2шт.
38
126396A1
CABLE
Anchor, If Equipped
2шт.
39
477-82512
SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"
4шт.
40
495-31031
WASHER,0.31" ID x 0.88" OD x 0.07" Thk
4шт.
42
142588A1
LOCK
Slam
2шт.
43
413-424
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
4шт.
45
495-11028
WASHER,1/4", SAE
20шт.
25
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
4шт.
Выбрано товаров: 40
