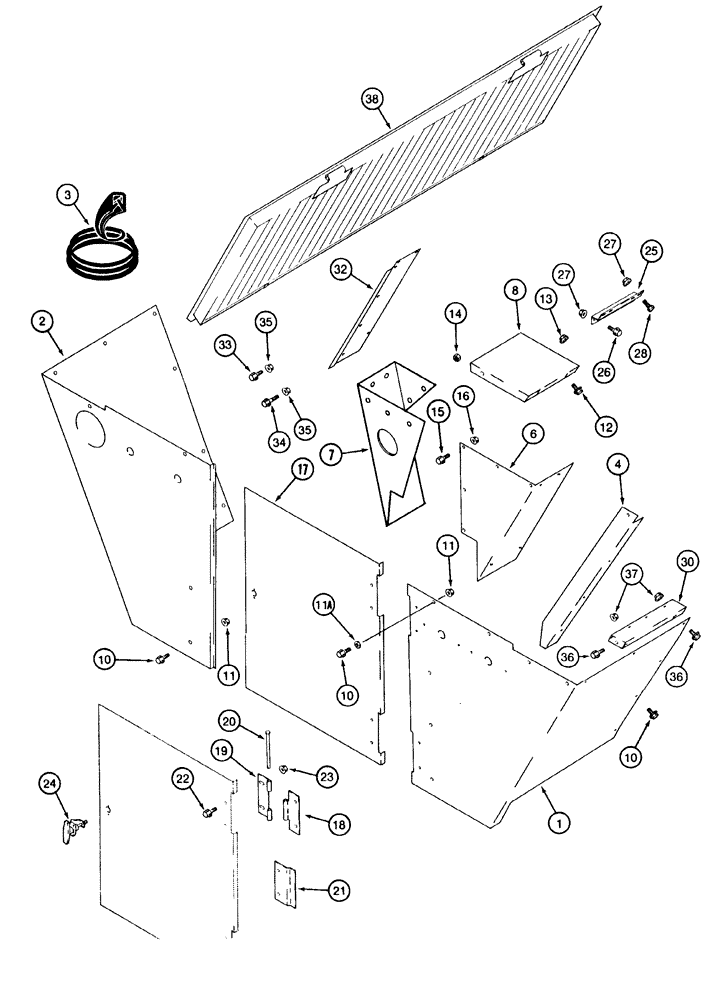

Запчасти Case IH CPX420 (09F-03) - SIDE SCREENS AND DOORS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
176850A2
SHIELD
Rear Outer, Right Hand
1шт.
2
176799A6
GUARD
Rear Outer, Left Hand, If Equipped
1шт.
3
87063C3
SEAL
414 mm (16-5/16 in), Cut from 1330108CX
1шт.
4
176433A2
CONDUIT
Vertical Front, Right Hand
1шт.
5
176431A2
CONDUIT
Vertical Front, Left Hand, Not Illustrated
1шт.
6
393218A1
COVER ASSY
Rear Inner, Right Hand
1шт.
7
87587545
COVER ASSY
Rear Inner, Left Hand, With Battery Disconnect
1шт.
7a
284315A1
DECAL
Battery Disconnect, Not Illustrated
1шт.
8
176497A2
COVER
Rear Screen, Right Hand
1шт.
9
176494A2
COVER
Rear Screen, Left Hand, Not Illustrated
1шт.
10
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
26шт.
11
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
15шт.
11a
495-11034
WASHER,5/16", SAE
4шт.
12
488837C1
SPRING NUT
Speed, 5/16
4шт.
13
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
14
488837C1
SPRING NUT
Speed, 5/16
16шт.
15
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
2шт.
16
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
17
177032A1
PANEL
Rear Door
1шт.
18
1990317C2
HINGE
Rear Door, Outer
2шт.
19
1990187C2
HINGE
Rear Door, Inner
2шт.
20
1349860C1
PIN,7.94mm OD x 129mm L
Hinge
2шт.
21
1990318C1
LARGE PLATE
PLATE, LARGE Door Stop
1шт.
22
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
8шт.
23
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
8шт.
24
1990266C1
HANDLE
Door, If Equipped
1шт.
25
1278813C3
SUPPORT
Cover, Lower
2шт.
26
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
2шт.
27
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
28
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
4шт.
29
176322A1
SUPPORT
Front Filler, Left Hand, Not Illustrated
1шт.
30
176325A1
SUPPORT
Front Filler, Right Hand
1шт.
31
177024A1
SUPPORT
Screen Frame, Left Hand, Not Illustrated
1шт.
32
177025A1
SUPPORT
Screen Frame, Right Hand
1шт.
33
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
4шт.
34
409-7524
BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl
1шт.
35
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
5шт.
36
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
22шт.
37
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
22шт.
38
363036A1
FILTER
Rear
2шт.
Выбрано товаров: 40
