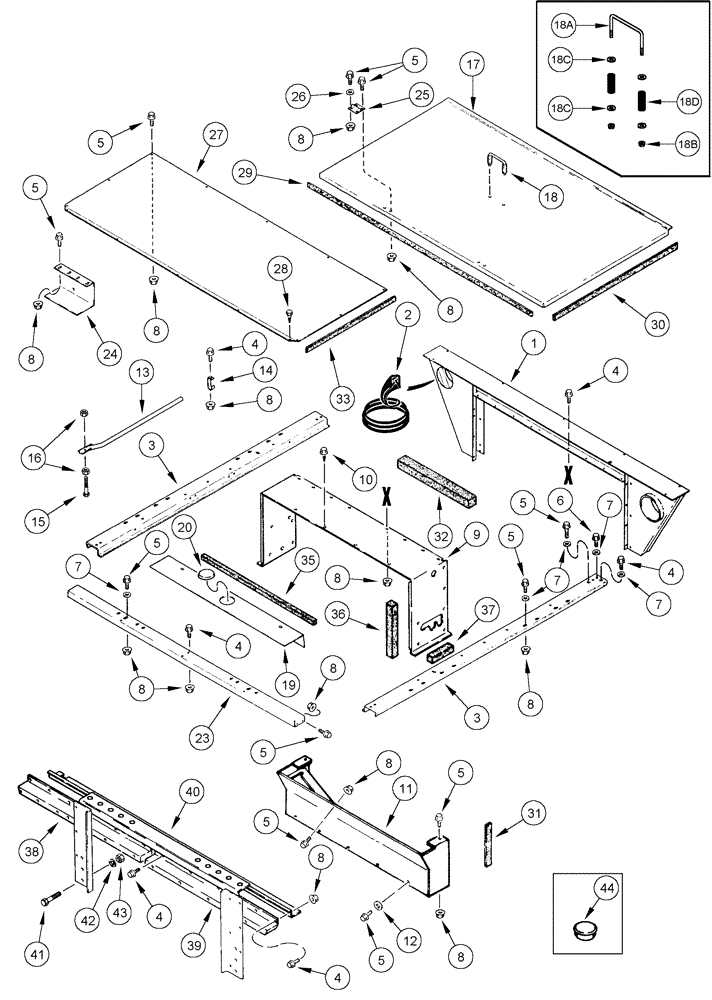

Запчасти Case IH CPX420 (09F-02) - SHIELDS, ENGINE AND RADIATOR - REAR ACCESS DOOR AND SUPPORTS (12) - CHASSIS

1

1982959C4

SUPPORT

Center Basket

1шт.

2

87063C3

SEAL

Cut 406 mm (16 in) from 1330108CX

1шт.

3

1260025C5

SUPPORT

Shield, Outer

2шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

1шт.

6

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

10шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

9

393220A1

SHIELD

Upper, Radiator

1шт.

10

281-10810

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

4шт.

11

195388A1

SUPPORT

Lower, Oil Cooler

1шт.

12

495-21044

WASHER,3/8"

5шт.

13

87076C2

SUPPORT

Tube

2шт.

14

86952C1

CLIP,ELECTRICAL

Screen Support

2шт.

15

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

17

1988797C2

GUARD

Center Rear Deck

1шт.

18

87408511

HANDLE

Retractable, Inc. 18A - 18D

1шт.

18a

87408512

HANDLE

1шт.

18b

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

18c

495-21031

WASHER,1/4"

4шт.

18d

87408513

SPRING

2шт.

19

227202A2

LARGE PLATE

PLATE, LARGE Bolster Seal

1шт.

20

1302758C1

PLUG

89 mm OD, Clean Out Hole

1шт.

23

1260123C2

CHANNEL

Hinge Support

1шт.

24

227201A1

SUPPORT

Radiator Hood

2шт.

25

215720C1

HINGE

Shield

2шт.

26

495-11034

WASHER,5/16", SAE

4шт.

27

1990372C1

GUARD

Rear Deck

1шт.

28

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

5шт.

29

87061C1

SEAL

Deck Shields, 1651 mm (65 in), Cut From 195917C1

4шт.

30

87060C1

SEAL

Center Rear Deck Shield, 953 mm (37-1/2 in), Cut From 87084C1

2шт.

31

1984246C1

GASKET

Upper and Lower Shields, 267 mm (10-1/2 in), Cut From 87084C1

4шт.

32

1545942C1

SEAL

552 mm (21-3/4 in), Cut From 1264566C1

2шт.

33

1301229C1

SEAL

646 mm (25-7/16 in), Cut From 195917C1

2шт.

35

1545941C1

SEAL

838 mm (33 in), Cut From 73215C1

1шт.

35

246543A1

GUARD

608 mm (24 in), Cut From 73215C1

1шт.

36

1278109C1

STRIP

Radiator Support Channel on Main Frame, 376 mm (14-3/4 in), Cut From 1264566C1

2шт.

37

1546226C1

SEAL

Main Frame Tube, 160 mm (6-5/16 in), Cut From 1264565C1

2шт.

38

1990392C2

CONDUIT

Left Hand Rear

1шт.

39

1990393C2

CONDUIT

Right Hand Rear

1шт.

40

1990376C3

SUPPORT

Rear, Basket

1шт.

41

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

42

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

43

425-108

NUT,1/2" - 13, Gr 5

6шт.

44

353-402

PLUG,Dome, .375" hole, Nylon

6шт.
