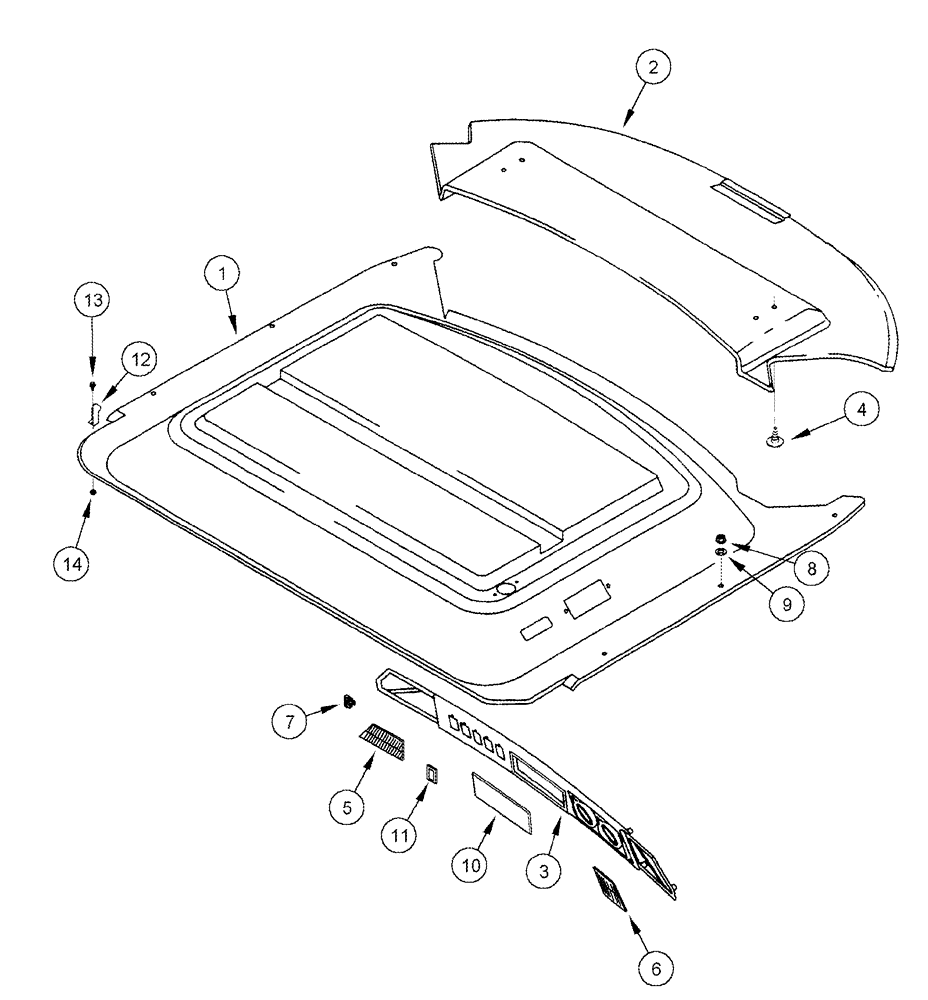

Запчасти Case IH CPX420 (09E-06) - CAB - HEADLINER (10) - CAB & AIR CONDITIONING

1

121570A8

ROOF LINING

Rear

1шт.

2

121815A3

ROOF LINING

Front

1шт.

3

371552A1

PANEL

1шт.

4

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

12шт.

5

1971229C2

COVER

LH

1шт.

6

1971349C2

COVER

RH

1шт.

7

97058C1

CLIP

4шт.

8

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

6шт.

9

96814C3

WASHER,10mm ID x 22.25mm OD x 2.25mm Thk

6шт.

10

1535219C1

COVER

1шт.

11

245918C1

LENS

Blank Slot

1шт.

12

116812A1

CLIP

2шт.

13

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.
