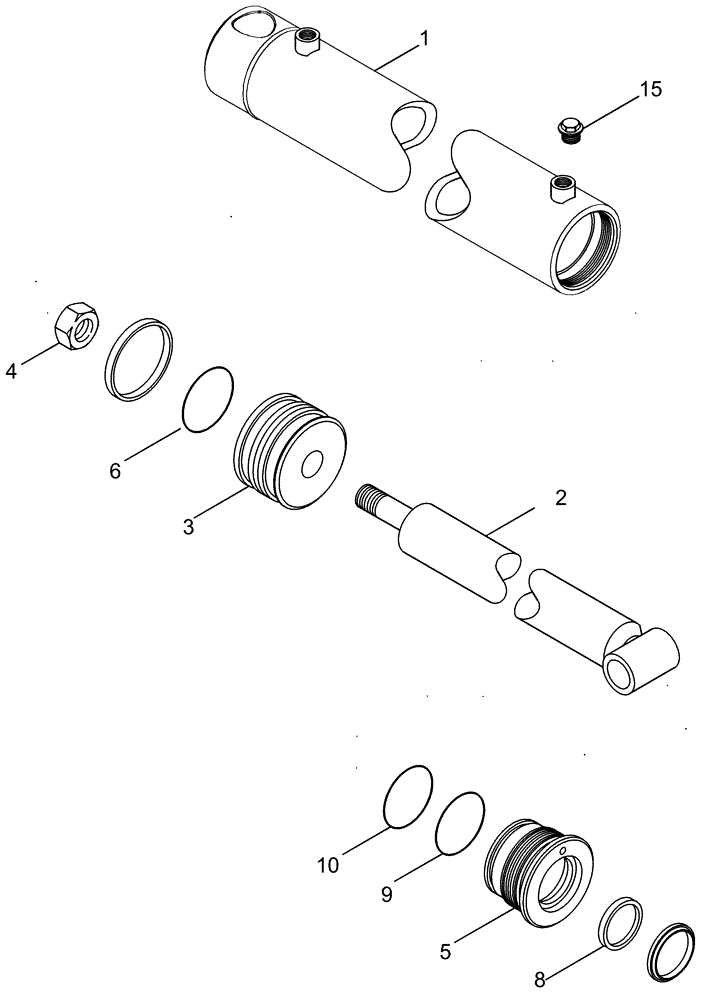

Запчасти Case IH CPX420 (08-48) - DRUM SPREAD CYLINDER ASSEMBLY - ASN Y6T011031 (07) - HYDRAULICS

87272672

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 373.5mm Stroke

Drum Spread, Inc. 1 - 15

2шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

87385487

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Nut

1шт.

5

NSS

NOT SOLD SEPARAT

Threaded Head

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

8

NSS

NOT SOLD SEPARAT

Piston Seal

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Back-Up Washer

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Rod Seal Un-Loaded

2шт.

14

NSS

NOT SOLD SEPARAT

Canned Wiper

2шт.

15

NSS

NOT SOLD SEPARAT

Plug

2шт.

87384988

SEAL KIT

Kit

1шт.
