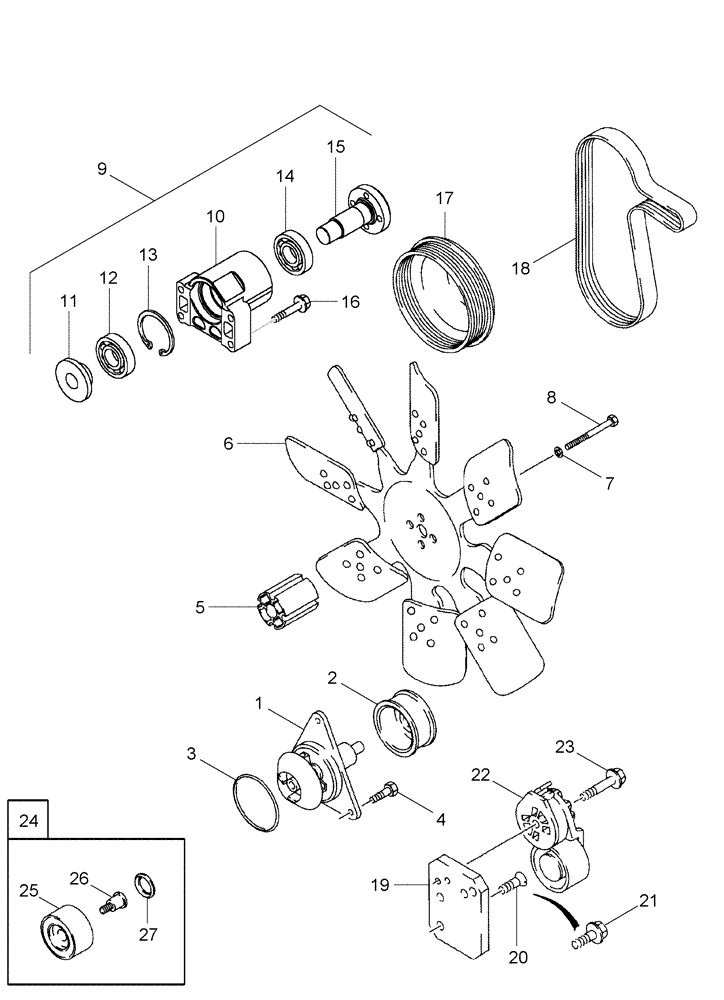

Запчасти Case IH CPX420 (02-03) - WATER PUMP SYSTEM (01) - ENGINE

J800976

WATER PUMP

Includes 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

CPX420 (5/05-8/06)

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

1шт.

4

J934054

FLANGE BOLT

M8 x 28

3шт.

5

A184548

SPACER,Fan, 89/90mm Thk

90 mm

1шт.

6

1547933C1

FAN

1шт.

7

814-10125

BOLT,Hex, M10 x 1.5 x 125mm, Cl 8.8

4шт.

8

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

9

87408931

SUPPORT

Includes 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

Support, Fan

1шт.

11

J931016

RETAINER

Fan Hub

1шт.

12

J933440

BALL BEARING

1шт.

13

100-21244

SNAP RING,2.44", Int, #244

1шт.

14

NSS

NOT SOLD SEPARAT

Bearing, Ball

1шт.

15

J934104

HUB

Fan

1шт.

16

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

4шт.

17

J914462

PULLEY,163mm OD

1шт.

18

J911567

BELT,27.92mm W x 1701.8mm L, 8 Ribs

1шт.

19

J925188

SUPPORT

1шт.

20

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

21

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

22

J936203

BELT TENSIONER

1шт.

23

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

1шт.

24

A77817

KIT

Tensioner, Inc. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

Pulley

1шт.

26

NSS

NOT SOLD SEPARAT

Bolt

1шт.

27

NSS

NOT SOLD SEPARAT

Seal

1шт.
