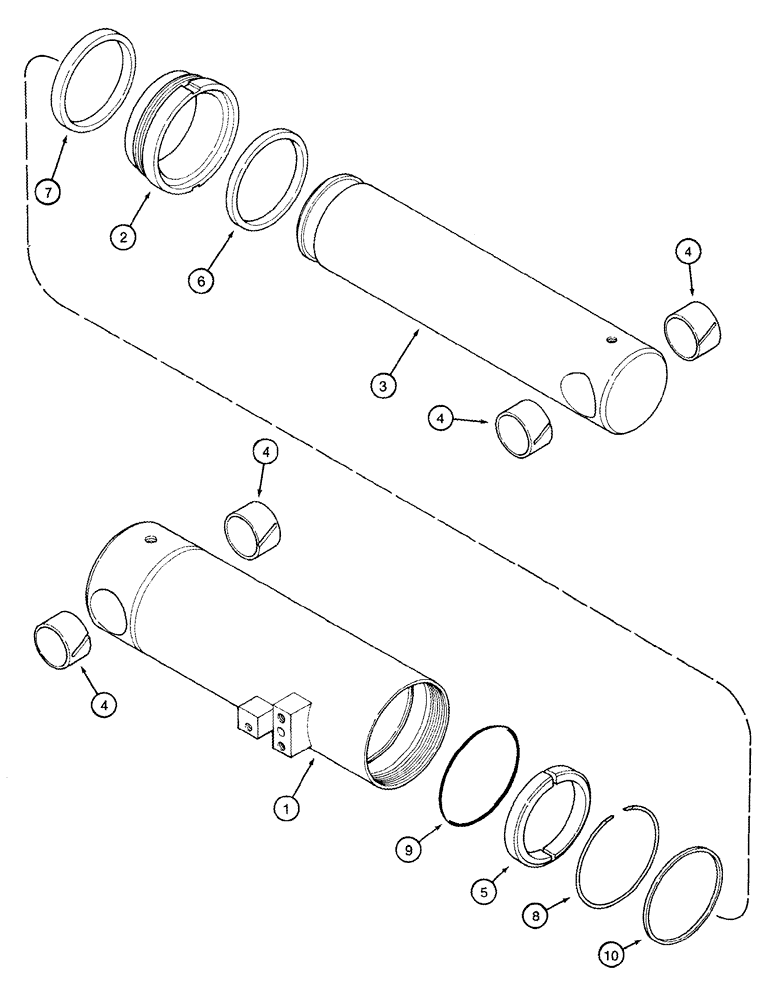

Запчасти Case IH CPX420 (08-45) - DRUM TILT CYLINDER ASSEMBLY - 5 ROW NARROW - BSN Y6T011031 (07) - HYDRAULICS

107785A1

CYLINDER ASSY.

Drum Tilt, 102 ID x 185 mm strk, Inc. 1 - 10

1шт.

1

107840A1

TUBE

1шт.

2

1980306C1

GLAND

1шт.

3

1346280C1

PISTON ROD

1шт.

4

1288568C1

BUSHING,44.5mm ID x 47.65mm OD x 28mm L

4шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

1980307C1

SEAL KIT

Inc. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Wiper

1шт.

7

NSS

NOT SOLD SEPARAT

Seal

1шт.

8

NSS

NOT SOLD SEPARAT

Wire

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring

1шт.

1982991C2

PIN

Cylinder, Lower, Not Illustrated

1шт.

1983053C2

PIN

Cylinder, Upper, Not Illustrated

1шт.
