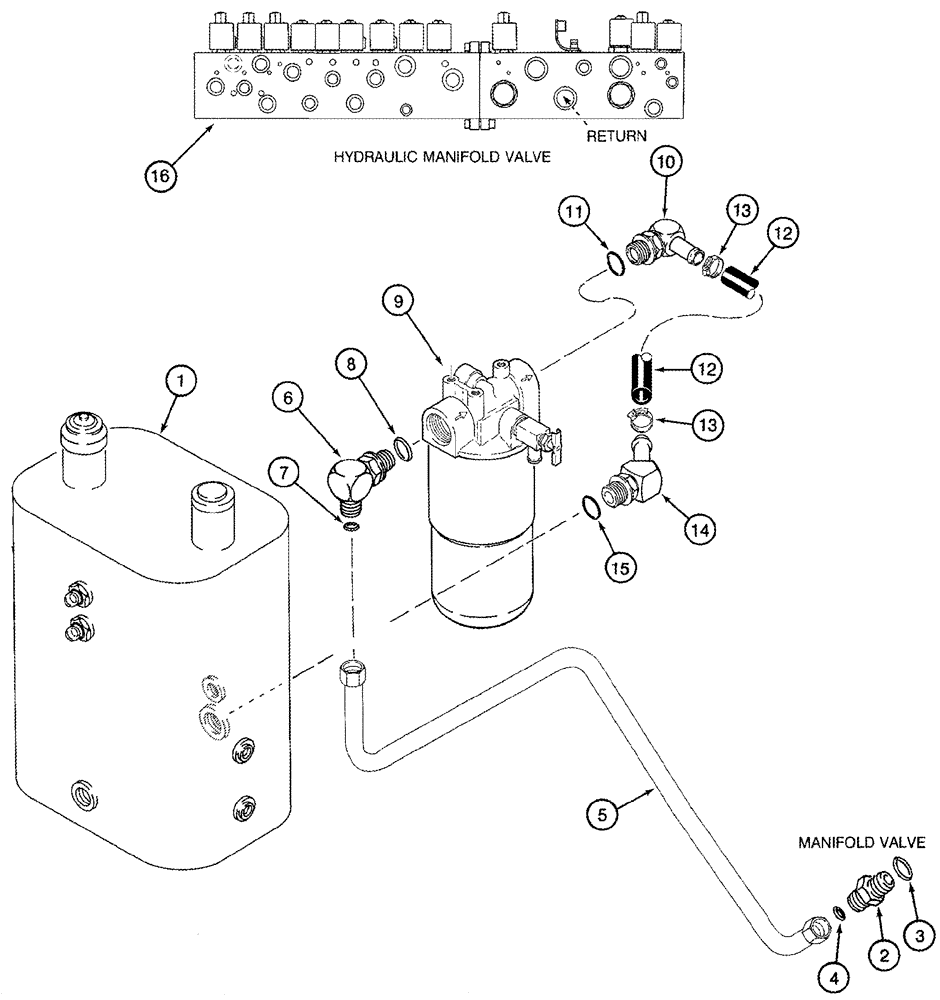

Запчасти Case IH CPX420 (08-44) - HYDRAULIC RETURN SYSTEM TO RESERVOIR (07) - HYDRAULICS

1

87348163

TANK, HYDRAULIC OIL

1шт.

See Figure 08-01

1шт.

2

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

Inc. 3, 4

1шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

5

1988942C1

TUBE

1шт.

6

201-309

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-5/8" - 12 Male ORB

Inc. 7, 8

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

8

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

9

87784C92

HYDRAULIC OIL FILTER

1шт.

See Figure 08-03

1шт.

10

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Includes 11

1шт.

11

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

12

184618A1

FLEXIBLE HOSE

305 mm (12-1/8 in), Cut From 1541953C1

1шт.

13

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

2шт.

14

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl. 15

1шт.

15

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

16

REF

INSTRUCTION

Valve, Manifold

1шт.

See Figure(s) 08-17 - 08-20

1шт.
