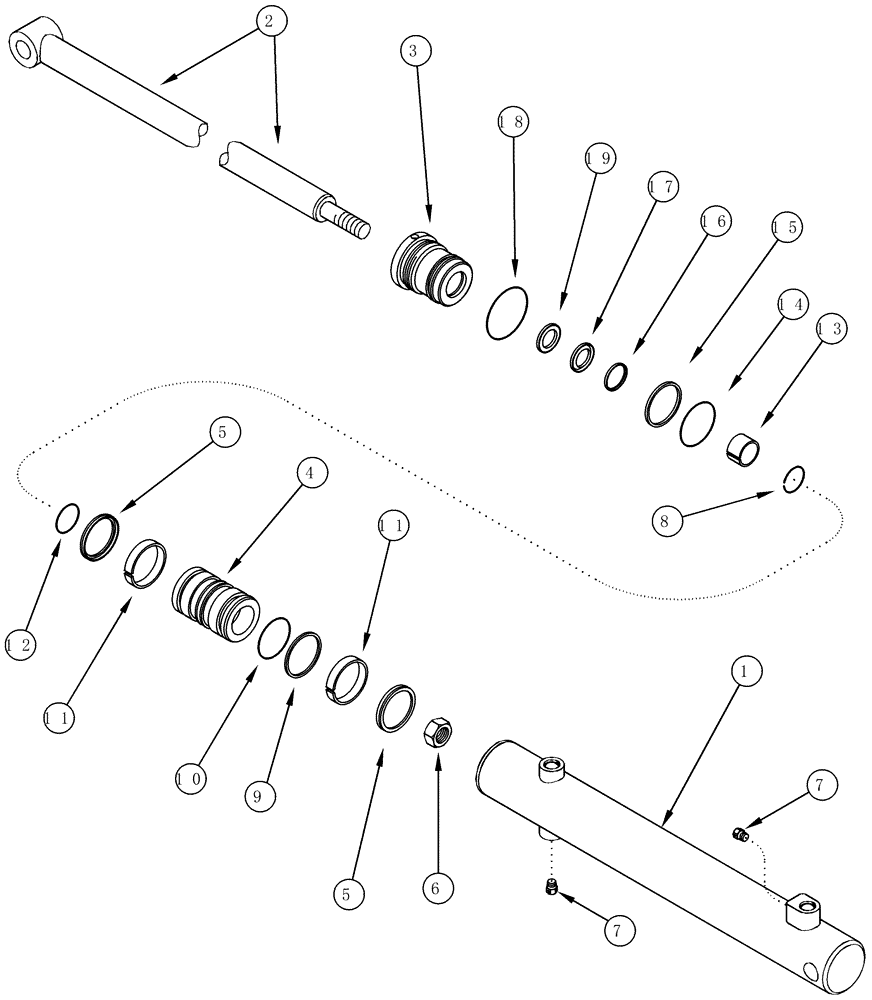

Запчасти Case IH CPX420 (08-42) - BASKET DOOR CYLINDER - BSN Y6T011031 (07) - HYDRAULICS

87444980

CYLINDER ASSY.

Basket Door, Inc. 1 - 21

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE, Cylinder

1шт.

2

448309A1

ROD

Cylinder

1шт.

3

412327A1

GLAND

1шт.

4

348468A1

PISTON

1шт.

5

NSS

NOT SOLD SEPARAT

RING, Piston

2шт.

6

232-46114

LOCK NUT,7/8"-14, GC

1шт.

7

87413032

FITTING

Bleeder, 1/8 NPT

2шт.

8

102-23175

SNAP RING,#175, Int, Spiral

No. 175

1шт.

387543A1

SEAL KIT

Kit, Seal Replacement, Inc. 9 - 19

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, Piston

1шт.

10

NSS

NOT SOLD SEPARAT

EXPANDER

1шт.

11

NSS

NOT SOLD SEPARAT

RING, Wear

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

133877A1

RING

Wear

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER, Backup

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL

1шт.

17

NSS

NOT SOLD SEPARAT

CUP

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING

1шт.

19

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

SEALRING Wiper

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL, Step

1шт.

21

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

(Not Illustrated)

1шт.
