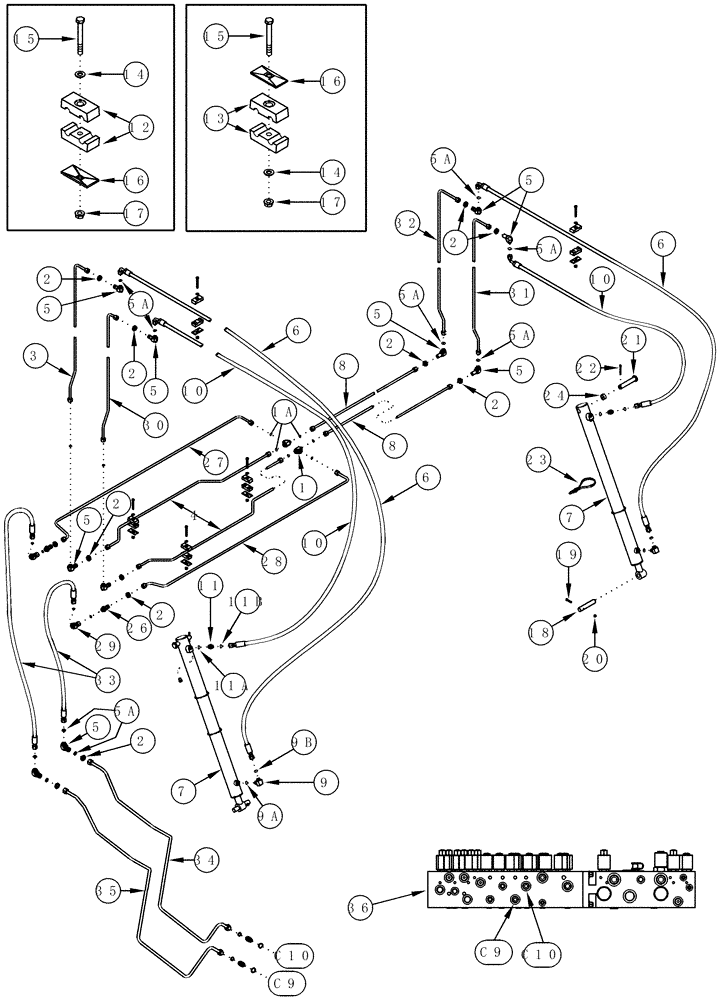

Запчасти Case IH CPX420 (08-41) - BASKET DOOR CYLINDER SYSTEM (07) - HYDRAULICS

1

201-409

TEE,13/16"-16 ORFS

1/2 orfs, Inc. 1A

2шт.

1a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

2

201-903

TUBE NUT,Blkhd, 13/16"-16

1/2 tube

10шт.

3

416294A1

TUBE

Basket Door Front Close

4шт.

4

87428676

TUBE,12.70 mm OD x 1510 mm L

Basket Door Front Bottom

2шт.

5

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1-1/4 fc x 1/16 Or, Inc. 5A

8шт.

5a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

6

319082A1

HOSE

Basket Door Close

2шт.

7

87444980

CYLINDER ASSY.

Basket Door, Serial Range: -Y6T011031

2шт.

See Figure 08-36

1шт.

7

87272674

CYLINDER,Double Acting, 38.1mm Rod, 892.1mm Stroke

Basket Door, Start Serial: Y6T011031

2шт.

See Figure 08-36A

1шт.

8

405367A1

TUBE

Basket Door Rear Bottom

2шт.

9

87444981

ELBOW

Rod End Port, 13/16 fc x 3/4 Or, Inc. 9A, 9B

2шт.

9a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9b

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

319081A2

HOSE

Basket Door Open

2шт.

11

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 11A, 11B

2шт.

11a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

1546025C1

CLAMP

2 piece

4шт.

13

1546027C1

CLAMP

4шт.

14

495-11034

WASHER,5/16", SAE

6шт.

15

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

6шт.

16

1347127C1

PLATE

6шт.

17

425-285

FLANGE NUT,Flg, 5/16"-18, G5

6шт.

18

259519A2

PIN

Basket Door Cylinder Lower

2шт.

19

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

20

231-1446

NUT,3/8" - 16, Gr 5

2шт.

21

277500A1

PIN

1 x 5 in

2шт.

22

432-1636

COTTER PIN,1/4" x 2 1/4"

2шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

24

623907R1

SPACER,1" Pipe x 5/8"

1 ID x 5/8

2шт.

25

345-56

LUBRICANT

Loctite 767

2шт.

26

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes 26A

2шт.

26a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

27

87428677

TUBE,.5" OD

Basket Door Bottom Close

1шт.

28

87428678

TUBE,.5" OD

Basket Door Bottom Open

1шт.

29

87013112

ELBOW,45 Degree, 13/16"-16 x 13/16"-16 Fem Sw

Inc. 29A

2шт.

29a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

416293A1

TUBE

Basket Door Front Open

1шт.

31

416295A1

TUBE

Basket Door Rear Open

1шт.

32

416296A1

TUBE

Basket Door Rear Close

1шт.

33

1984271C1

HOSE,12.7mm ID x 2500mm L

Basket Door Open and Close

2шт.

34

1988937C2

TUBE

Door Open

1шт.

35

1988936C2

TUBE

Door Close

1шт.

36

REF

INSTRUCTION

Manifold Valve

1шт.

See Figure(s) 08-17 - 08-20

1шт.
