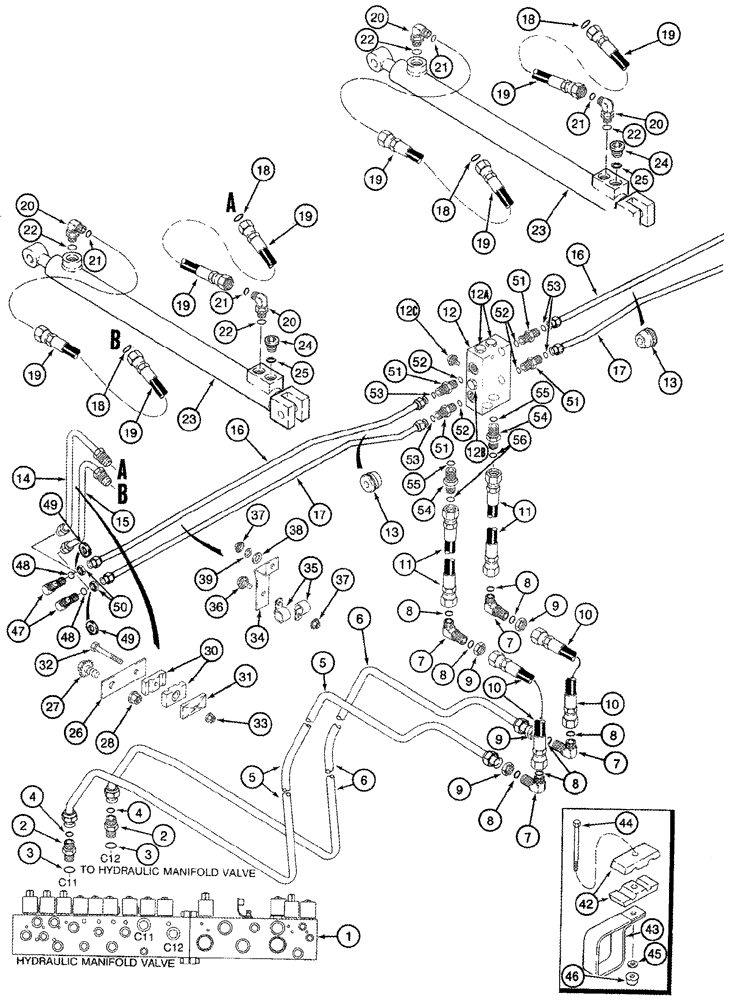

Запчасти Case IH CPX420 (08-36) - COMPACTOR CYLINDER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Manifold, See Figure(s) 08-20 - 08-23

1шт.

2

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 3, 4

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

1988940C1

TUBE,0.625" OD

1шт.

6

1988941C1

TUBE

1шт.

7

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Includes 8

4шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

201-919

BHD LOCK NUT,1" - 14

4шт.

10

1984269C1

HOSE,15.88mm ID x 2500mm L

2500 mm (98-7/16 in)

2шт.

11

249148A1

HOSE

1910 mm (75-1/4 in)

2шт.

12

247579A2

VALVE

Compactor Divider, Inc. 12A, 12B

1шт.

12a

247697A2

VALVE, CHECK,3/4" - 16 ORB

Inc. 1542831C1

2шт.

1542831C1

SEAL KIT

1шт.

12b

247698A1

VALVE

Flow Control, Inc. 247675A1

1шт.

247675A1

SEAL KIT

1шт.

12c

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

13

240759A1

GROMMET

4шт.

14

224071A1

HYD TUBE,0.5" OD

Outer, Upper

2шт.

15

184846A1

HYD TUBE

Outer, Lower

2шт.

16

248137A1

HYD TUBE,0.5" OD, 1464 mm Length

Cylinder Supply

2шт.

17

248136A1

HYD TUBE,0.5" OD, 1464 mm Length

Cylinder Return

2шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

19

1984267C1

HOSE,12.7mm ID x 625mm L

625 mm (24-5/8 in)

4шт.

20

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 21, 22

4шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

1343726C3

CYLINDER ASSY.,Double Acting, 25.3mm Rod, 501.3mm Stroke

Basket Compactor, 38 ID x 501 mm strk

2шт.

See Figure 08-31

1шт.

24

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

224604A1

PLATE

Clamp Mounting

2шт.

27

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

28

231-5146

FLANGE NUT,3/8"-16

2шт.

30

1546025C1

CLAMP

2 piece

2шт.

31

1347127C1

PLATE

2шт.

32

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

2шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

34

1349876C1

SUPPORT

Compactor Tube

2шт.

35

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

4шт.

36

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

2шт.

37

231-5146

FLANGE NUT,3/8"-16

4шт.

38

495-21044

WASHER,3/8"

2шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

42

1546026C1

CLAMP

2шт.

43

1301387C2

CLIP

2 in ID, Square

1шт.

44

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

45

495-21038

WASHER,5/16"

1шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

47

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1-1/4 fc x 1/16-12 Or, Inc. 48

4шт.

48

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

49

895-11020

WASHER,M20 x 37 x 3

8шт.

50

201-903

TUBE NUT,Blkhd, 13/16"-16

4шт.

51

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 52, 53

4шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

53

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

54

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Includes 55, 56

2шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

56

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
