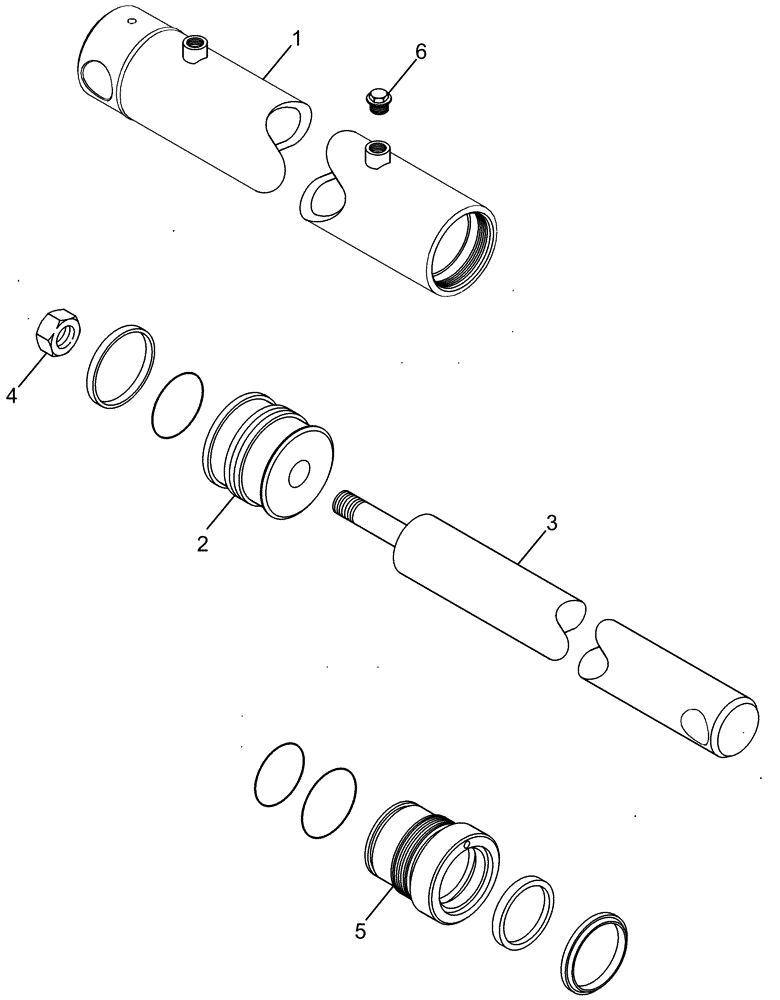

Запчасти Case IH CPX420 (08-35) - BASKET LIFT MASTER CYLINDER ASSEMBLY - ASN Y6T011031 (07) - HYDRAULICS

87272660

CYLINDER,Double Acting, 63.4mm Rod, 1828.8mm Stroke

Basket Lift, Inc. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

NSS

NOT SOLD SEPARAT

Piston

1шт.

3

NSS

NOT SOLD SEPARAT

Rod

1шт.

4

NSS

NOT SOLD SEPARAT

Lock Nut

1шт.

5

NSS

NOT SOLD SEPARAT

Head

1шт.

6

NSS

NOT SOLD SEPARAT

Plug

2шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

9

NSS

NOT SOLD SEPARAT

Back-Up Washer

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

13

NSS

NOT SOLD SEPARAT

Rod Seal Loaded

1шт.

14

NSS

NOT SOLD SEPARAT

Canned Rod Wiper

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

16

NSS

NOT SOLD SEPARAT

Seal

1шт.

87384984

SEAL KIT

Kit

1шт.
