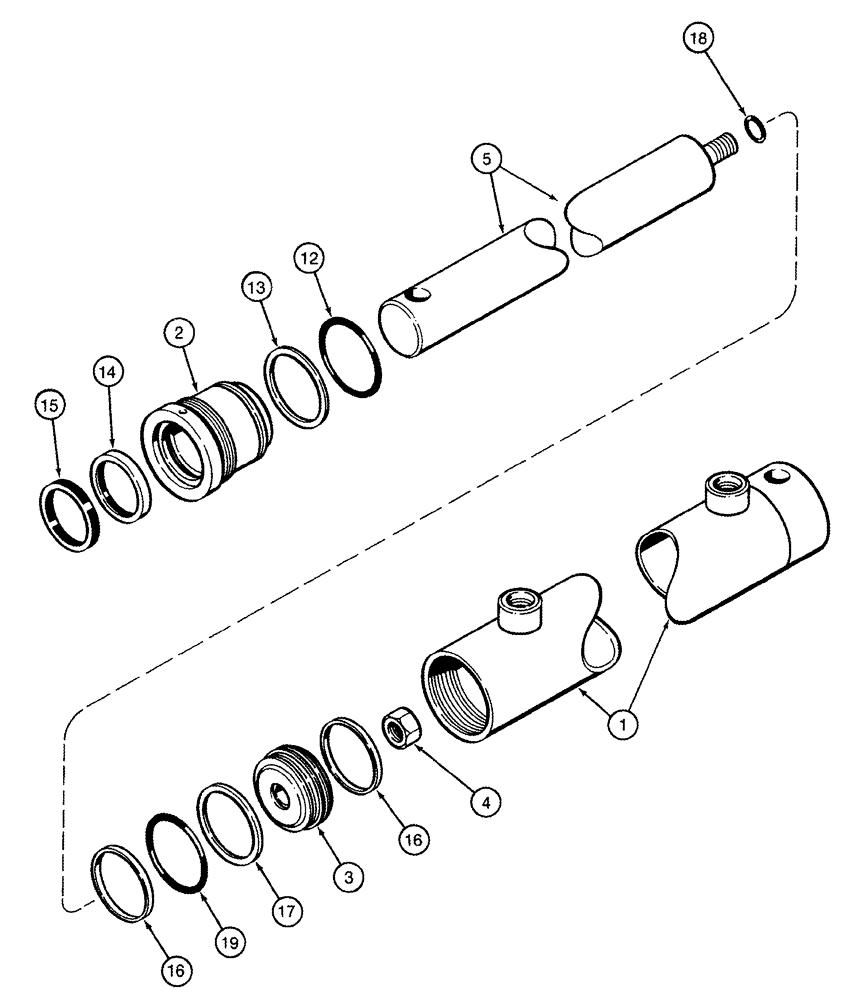

Запчасти Case IH CPX420 (08-34) - BASKET LIFT MASTER CYLINDER ASSEMBLY - BSN Y6T011031 (07) - HYDRAULICS

85183C1

CYLINDER ASSY.

89 ID x 1829 mm strk, Basket Lift, Inc. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

1957766C1

CYLINDER END CAP

1шт.

3

1957765C1

JACK PISTON

Cylinder

1шт.

4

232-46314

LOCK NUT,7/8"-14, GC

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

1957767C1

SEAL KIT

Inc. 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Wiper

1шт.

16

NSS

NOT SOLD SEPARAT

Ring

2шт.

17

NSS

NOT SOLD SEPARAT

Seal

1шт.

18

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

19

NSS

NOT SOLD SEPARAT

Expander

1шт.
