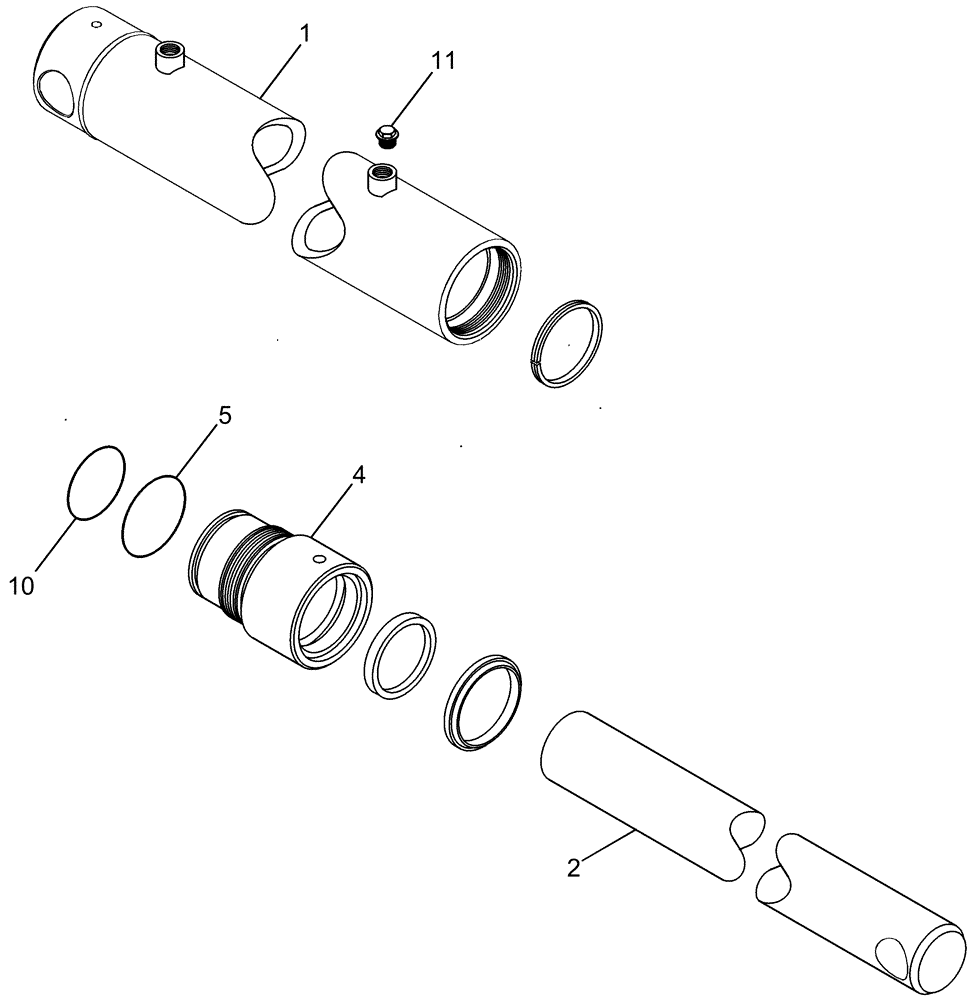

Запчасти Case IH CPX420 (08-33) - BASKET LIFT SLAVE CYLINDER ASSEMBLY - ASN Y6T011031 (07) - HYDRAULICS

87272661

CYLINDER,Double Acting, 63.5mm Rod, 1828.8mm Stroke

Basket Lift, Inc.1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Rod

1шт.

3

NSS

NOT SOLD SEPARAT

Piston Washer

1шт.

4

NSS

NOT SOLD SEPARAT

Head

1шт.

5

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

6

NSS

NOT SOLD SEPARAT

Back-Up Washer

1шт.

7

NSS

NOT SOLD SEPARAT

Wear Ring

2шт.

8

NSS

NOT SOLD SEPARAT

Un-Loaded Rod Seal

1шт.

9

NSS

NOT SOLD SEPARAT

Canned Rod Wiper

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Plug

2шт.

87384985

SEAL KIT

Kit

1шт.
