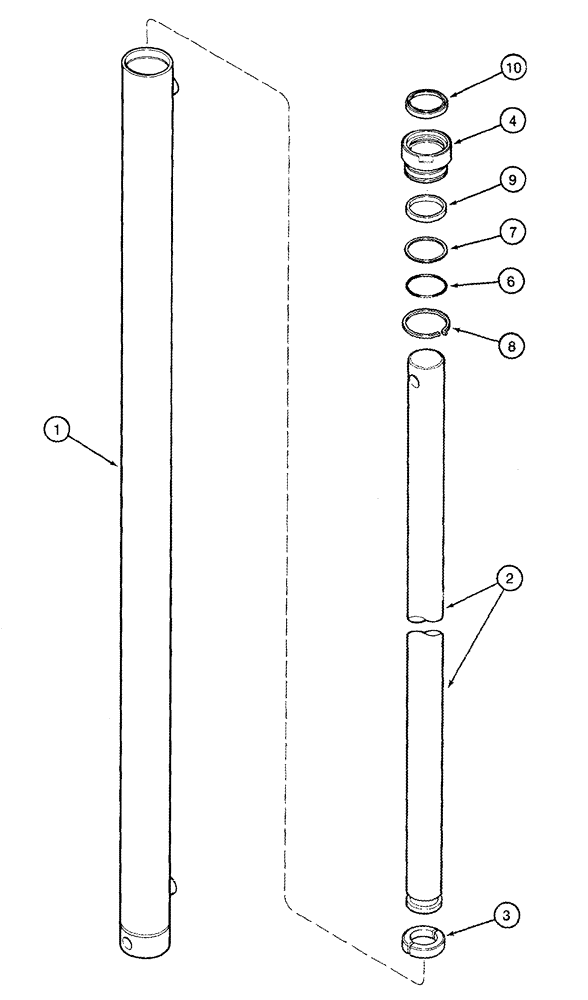

Запчасти Case IH CPX420 (08-32) - BASKET LIFT SLAVE CYLINDER ASSEMBLY - BSN Y6T011031 (07) - HYDRAULICS

85184C1

CYLINDER ASSY.

64 ID x 1829 mm strk, Basket Lift, Inc.1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

1543206C1

PISTON ROD

Cylinder

1шт.

3

1957762C1

PISTON

2 Piece

1шт.

4

1957763C1

JACK HEAD

1шт.

1957764C1

SEAL KIT

Seal, Inc. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Ring

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Wiper

1шт.
