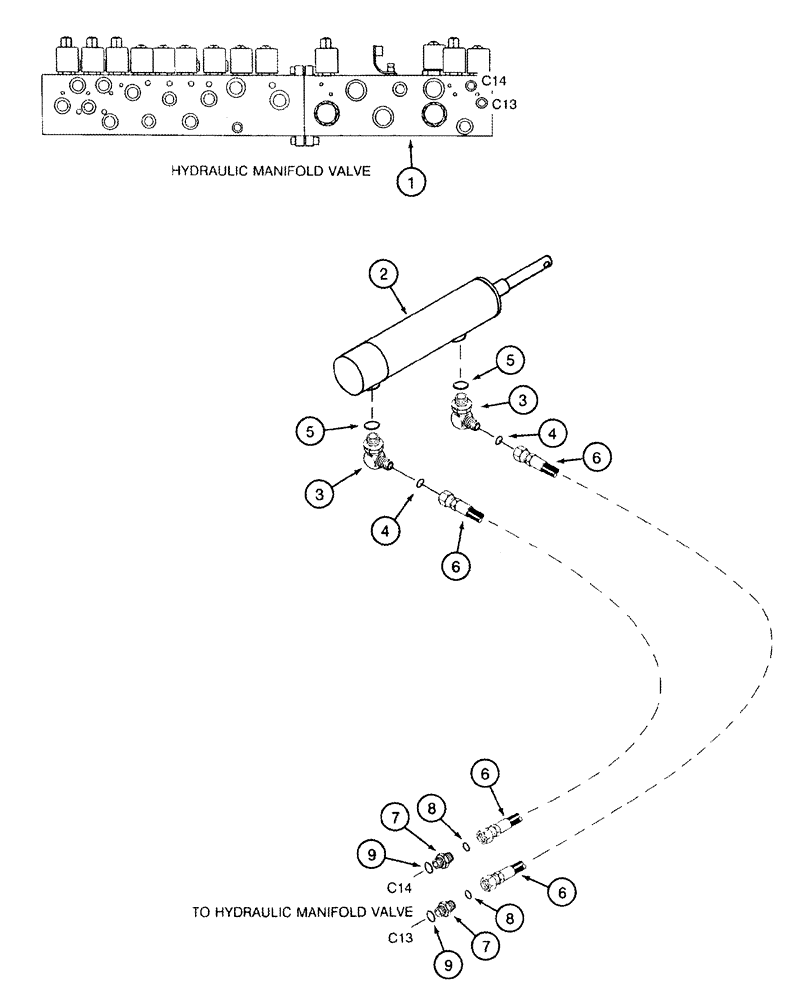

Запчасти Case IH CPX420 (08-28) - FAN ENGAGEMENT CYLINDER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Manifold

1шт.

See Figure(s) 08-17 - 08-20

1шт.

2

133405C92

CYLINDER

Fan Clutch, 51 ID x 63 mm strk, Serial Range: -Y6T011117

1шт.

See Figure 08-26

1шт.

2

87337239R

REMAN-HYD CYLINDER

CPX420 CASE IH COTTON PICKER, Fan Clutch, 51 ID x 63 mm strk., Serial Range: Y6T011117 (5/05-8/06), Reman for New PN 133405C92

1шт.

2

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

2

87391858

CYLINDER

Fan Clutch, Start Serial: Y6T011117

1шт.

See Figure 08-26A

1шт.

2

87391858C

CORE-HYD CYLINDER

Return Number, CYLINDER CLUTCH

1шт.

2

87449896R

REMAN-HYD CYLINDER

Remanufactured Clutch Cylinder

1шт.

2

87449896C

CORE-HYD CYLINDER

Return Number, CYLINDER CLUTCH

1шт.

3

201-328

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

Incl 4, 5

2шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

1990117C1

HOSE

1620 mm (63-3/4 in), Fan Clutch Cylinder Engage and Disengage

2шт.

7

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Inc. 8, 9

2шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
