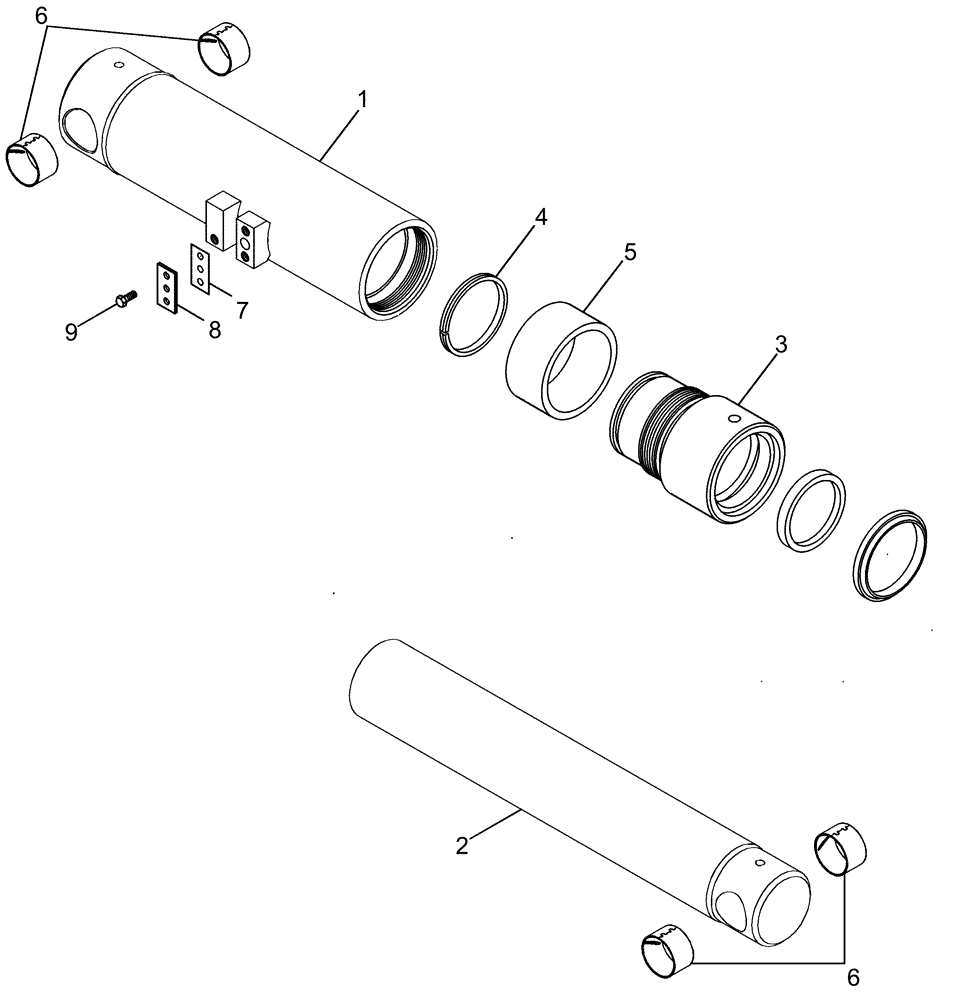

Запчасти Case IH CPX420 (08-27) - DRUM LIFT CYLINDER ASSEMBLY - 4 ROW WIDE - ASN Y6T011031 (07) - HYDRAULICS

87272665

HYDRAULIC CYLINDER,88.9mm Rod, 233.6mm Stroke

Drum Lift, 98 ID x 235 mm strk, Inc. 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

87385483

ROD

1шт.

3

NSS

NOT SOLD SEPARAT

Head

1шт.

4

NSS

NOT SOLD SEPARAT

Split Piston Washer

1шт.

5

NSS

NOT SOLD SEPARAT

Spacer

1шт.

6

NSS

NOT SOLD SEPARAT

Bushing

4шт.

7

NSS

NOT SOLD SEPARAT

Rubber Cover

1шт.

8

NSS

NOT SOLD SEPARAT

Steel Cover

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt

3шт.

1980307C1

SEAL KIT

1шт.
